- Page 1 ECO 24V 3A S, ECO 24V 5A M, ECO 24V 10A M...
- Page 2 351-195 Publication date 2022-05-03...
-
Page 3: Table Of Contents
Table of Contents 1. About ..........................5 1.1. Name, article number and e-number ................. 5 1.2. Revisions and the edition of this document ..............5 2. Component overviews ......................6 2.1. Component overview ....................6 2.2. Component overview ....................6 3. - Page 4 8.8.6. Designed and produced by: Milleteknik AB ........... 24 8.9. Batteries - recommended, not included ..............24 8.9.1......................... 24 8.9.2. 2.3 Ah, 12 V AGM battery ................24 8.9.3. 4.5 Ah 12 V AGM battery ................25 8.9.4. Reserve operating times for different alarm classes - overview ...... 25...
-
Page 5: About
5213650 1.2. Revisions and the edition of this document The current and most recently published edition of this document is available at www.milleteknik.se. The validity of this document can not be guaranteed, as new editions are published without prior notice. -
Page 6: Component Overviews
2. COMPONENT OVERVIEWS 2.1. Component overview Table 1. Component overview Number Explanation Cabinet in powder-coated sheet metal. The power supply, location and type vary with configuration. Motherboard. Cable entries. Space for batteries. 2.2. Component overview... -
Page 7: Enclosures
Table 2. Component overview Number Explanation Cabinet in powder-coated sheet metal. The power supply, location and type vary with configuration. Motherboard. Cable entries. Space for batteries. 3. ENCLOSURES 3.1. Wall mounting Use four screws suitable for the wall to mount the cabinet. The distance between the screw head and the wall should be 1.5–2 mm. -
Page 8: Connection Of Batteries
4. CONNECTION OF BATTERIES 4.1. Connecting batteries in S and M Mains voltage should be disconnected when connecting batteries Slide batteries from the side with the battery terminals toward the center. Only use new batteries during installation and battery replacement. Connect fuses on batteries. -
Page 9: Connection Of 2 Batteries Eco S 12 V
4.2. Connection of 2 batteries ECO S 12 V Figure 2. Connection of two batteries with fuse Table 3. Connection of 2 batteries ECO 12 V Letter Explanation The fuse cable is connected to the positive terminal of the battery. Plus cable, which has double pins, from the circuit board is connected directly to the battery-plus and one of the fuse's cables. -
Page 10: Connection Of 1 Battery Eco S 12 V
4.3. Connection of 1 battery ECO S 12 V Figure 3. Connecting a battery Table 4. Connection of 1 battery ECO 12 V Letter Explanation Battery cables from the motherboard are connected to the battery plus and minus terminals. Battery fuse is located on the circuit board. NOTE Fuses that come with the device in a bag should not be used when using 1 battery. -
Page 11: Connection Of Battery In Eco S 24 V
4.4. Connection of battery in ECO S 24 V Figure 4. Connection of two 12 V batteries with fuse Table 5. Connection of 2 batteries ECO 24 V Letter Explanation A, B The fuse cable is connected to the positive terminal of one battery and the negative terminal of the other battery. Fuse between positive terminals on the two batteries. -
Page 12: Connect Alarm
Table 6. Connect in this order Explanation Connect alarm. Connect load. Connect batteries Connect mains. 5.1.2. Connect alarm Connect alarm on terminal P3. Table 7. Connect alarm P3 P3: 4-6 Explanation Sum-alarm P3: 4 P3: 5 P3: 6 5.1.3. Connect load... -
Page 13: Connect Mains
Table 8. Load connections Circuit board number Explanation P2: 1 Connection for load 1 + P2: 2 Connection for load 1 - P2: 3 Connection for load 2 +. P2: 4 Connection for load 2 -. MAX CURRENT Maximum current must not be exceeded. Maximum current is indicated on the CE- marking on the unit. -
Page 14: Control Alarm Limit
Unit Fuse Type Explanation All units T2,5A Mains fuse ECO 24V 3A S. F2, F6 Load fuse + ECO 12V 5A S. ECO 24V 5A M. F2, F6 Load fuse + ECO 12V 10A M. ECO 24V 10A M. F2, F6... -
Page 15: Alarm Displayed On Cabinet Door
Step Explanation Screw the mains cable into the terminal block and attach the terminal block to the motherboard. Switch on mains voltage. The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. -
Page 16: Eco Product Sheet

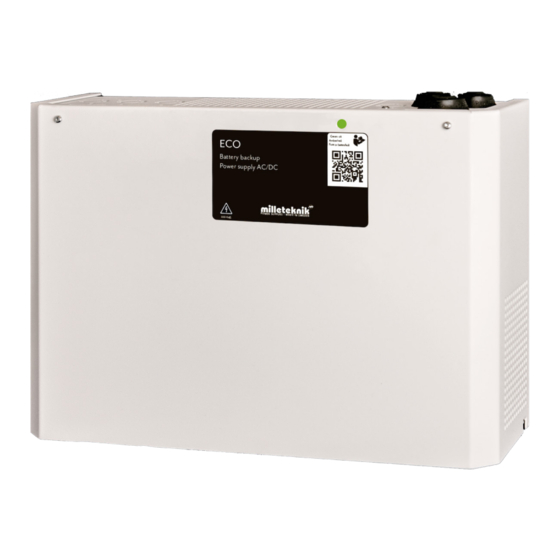

8. ECO PRODUCT SHEET 8.1. Product sheet / technical data Figure 6. ECO S ECO S The unit must be wall-mounted. -
Page 17: Name, Article Number And E-Number
Figure 7. ECO M ECO M The unit must be wall-mounted. 8.1.1. Name, article number and e-number Name Article number E-number (SV) ECO 24V 3A S SM01C10124P030 5213516 ECO 12V 10A M ME01C10112P100 5213519 ECO 24V 5A M ME01C10124P050 5213521... -
Page 18: Fixed Installation
Access control system Lock system Smoke hatches 8.1.4. Fixed installation The product is intended for fixed installation. The battery backup must be installed by a qualified installer. 8.1.5. Test before installation of 230 V "Cold start" means that the battery backup can be commissioned with only the batteries connected without the battery backup being connected to 230 V. -
Page 19: Circuit Boards - Technical Data
Unit Fuse Type Explanation All units T2,5A Mains fuse ECO 24V 3A S. F2, F6 Load fuse + ECO 12V 5A S. ECO 24V 5A M. F2, F6 Load fuse + ECO 12V 10A M. ECO 24V 10A M. F2, F6... -
Page 20: Power Supply
8.5. Power supply 8.5.1. Power supply - Technical Data LRS-75-12 ECO 12V 5A S Info Explanation Output voltage 13.6 V Output current 0 A - 6 A Output voltage, ripple 120 mVp-p Overvoltage 13.8 V - 16.2 V Voltage recharge, ripple / current limitation Less than 0.6 Vp-p Efficiency 84.5%... -
Page 21: Power Supply - Technical Data Lrs-75-24
Use of power supplies coming from another source may cause damage not covered by the warranty. Warranty is canceled if power supplies (from a source other than support / designated by support) that are not correctly calibrated are used. 8.5.3. Power supply - Technical Data LRS-75-24 ECO 24V 3A S Info Explanation Output voltage 27.3 V... -
Page 22: Power Supply - Technical Data Rsp-320-24
Info Explanation Humidity range 20% - 90% RH non-condensed The power supply is adapted and calibrated with the battery / hardware of the battery backup. Only power and calibrated power supplies may be used. Contact support when changing power supplies. Use of power supplies coming from another source may cause damage not covered by the warranty. Warranty is canceled if power supplies (from a source other than support / designated by support) that are not correctly calibrated are used. -
Page 23: Enclosures - Technical Data M
10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired. -
Page 24: Support
8.8.5. Country of manufacture Country of manufacture / country of origin is Sweden. For more information, contact your seller. 8.8.6. Designed and produced by: Milleteknik AB 8.9. Batteries - recommended, not included 8.9.1. 8.9.2. 2.3 Ah, 12 V AGM battery Battery type Maintenance-free AGM, lead-acid battery. -
Page 25: Ah 12 V Agm Battery
Table 13. 6+ Design life * battery Article number E-number Article name Terminal Measure. Height Weight per Make width depth piece MT113-12V02-01 5230578 UPLUS 12V 2.3Ah Flat pin 4.8 60x178x35 mm 1.0 kg UPLUS 6+ Design Life bat- tery * Design Life is the durability, this year, for unused battery. Environmental factors such as heat and load affect service life. Batteries that have a durability (+6 Design lLife) of 6+ years usually need to be replaced after 2-3 years. -
Page 26: Address And Contact Details
Table 16. 1125 1716 3858 1002 2250 1230 Table 17. 1398 3600 5574 6000 2100 3252 3490 1146 1770 1908 1002 9. ADDRESS AND CONTACT DETAILS Milleteknik AB Ögärdesvägen 8 B S-433 30 Partille +46 31 340 02 30 www.milleteknik.se... - Page 27 This page is intentionally left blank.
