GLOBIZ 55069D Quick Start Manual

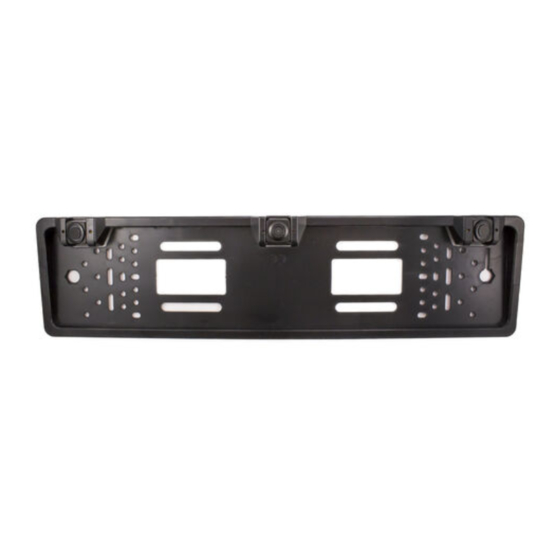

55069D – Reversing camera built into the license plate frame - 12V
Replace your conventional license plate holder with a version that includes a camera. You can
easily insert the cables for the license plate light. The vertical tilt of the camera can be
adjusted over a wide range.

Easy to install

Compatible with all cars

Adjustable camera

Wide angle view

Built-in 4pcs LED

RCA signal cable connecting to the display (the display is not part of the set!)
Power source:
Camera viewing angle: 170°
Resolution:
Set includes:
Size:
Signal cable length:
Color:
Material:
Protection:
Warnings:
- The surface of the sensor must be kept clean!
- When reversing, always check the environment, look around and use the rear-view mirrors!
- Reverse at low speed to react to unexpected situations!
- Have the appliance installed by a specialist!
- Disconnect the cable from the battery (+) terminal before installation.
Wiring:
1. Connect the red connector cable to the control unit to provide power. Connect the red cable
to the 12V (+) terminal of the reversing lamp and the black cable to a ground point or ground
cable. Make sure the wires are properly insulated.
2. Thread the cables of the two sensors through the hole in the license plate frame and snap
the sensors into place. Connect the cables to the appropriate socket (A, D) marked on the
cable.
3. Connect the beeper speaker cable to the socket makred with the speaker icon.
4. You can connect the monitor and the control unit with an RCA cable. Connect the 3-pin
connector to the „MONITOR" jack on the control unit, then one branch of the „Y" cable to
the monitor and the other branch to the RCA cable of the reversing camera.
12V
640 x 480 px
1 pc license plate frame
1 pc reversing camera
1 pc set of cables
545 x 140 x 35 mm
6 m
Black
Plastic
IP67
