GLOBIZ 55069B Quick Start Manual

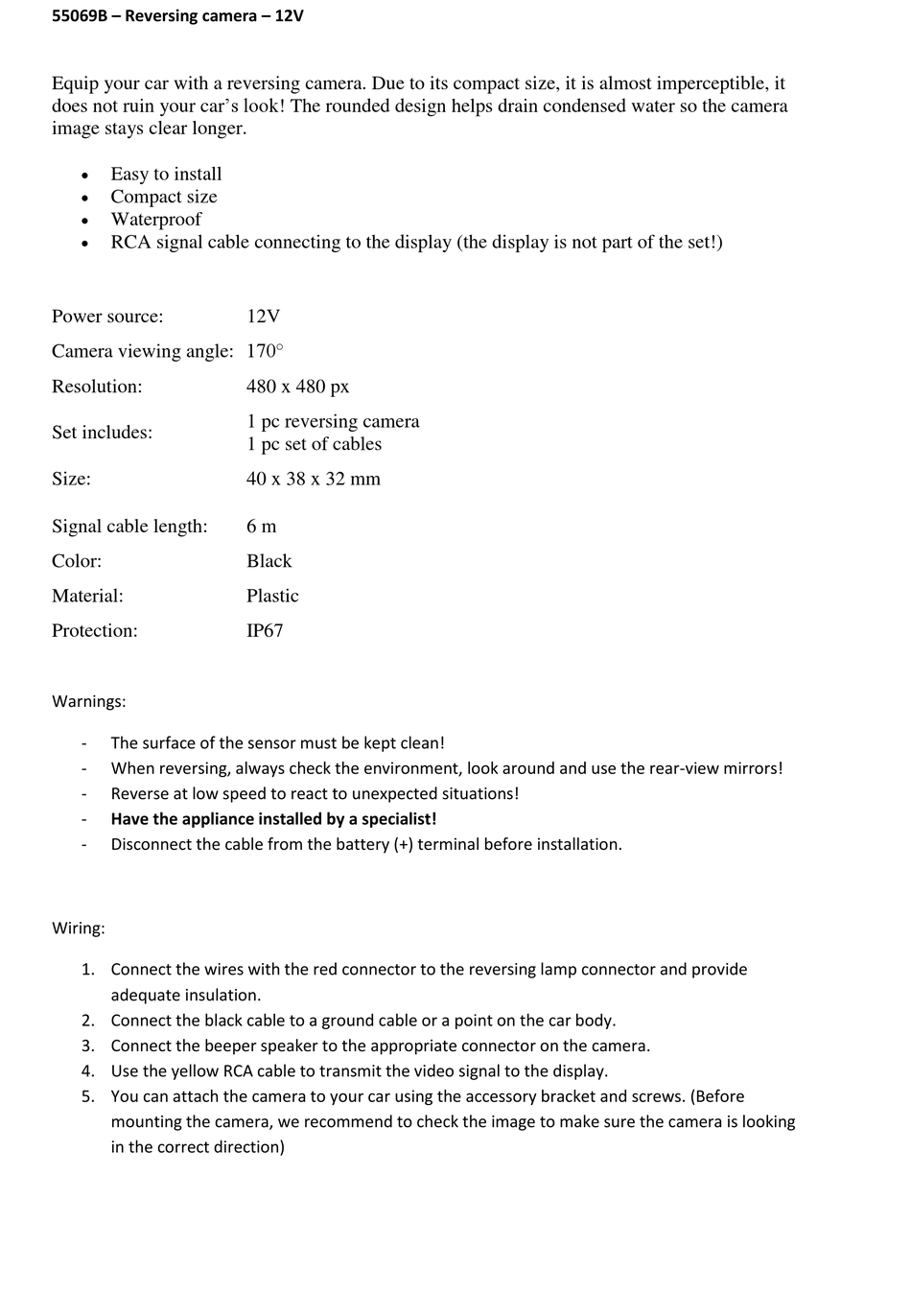

55069B – Reversing camera – 12V
Equip your car with a reversing camera. Due to its compact size, it is almost imperceptible, it
does not ruin your car's look! The rounded design helps drain condensed water so the camera
image stays clear longer.

Easy to install

Compact size

Waterproof

RCA signal cable connecting to the display (the display is not part of the set!)
Power source:
Camera viewing angle: 170°
Resolution:
Set includes:
Size:
Signal cable length:
Color:
Material:
Protection:
Warnings:
- The surface of the sensor must be kept clean!
- When reversing, always check the environment, look around and use the rear-view mirrors!
- Reverse at low speed to react to unexpected situations!
- Have the appliance installed by a specialist!
- Disconnect the cable from the battery (+) terminal before installation.
Wiring:
1. Connect the wires with the red connector to the reversing lamp connector and provide
adequate insulation.
2. Connect the black cable to a ground cable or a point on the car body.
3. Connect the beeper speaker to the appropriate connector on the camera.
4. Use the yellow RCA cable to transmit the video signal to the display.
5. You can attach the camera to your car using the accessory bracket and screws. (Before
mounting the camera, we recommend to check the image to make sure the camera is looking
in the correct direction)
12V
480 x 480 px
1 pc reversing camera
1 pc set of cables
40 x 38 x 32 mm
6 m
Black
Plastic
IP67
