X3
M8 X 30mm
Proceed to secure both arm rests in position by using 4x
Align the base with the bottom of the chair and a x into
X8
M6 X 25mm
Step 1
Flip both base and back suport upside down. Slide back pannel
into position and use supplied screws to firmly secure as
pictured.
Step 2
M6 bolts on each arm.
Step 3
Insert each of the casters into each corresponding leg of the base.
Once completed, insert the cylinder into the base.
Step 4
position.

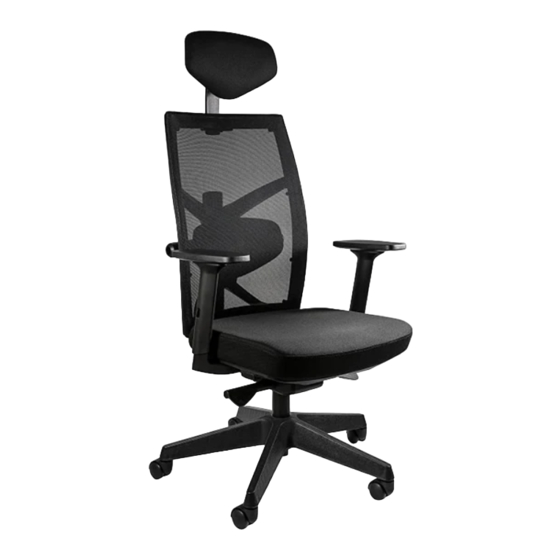

Elite Ergonomic Chair
Installation Instructions
*If headrest is
X8
M6 X 25mm
required
X2
M6 X20mm
Advertisement
Table of Contents
Related Manuals for DESKY Elite
Summary of Contents for DESKY Elite
- Page 1 Elite Ergonomic Chair Installation Instructions M6 X 25mm Step 1 M8 X 30mm Flip both base and back suport upside down. Slide back pannel into position and use supplied screws to firmly secure as pictured. Step 2 M6 X 25mm Proceed to secure both arm rests in position by using 4x M6 bolts on each arm.
- Page 2 Elite Ergonomic Chair User Instructions Seat Height Adjustable Flip up lever on right side to raise or lower seat. Adjust so that your feet are supported adequately on the floor. Multi-Position Tilt Lock Recline to desired position, and turn lever anti-clockwise to lock. Turn lever clockwise to release tilt-lock.
