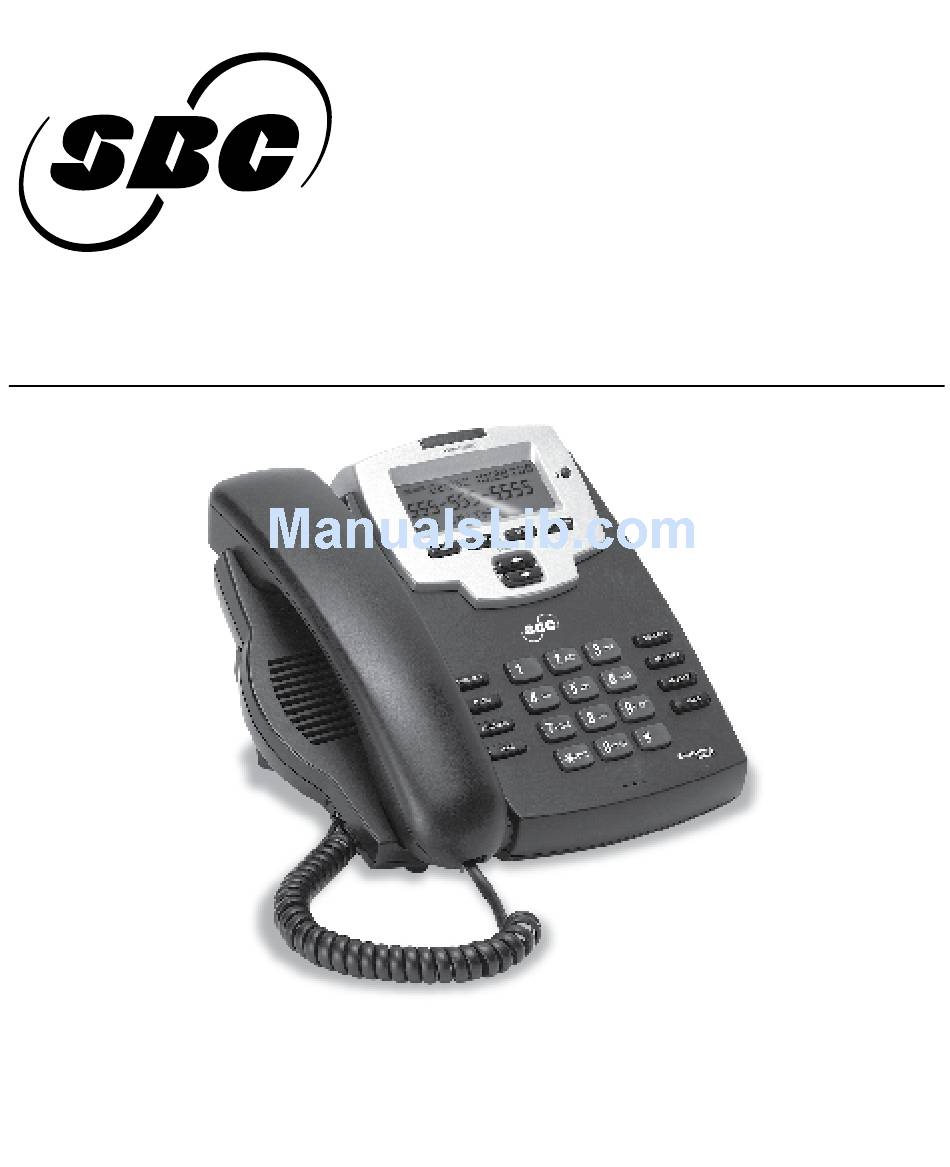

- Page 1 SBC-120 Users Manual Multi-Function Caller ID Phone For problems with installation or operation, visit our web site at www.sbctelephones.com or call 800-400-5156 © 2006 Grace Digital Inc., All rights Reserved SBC is a trademark of AT&T Knowledge Ventures, L.P, Licensed to Grace Digital Inc.
-
Page 2: Fcc Registration Information
FCC Registration Information v. 1.17.07... -
Page 3: Table Of Contents
FCC Registration Information ...Inside Cover Feature List ... 2 Safety Instructions ... 3 Introduction ... 4 Wall Mounting Instructions ... 5 Location Controls ... 6 Function Buttons ... 7 Function Operations ... 10 Caller ID Call Waiting ... 14 Receiving Call Records ... 15 Reviewing Display Messages ... -
Page 4: Feature List
Real time clock with date & time (automatically synchs with Caller ID*) New call indicator LCD contrast setting Area code setting Multiple language selection Low Battery indicator Last number redial Flash, Pause, Mute Tone/Pulse Dialing Hold Call Timer Headset jack * function requires subscription to telephone company service... -
Page 5: Safety Instructions
9. Avoid using the telephone during an electrical storm. There can be a slight risk of electrical shock from lightning. 10. Do not use the telephone to report a gas leak, if in the vicinity of the leak. 11. Unplug this telephone from the wall outlet and refer servicing to qualified service personnel under the following conditions: • If liquid is spilled into the unit. -
Page 6: Introduction
“Call Identification (Caller ID) Service” and/or “Call Waiting Caller ID Service” that is provided by your local telephone company. There is a fee for these services by your local telephone company, and they may not be available in all areas. When used with these services, your telephone displays the telephone number or the telephone number and name of each caller before you answer the call allowing you to screen your calls. -
Page 7: Wall Mounting Instructions
3. Pull out the mounting stand to the wall mounting position shown In figure 5. 4. To install as a wall unit. a. Align the holes on the back of the telephone mounting plate with the heads of the self tapping screws. -
Page 8: Location Controls
13. FLASH button 14. AUTO DIAL button 15. MUTE button 16. Data jack 17. Ringer volume switch 18. Dialing mode switch 19. Telephone jack 20. 9VDC power jack 21. Headset jack 22. Handset jack 23. Volume switch AUTO DIAL 3 4 5... -
Page 9: Function Buttons
1. Enter number using the dialing keypad. 2. Press and hold the MEMORY 1 or 2 button until “SAVE OK” appears on the LCD. MESSAGE Function If you subscribe to “Voice Messaging” (a special telephone service), this function will operate in the following manner: When the indicator is displayed on the LCD and the “Message Waiting”... - Page 10 FLASH Button If you subscribe to “Call Waiting” (a special telephone service) the FLASH button is used to connect the line to another incoming call or to establish a dial tone to make another call while still connected to the initial caller.
- Page 11 OPERATIONS”, under the “PHONEBOOK” section for details. Ringer Volume Switch Set the ringer volume switch to the desired position (HI/LOW/OFF). To have the maximum ringer volume, move the ringer volume switch to the HI position. To have a low ringer volume, move the ringer volume switch to the LOW position.
-
Page 12: Function Operations
Function Operations To access the function settings of this phone, press the MENU button and use the buttons to select a function. NOTE: The phone must be in the on-hook position to access the MENU mode settings. The setting sequence is PHONE BOOK - CALL WAITING - DATE FORMAT - HOUR FORMAT - SET FLASH - SET AREA CODE - SET LANGUAGE - SET TIME - LCD CONTRAST - BACK LIGHT. - Page 13 2. With the phone on-hook, you may directly access the phonebook by pressing the number 1 plus #. The LCD will show the first name/number entry in the phone book. Use the or button to scroll to the desired name/number. The contact displayed in the LCD can be automatically dialed by picking up the handset.
- Page 14 Function Operations TIME SETTING If you have subscribed to Caller ID, the date and time will be automatically set when the first call is received. To set the time manually follow the instructions below: Press the MENU button, using the or scroll to SET TIME - press ENTER/DIAL, then using the keypad, enter the correct time, date and day of week.
- Page 15 HOUR FORMAT SETTING Press the MENU button, using the DIAL and the current time format will be displayed. Press the make a selection (24 HOUR / 12 HOUR). Press the MENU button to confirm and exit. Note - If you subscribe to the Caller ID service, the Caller ID will automatically set time and date.
-
Page 16: Caller Id Call Waiting
1. When you are on the line, the telephone will display the name and number of the second caller. 2. Press the FLASH button to answer the second caller. -
Page 17: Receiving Call Records
A caller ID record consists of the following information: Reviewing Display Messages MESSAGE WAITING - If you have voice mail service from your telephone company and a message is left, the MESSAGE WAITING light will turn on and the message icon will appear in the upper left corner of the LCD. -
Page 18: Caller Id System Operations
Caller ID System Operations Subscription to Caller ID service and/or voice mail service from your local phone company is required to experience these features. • New Voice Message Indicator - The red indicator light above the LCD will flash to indicate that you have a new voice message waiting. The lamp will continue to flash until all the new calls have been reviewed. -
Page 19: Troubleshooting
• Check ringer switch on the back of the phone. If ringer is on, you may have too many communication devices hooked to a single line. A communication device can be a phone, modem or facsimile (FAX) machine. Contact your telephone company for help in calculating the limit for your residence or business line. NO DIAL TONE • Verify that the line cord is plugged in correctly. -
Page 20: Warranty
Warranty This product has a one-year over the counter warranty. For any inquiries after the warranty period, please contact Grace Digital Inc. at (800) 400-5156. Hours are from 8:00 a.m. to 5:00 p.m. PST, Monday through Friday or visit www.sbctelephones.com. In case of difficulties, visit our service center at www.sbctelephones.com or call 800-400-5156 ©...
