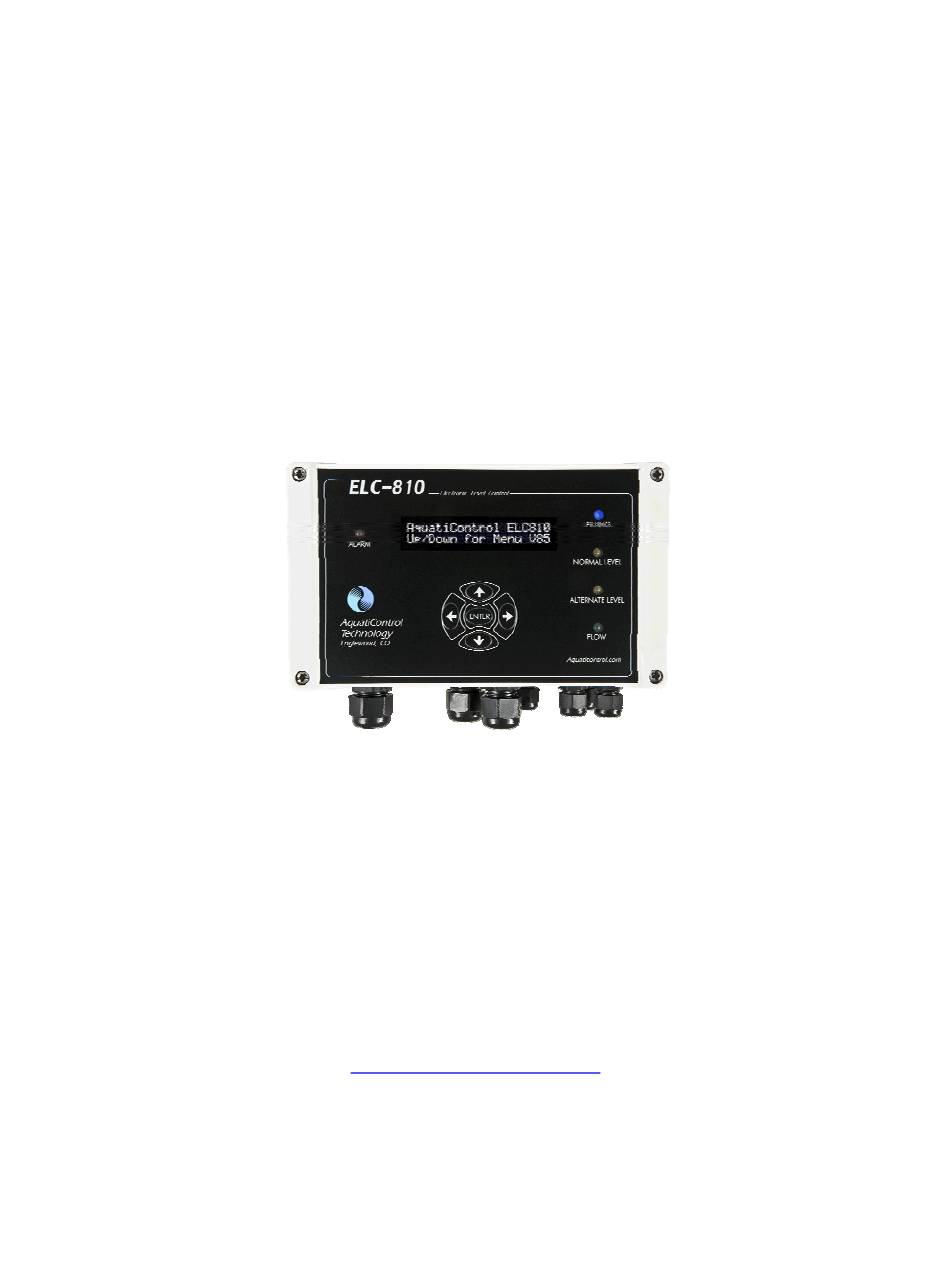

- Page 1 PERATION AND AINTENANCE ANUAL ELC-810 UTOMATIC ATER EVEL ONTROLLER AquatiControl Technology 3820 South Federal Blvd Sheridan, Colorado 80110 Toll Free: 877.755.8817 Fax: 303.761.1499 www.aquaticontrol.com Serial No. _____________________ Model No. _______________________...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ................... 3 Installation ................. 4-5 Wiring Diagram ................6 Operation ................... 7-9 Routine Maintenance ..............10 Troubleshooting ..............11-12 Warranty ..................13 - 2 - ACT 2009... -
Page 3: Introduction

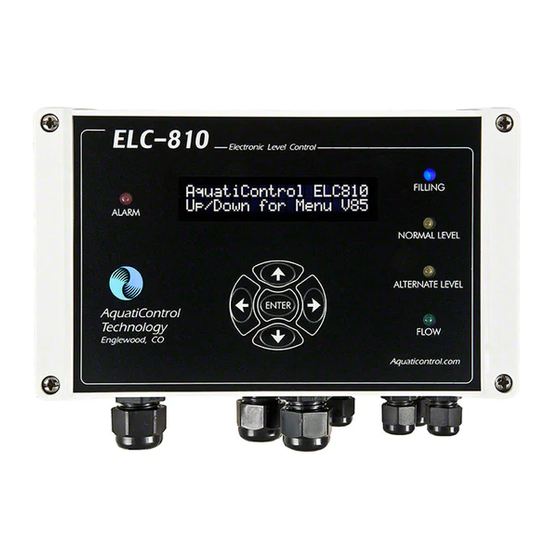

INTRODUCTION The AquatiControl Technology (ACT) Model ELC-810 is designed to provide the most accurate and reliable automatic water level control for swimming pools, spas, fountains, and spray pads. All of the user-friendly features incorporated into the system were designed with the operator in mind. -
Page 4: Installation
ELC-810. The interconnecting cable carries low voltage. Local codes may require the cable to be housed in conduit. Refer to www.aquaticontrol.com for sensing applications, drawings, and other product information offered by AquatiControl Technology. - 4 - ACT 2009... - Page 5 ONNECTING THE OLENOID ALVE The ELC-810 unit will actuate up to a 2” solenoid valve with a 24 VAC, 10 watt (max) supply, without the use of an auxiliary relay. We recommend an anti-water hammer or slow close solenoid valve. The power and ground cables should be directly connected to the ELC-810 terminal strip.
-
Page 6: Wiring Diagram
- 6 - ACT 2009... -
Page 7: Operation
OPERATION Once installation has been completed as described on pages 4 and 5, open water supply valve to sensor unit. If the water is not up to normal operating level in the pool, manually adjust the water level to that point. After level is set and water is at normal operating level, it is time to power the control unit. - Page 8 Following the informational screens is the ability to change menu options. In order to change settings, bring up the option and press the right arrow until a small “p” appears in the lower right corner of the LCD. The user is then able to change the settings using the specified arrows for each setting.
- Page 9 (allows use of normally open or normally closed flow switches) ENSOR CTIVE Open or Closed (use left and right arrows to change) : Closed EFAULT (set to Other) ENSOR : Other EFAULT (beeping will occur when in alarm mode if yes is selected) OUNDER WITH LARM Yes or No (use left and right arrows to change)
-
Page 10: Routine Maintenance
ROUTINE MAINTENANCE AquatiControl Technology’s Model ELC-810 controller is completely solid state and normally will not require any maintenance. ENSOR LEANING TANDARD The ½” PVC tube on the Standard Well Sensing Unit may need to be cleaned periodically. To clean the tube, isolate the sensor unit by closing the valve that supplies the water to it. -
Page 11: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Check outlet power and Plugged into a dead outlet switch setting on controller No power to controller Bad system fuse Replace fuse Normal operation for ELC- Filling light flashing Fill is in delay Water supply flow is too Increase flow Solenoid not opening Repair/replace valve... - Page 12 SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Reset ELC by turning the Can’t change settings Forgotten/wrong password power on while holding the left and right arrows - 12 - ACT 2009...
-
Page 13: Warranty
WARRANTY AquatiControl Technology (ACT) warrants equipment of its manufacture and bearing its identification to be free of defects in workmanship and material. ACT’s liability under this warranty extends for a period of one year from date of delivery from our factory or authorized distributor. It is limited to repairing or replacing any device or part which is returned, transportation prepaid, to the factory within one year of delivery to the original purchaser, and which is proven defective upon examination.
