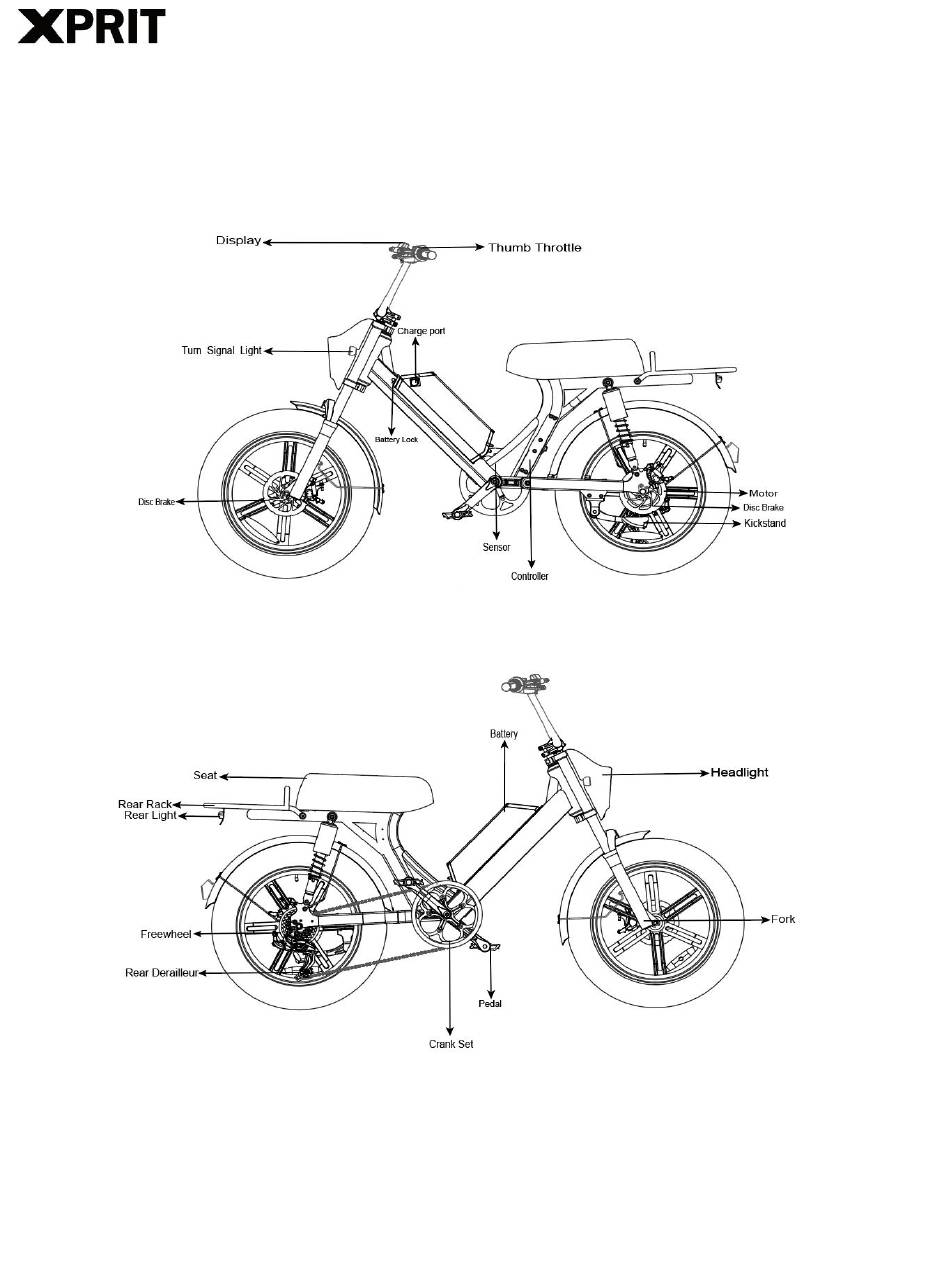

- Page 1 Instructions to Set Up Your Delivery Shuttle E-bike Diagram 1 / 16...
- Page 2 We know you are excited about getting going but please: ✓ Reseat and charge the battery before the first ride ✓ Make sure the pedals are tight ✓ Make sure the front wheel is installed properly and tight ✓ Inflate the tires properly ✓...
- Page 3 ________________________________________________________ If you have any trouble with setup, please contact us online or through our email address: support@xprit.com Assembling Your E-Bike 1) Read all of the instructions carefully. Be familiar with the proper operation of all items. 2) This quick guide is intended to list the steps needed to assemble your bike with some mechanical skills.
- Page 4 Installing Your Handlebars 1) Place the handlebar in the handlebar mount being careful with the wires. 2) Face the mounting brackets on the front end of the mount with the round edges facing outward. Adjust the handlebar angle to your comfortable riding posture. 3) Secure the mounting brackets with four screws.
- Page 5 Installing Your Front Wheel - Through Axle Version 1) Insert the axle into the wheel hub as shown. Add the Slim Spacer on the LEFT side (Brake Disk) and the Wide Spacer on the RIGHT side. 2) Insert the front wheel with the spacers in between the front fork on the bike. Be sure to align the disk between the brake caliper as shown in Figure 2.
- Page 6 Installing Your Front Fender 1) Align the fender clamps on the left and right legs of the fork with the fender stay to enable the fender in the line with the wheel. Fix the stay with the screws (M5 screw) provided on the clamp.
- Page 7 Installing Your Pedals 1) Warning: Incorrect installation will cause damage. Please read the instructions and watch our videos if needed. 2) Identify the Left and Right markings on the pedals. They can only be installed in their respective side. a. L is for the Left Pedal and it goes on the Left Crank Arm. b.
-
Page 8: General Settings
Preparations Before Riding 1) Read all instructions carefully, be familiar with the proper operation of all items. Check for detailed information and guidance on our product page. 2) Warning: Basic electric precautions should always be followed to avoid issues or malfunction. How to Use the Bike General settings 1) Power on/off... -
Page 9: Advanced Settings
3) Speed limit After setting distance unit, short press the button to set speed limit. Note: This bike speed is set by controller and cannot adjustable. 4) Display brightness After setting speed limit, short press the button to set display brightness. Short press “+” to increase brightness, short press “-”... -
Page 10: Other Operations
11) Distance clearance Turn on display, press button and “-” button for 2 seconds, the distance record can be cleared. 12) Single distance/Total distance Turn on display, short press button to change single distance and total distance record. Display Battery Capacity Battery capacity shows in grid with corresponding percentage as below. - Page 11 Use the throttle or pedal assist to reach your desired speed. While holding the throttle in a stable speed (speed should be over10mph) over 5 seconds, it will enter into cruise mode. Under cruise mode, the current speed will be maintained without the need to use the throttle or pedal assist.
- Page 12 When the Battery is Removed Do not touch the “+” and “-” terminal contacts on the top of the battery when the battery is removed from the bike. Be careful not to drop or damage the battery when loose from the bike. ...
- Page 13 Notes of Charging and Storage 1) Pay attention to check whether the surface temperature of the battery case rises too high during charging. It is FORBIDDEN to cover the battery during charging. 2) Due to high temperature in summer time, it is NOT advisable to charge it immediately after riding.
-
Page 14: Error Code
Error Code Error Error Notes Code Throttle has not returned to the start position on start-up. Check to see if the throttle can return to the start position or if there is Open Throttle Fault something blocking the throttle unit. Contact technical support. -
Page 15: Basic Troubleshooting
BASIC TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Battery off Turn on battery Battery installation Reseat battery Throttle and pedal assist not working LCD display not on Turn on LCD display Discharged battery Charge battery Brake sensors ... - Page 16 Label of Your Delivery Shuttle E-bike www.xprit.com. To find out more, please visit our website at 16 / 16...
