Summary of Contents for XPRIT Beach Cruiser

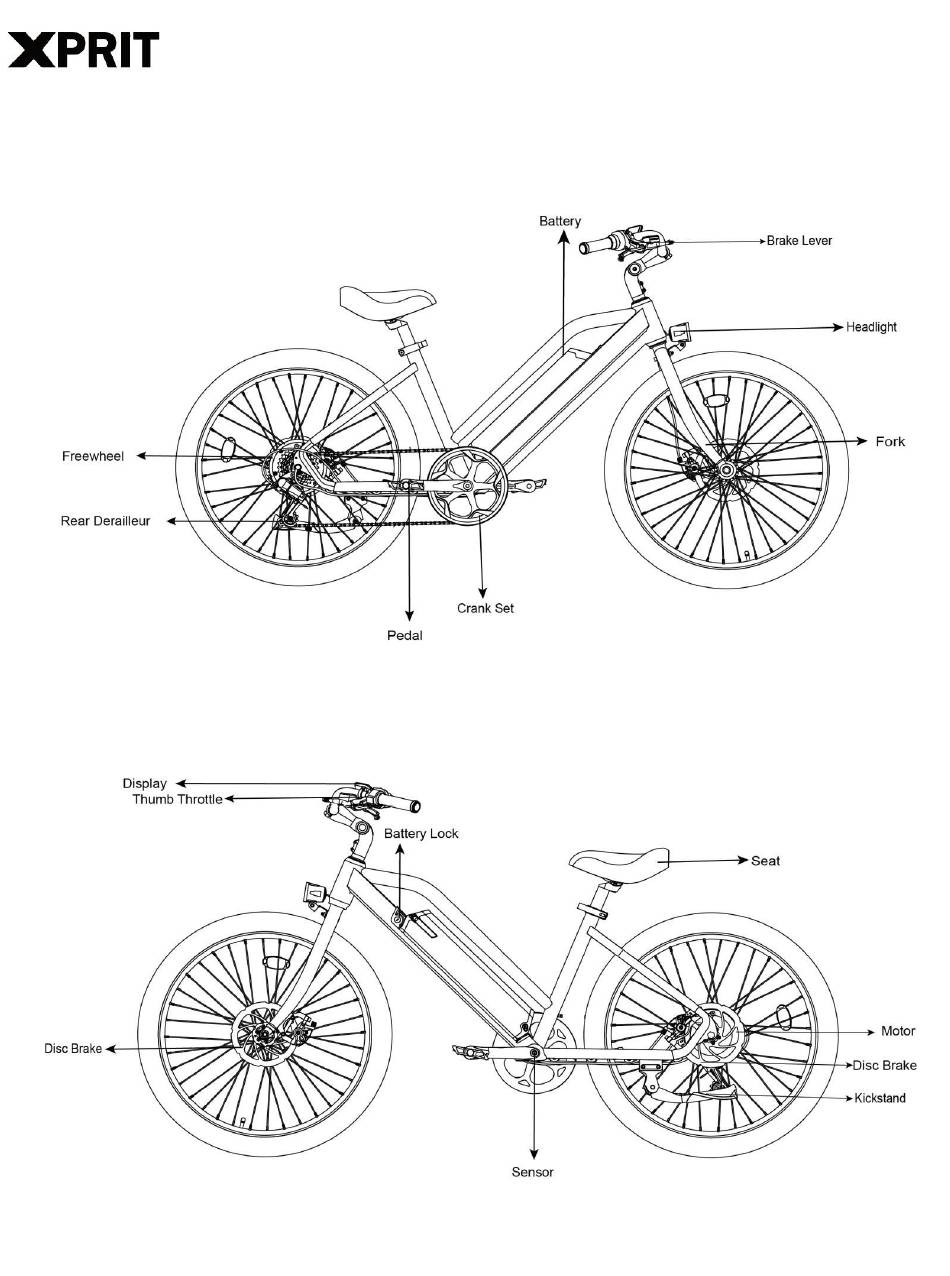

- Page 1 Instructions to Set Up Your Beach Cruiser E-bikes Diagram 1 / 16...
- Page 2 Learn how to use the LCD display ✓ Wear a helmet before riding Please Note: Your bike may need further adjustments after assembly. ________________________________________________________ If you have any trouble with setup, please contact us online or through our email address: support@xprit.com 2 / 16...
-
Page 3: Assembling Your E-Bike
Assembling Your E-Bike 1) Read all of the instructions carefully. Be familiar with the proper operation of all items. 2) This quick guide is intended to list the steps needed to assemble your bike with some mechanical skills. It is not a complete manual or training. If you do not feel comfortable or lack some of the skills to assemble it yourself, reach out to a cyclist friend, a local bike mechanic or one of our support technicians for guidance. - Page 4 Installing Your Handlebars 1) Turn the headset forward in front of the bike. 2) Place the handlebar in the handlebar mount being careful with the wires. 3) Face the mounting brackets on the front end of the mount with the round edges facing outward. Adjust the handlebar angle to your comfortable riding posture.
- Page 5 Installing Your Front Wheel - Quick Release Version Insert the front wheel in between the front fork on the bike. Be sure the fork is resting on the outside of the axle. 1) Align the disc brake between the brake caliper as shown in Figure 2. 2) Insert the skewer into the wheel axle(See Figure 1).
- Page 6 Installing Your Headlight 1) Put the headlight with its bracket and end nut in front of fork gantry, the headlight screw and spacer behind fork gantry. Link and secure these four pieces through fork gantry installing hole. 2) Connect the headlight cable with the wire coming from the downtube. 6 / 16...
- Page 7 Installing Your Pedals 1) Warning: Incorrect installation will cause damage. Please read the instructions and watch our videos if needed. 2) Identify the Left and Right markings on the pedals. They can only be installed in their respective side. a. L is for the Left Pedal and it goes on the Left Crank Arm. b.
-
Page 8: Removing The Battery
Removing the Battery To Remove the Battery 1) Turn off the LED display. 2) Use your left hand to turn the key clockwise to unlock the battery. 3) Use your right hand to hold on battery handle and pull out the battery backward. Note: the battery weighs heavy and should be handled with care. -
Page 9: How To Use The Display
How to Use the Display 1) Power on/off button to turn on the display. Your bike will be ON. Press again to turn it off. The Press the display will automatically shut down when there is no operation or riding for 10 minutes. 2) Adjust the assist level Short press “+”... -
Page 10: Preparations Before Riding
Using the Cruise Control Function The cruise control feature can be used to maintain a desired speed without using the Throttle or Pedal Assist. To activate the Cruise Control function: Use the throttle or pedal assist to reach your desired speed. While holding the throttle in a stable speed (speed should be over10mph) over 5 seconds, it will enter into cruise mode. - Page 11 Note: The charger is designed to automatically stop charging when the battery is full, but unnecessary wear of the charging components could occur if the charger is left attached to the battery and a power source for longer than 12 hours. Detach the charger as soon as possible once the green light indicates a complete charge, to avoid unnecessary wear of charging components.
- Page 12 Do not leave a charging battery unattended. Never charge a battery for more than 10 hours at a time. Failure to follow battery charging best practices could result in unnecessary wear to the charging components, battery, and or charger, and could lead to an under-performing or non-functional battery and replacement will not be covered under warranty.
-
Page 13: Basic Troubleshooting
BASIC TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Battery off Turn on battery Battery installation Reseat battery Throttle and pedal assist not working LED display not on Turn on LED display Discharged battery Charge battery Brake sensors ... -
Page 14: Error Codes
Error Codes When the e-bike electronic control system fails, the display will automatically flicker the LED light to indicate the error code.Below is the error codes list. Error Showing Error Note Throttle has not returned to the start position on start-up. - Page 15 Label of Your Beach Cruiser E-bike 15 / 16...
- Page 16 To find out more, please visit our website at www.xprit.com 16 / 16...
