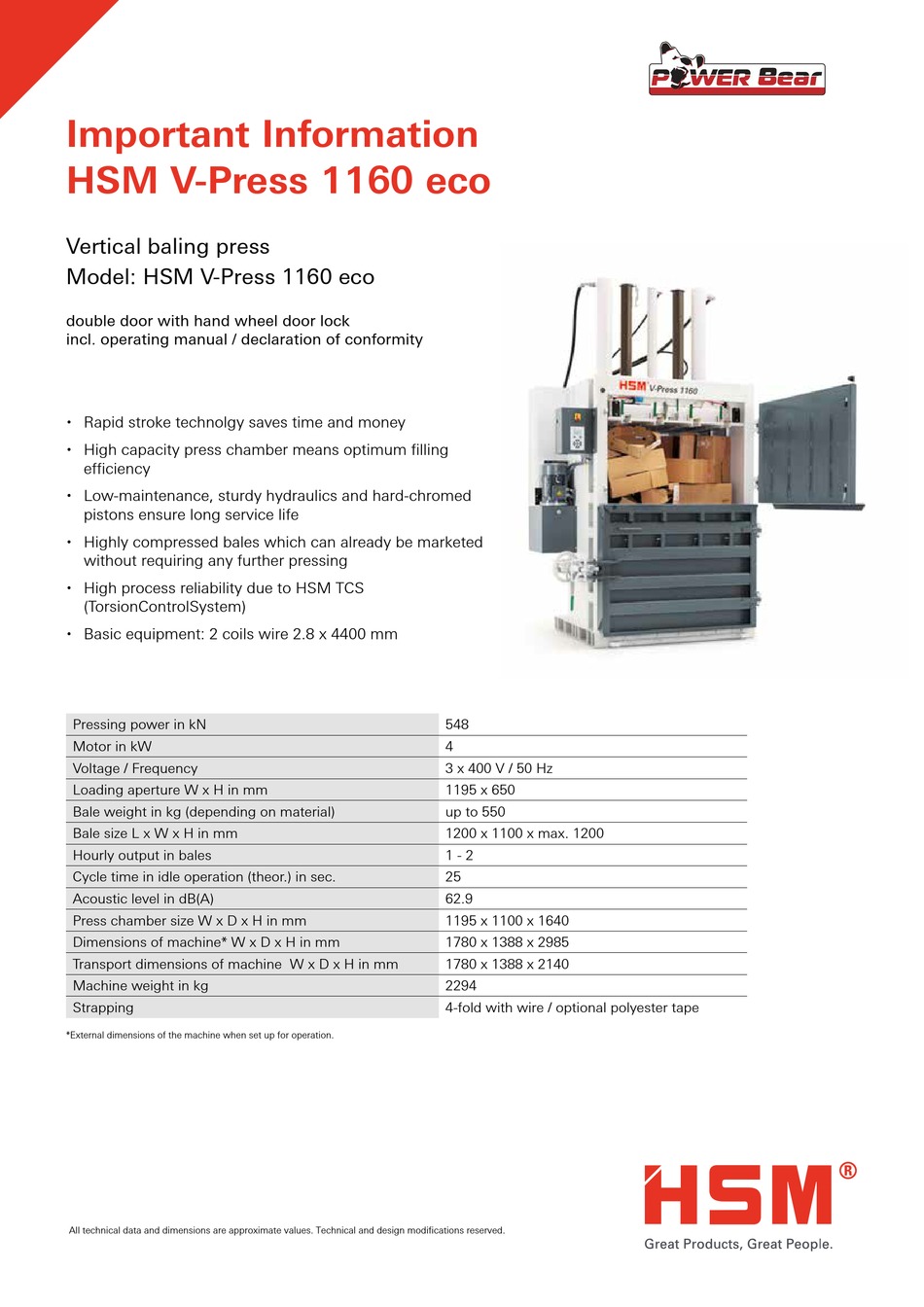

Important Information

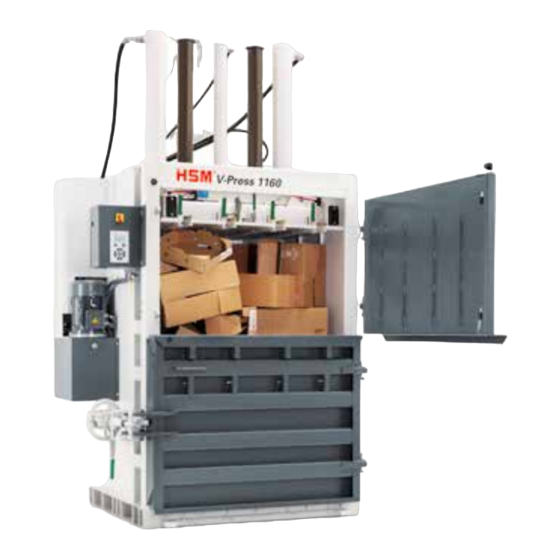

HSM V-Press 1160 eco
Vertical baling press
Model: HSM V-Press 1160 eco
double door with hand wheel door lock
incl. operating manual / declaration of conformity
x Rapid stroke technolgy saves time and money
x High capacity press chamber means optimum filling
efficiency
x Low-maintenance, sturdy hydraulics and hard-chromed
pistons ensure long service life
x Highly compressed bales which can already be marketed
without requiring any further pressing
x High process reliability due to HSM TCS
(TorsionControlSystem)
x Basic equipment: 2 coils wire 2.8 x 4400 mm
Pressing power in kN
Motor in kW
Voltage / Frequency
Loading aperture W x H in mm
Bale weight in kg (depending on material)
Bale size L x W x H in mm
Hourly output in bales
Cycle time in idle operation (theor.) in sec.
Acoustic level in dB(A)
Press chamber size W x D x H in mm
Dimensions of machine* W x D x H in mm
Transport dimensions of machine W x D x H in mm
Machine weight in kg
Strapping
*External dimensions of the machine when set up for operation.
All technical data and dimensions are approximate values. Technical and design modifications reserved.
548
4
3 x 400 V / 50 Hz
1195 x 650
up to 550
1200 x 1100 x max. 1200
1 - 2
25
62.9
1195 x 1100 x 1640
1780 x 1388 x 2985
1780 x 1388 x 2140
2294
4-fold with wire / optional polyester tape
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POWER Bear HSM V-Press 1160 eco
Summary of Contents for POWER Bear HSM V-Press 1160 eco
- Page 1 Important Information HSM V-Press 1160 eco Vertical baling press Model: HSM V-Press 1160 eco double door with hand wheel door lock incl. operating manual / declaration of conformity x Rapid stroke technolgy saves time and money x High capacity press chamber means optimum filling...
- Page 2 Dimensions and space requirement HSM V-Press 1160 eco Ceiling height min. 3000 mm Please note the projections! ca. 400 ca. 400 All technical data and dimensions are approximate values. Technical and design modifications reserved.
- Page 3 Delivery and installation HSM V-Press 1160 eco Delivery by truck: x Is the place of delivery easily to access? c yes c no If NO – why not? ____________________________________________________ x Do you have to cross a pedestrian zone for the delivery?
- Page 4 Electrical connection HSM V-Press 1160 eco Rated power 4.0 kW Operating voltage U 400 V Frequency 50 Hz Rated current In 8.5 A Battery backup 3 x 16 A (K-, C-, gL-characterise) Connector plug CEE 5 x 16 A 6 H Length of power supply approx.
