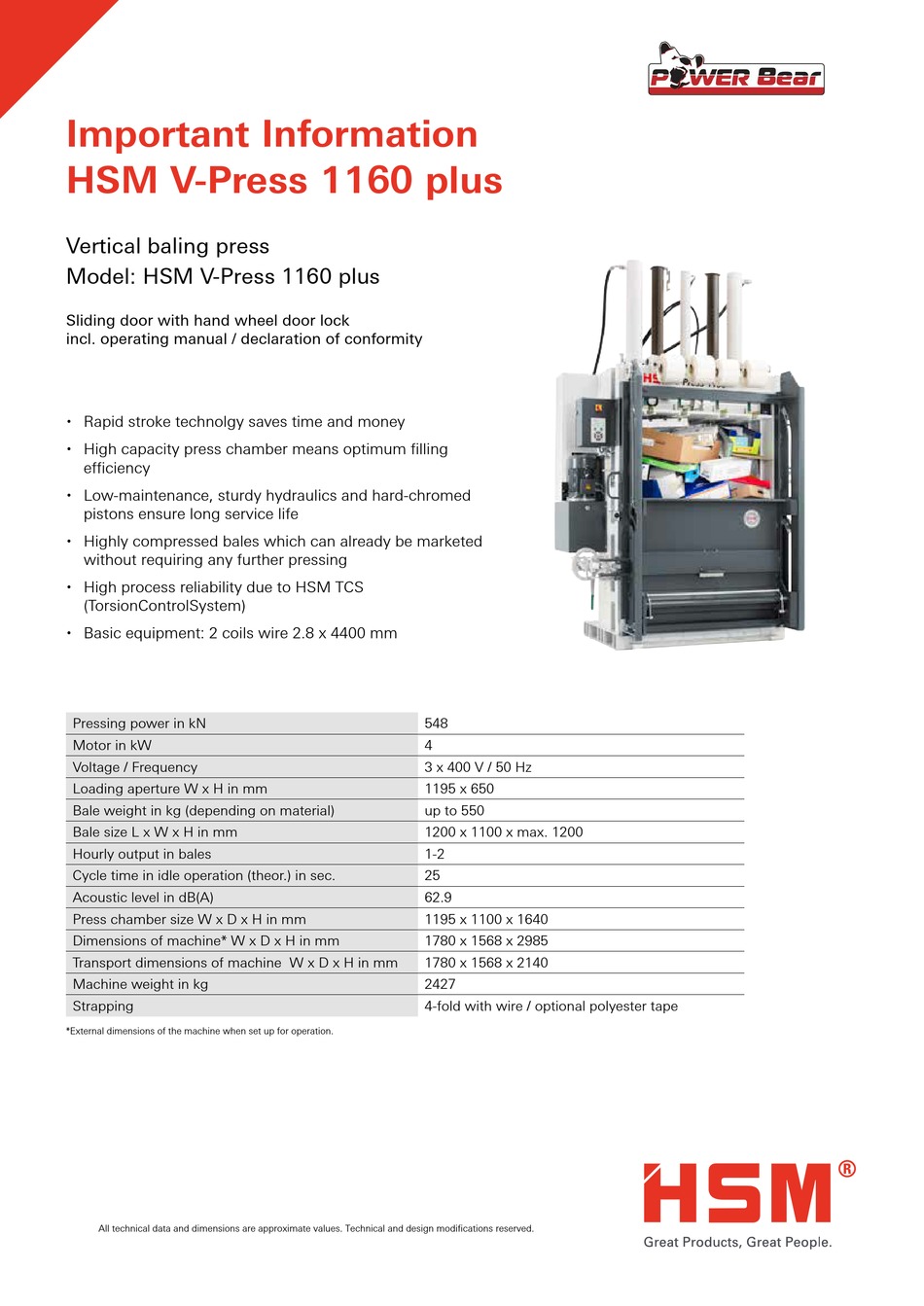

POWER Bear HSM V-Press 1160 plus Important Information

POWER Bear HSM V-Press 1160 plus Important Information

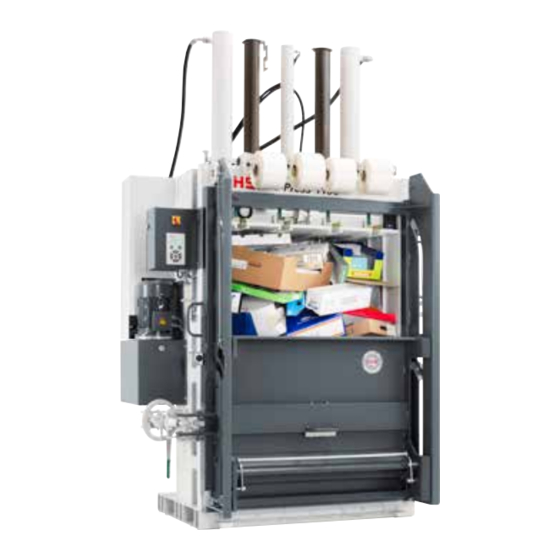

Vertical baling press

Advertisement

Quick Links

Important Information
HSM V-Press 1160 plus
Vertical baling press
Model: HSM V-Press 1160 plus
Sliding door with hand wheel door lock
incl. operating manual / declaration of conformity
x Rapid stroke technolgy saves time and money
x High capacity press chamber means optimum filling
efficiency
x Low-maintenance, sturdy hydraulics and hard-chromed
pistons ensure long service life
x Highly compressed bales which can already be marketed
without requiring any further pressing
x High process reliability due to HSM TCS
(TorsionControlSystem)
x Basic equipment: 2 coils wire 2.8 x 4400 mm
Pressing power in kN
Motor in kW
Voltage / Frequency
Loading aperture W x H in mm
Bale weight in kg (depending on material)
Bale size L x W x H in mm
Hourly output in bales
Cycle time in idle operation (theor.) in sec.
Acoustic level in dB(A)
Press chamber size W x D x H in mm
Dimensions of machine* W x D x H in mm
Transport dimensions of machine W x D x H in mm
Machine weight in kg
Strapping
*External dimensions of the machine when set up for operation.
All technical data and dimensions are approximate values. Technical and design modifications reserved.
548
4
3 x 400 V / 50 Hz
1195 x 650
up to 550
1200 x 1100 x max. 1200
1-2
25
62.9
1195 x 1100 x 1640
1780 x 1568 x 2985
1780 x 1568 x 2140
2427
4-fold with wire / optional polyester tape

Advertisement

loading
Need help?

Need help?

Do you have a question about the HSM V-Press 1160 plus and is the answer not in the manual?

Questions and answers

Summary of Contents for POWER Bear HSM V-Press 1160 plus

  • Page 1 Important Information HSM V-Press 1160 plus Vertical baling press Model: HSM V-Press 1160 plus Sliding door with hand wheel door lock incl. operating manual / declaration of conformity x Rapid stroke technolgy saves time and money x High capacity press chamber means optimum filling...
  • Page 2 Dimensions and space requirement HSM V-Press 1160 plus Ceiling height min. 3000 mm Please note the projections! ca. 400 ca. 400 Mate All technical data and dimensions are approximate values. Technical and design modifications reserved. All technical data and dimensions are approximate values. Technical and design modifications reserved.
  • Page 3 Delivery and installation HSM V-Press 1160 plus Delivery by truck: x Is the place of delivery easily to access? c yes c no If NO – why not? ____________________________________________________ x Do you have to cross a pedestrian zone for the delivery?
  • Page 4 Electrical connection HSM V-Press 1160 plus Rated power 4.0 kW Operating voltage U 400 V Frequency 50 Hz Rated current In 8.5 A Battery backup 3 x 16 A (K-, C-, gL-characterise) Connector plug CEE 5 x 16 A 6 H Length of power supply approx.
