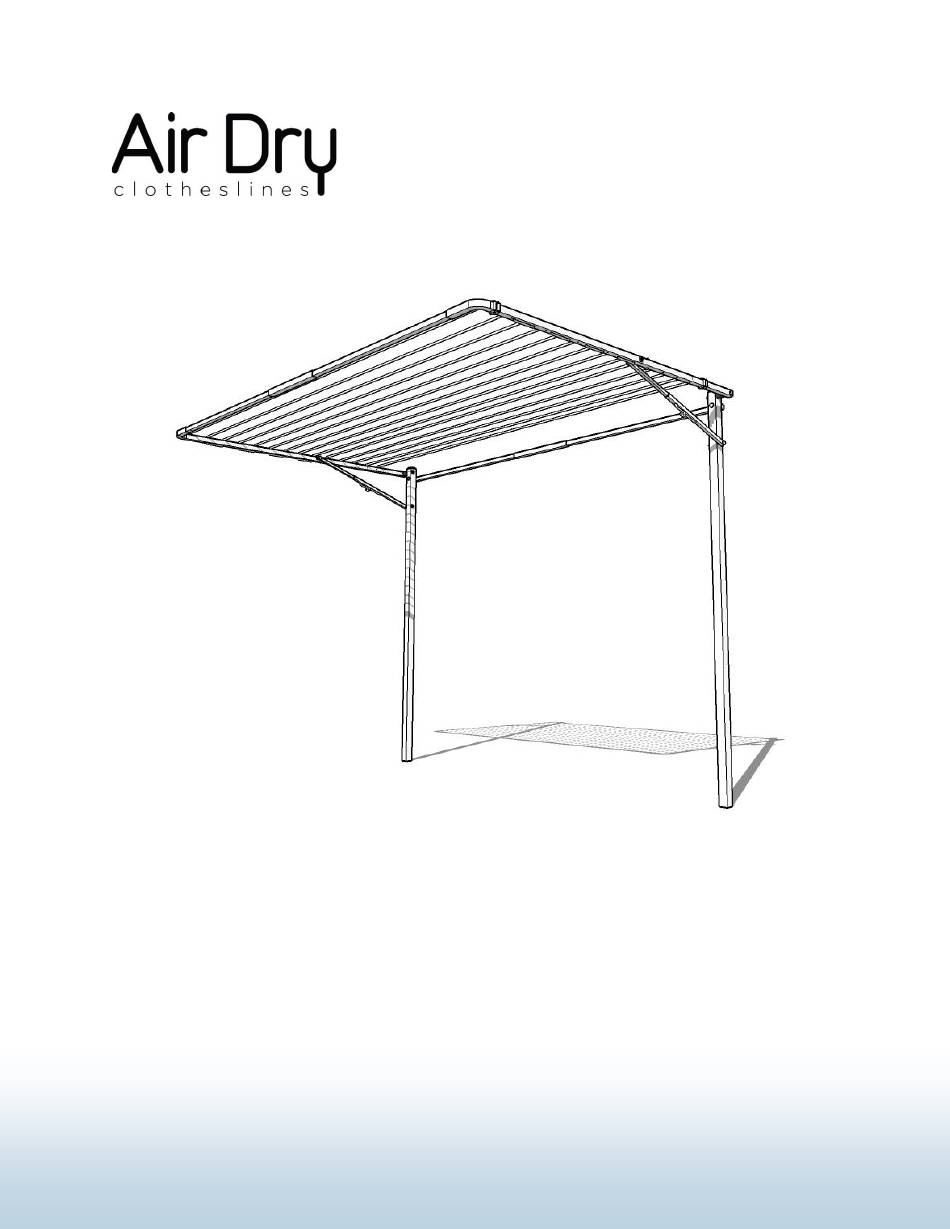

- Page 1 Ground Mounted Clothesline Assembly instructions...
- Page 2 Thank you for purchase of our Ground Mounted clothesline. We hope this clothesline fulfils your laundry needs and continues to remain of benefit to you and your family. This manual includes a set of assembly instructions along with a user guide.
- Page 3 www.airdryclotheslines.com.au Tools required: • Post hole digger • 13mm spanner or socket and ratchet • Measuring tape • 1-2 bags concrete mix • Ground marker • Spirit level • Cord cutters Assembly instructions Step 1: Formula to find the post hole centres Using the overall width of the clothesline ordered, subtract 140mm and this will give...
- Page 4 www.airdryclotheslines.com.au concrete around the posts filling the hole 50%- 75%. Repeat with the opposite post. Place 40/40 large end caps onto the top of each post. May need a hammer to put into place. Step 4: Assembling the rear bar Parts required: •...
- Page 5 www.airdryclotheslines.com.au Step 6: Assembling the arms/ strut mechanism Parts required: • 2 x 120mm bolts • 2 x 80mm bolts • 2 x 60mm bolts • 6 x Nuts • 2 x Large 45mm spacer • 4 x Small 10mm spacer •...
- Page 6 www.airdryclotheslines.com.au Step 7: Assembling the front bar Parts required: • 2 x Spreaders • 1 x Joiner Place the spreaders on the ground. Insert the 2 spreaders into each end of the joiner to make one long bar. Place each end of the bar into the ends of the arms. Step 8: Lifting and lowering the frame: lift the front bar evenly from the centre slightly past horizontal...
- Page 7 www.airdryclotheslines.com.au Step 9: Wiring Parts Required: • 2 x bundles of cord • Scissors or wire cutters (not supplied) Unravel the bundle of cord. Take one end of the cord and thread the cord up through the first hole at the front of the arm. You may start from either side.
- Page 8 www.airdryclotheslines.com.au Cut off the remaining cord using wire cutter/ scissors, leaving 100mm to be tucked into the inner arm hole. See figure 9c. Step 10: Final adjustments Lower the frame to the fold down position Horizontal checks: Sit the spirit level on the rear spreader bar. Make sure this is level. Post adjustment may be needed. Raising and lowering the post height can be done by lifting and packing concrete as needed.
