SANBlaze SBExpress-DT4 Quick Start

Step 1: Unpack Contents
Open the shipping container and unpack all contents.
Make sure you have the following:
SBExpress-DT4 NVMe SSD Test System chassis
Power cord
Ethernet cable
USB cable

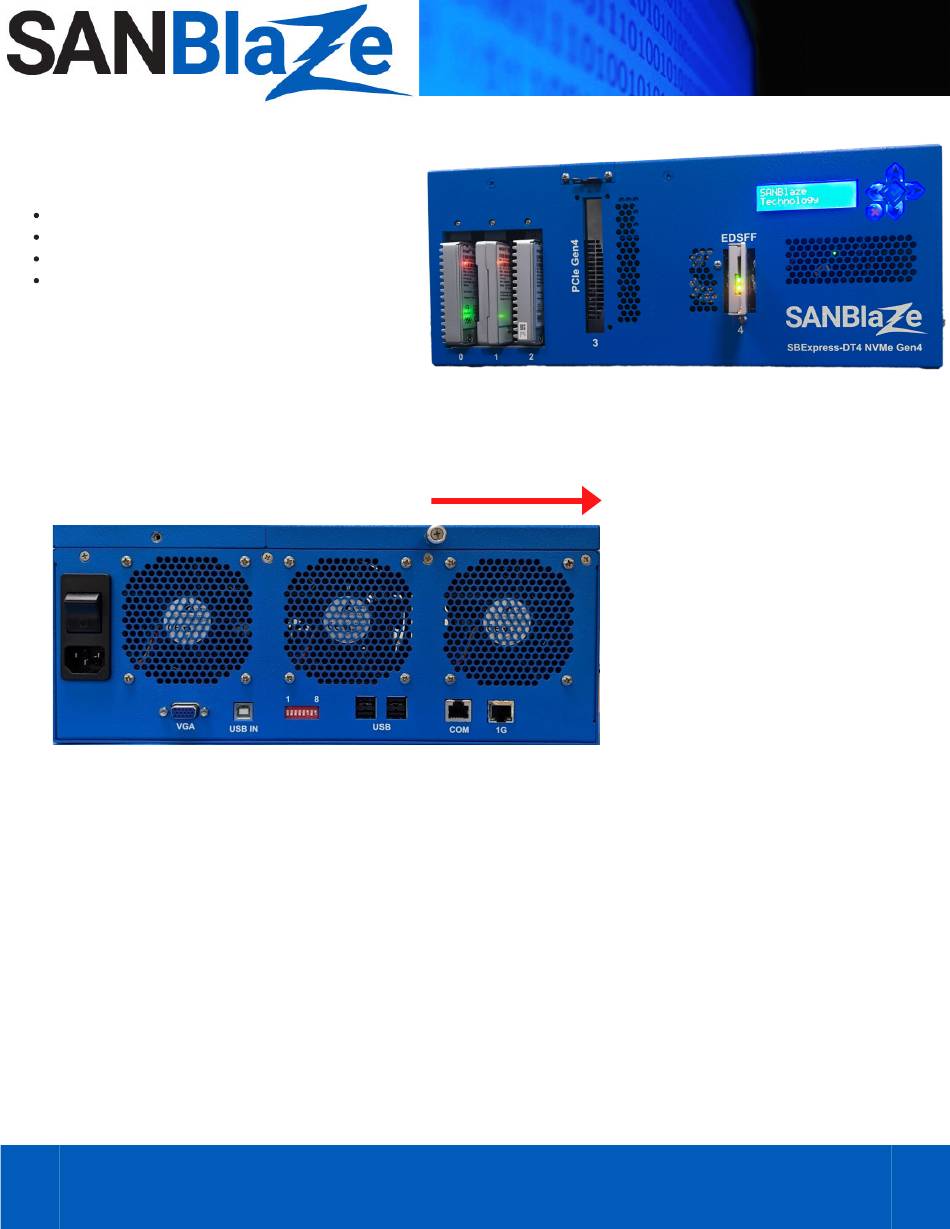

Step 2: Plug in the Power and
Network Cables
1. Plug the Power Cable into the system.
2. Plug the Ethernet cable 1G Eth0 into your network.
3. The SBExpress-DT4 should already be populated with the risers that
you ordered. See the list of PCIe Gen4 slots available (to the right).
Ports / onnectors
Step 3: OPTIONAL STEPS
1. Attach the VGA cable to your monitor (if you are using a monitor to access the system).
2. Connect the USB IN port to additional USB ports located in the system, or to a laptop for example. The USB B port provides
additional internal USB connections to the system if needed.
3. The DIP switches 1-8 are set to the default: ON, ON, OFF, OFF, OFF, ON, OFF, ON; Leave the defaults for now. You can
consult the SBExpress-DT4 User Guide later for additional options.
4. Four additional USB ports (2 USB ports as shown on the back of the system and 2 internal USB ports, not shown) for
optional devices and connecting peripherals are available if needed.
5. A serial COM port (19200 8n1) is available if needed for connection to a serial console.
Step 4: Install Drives in Front
All drives are installed through the front panel. Up to three single or dual port drives can be installed in the SBExpress-
DT4 NVMe SSD Test System. Note: It is recommended that all drives be installed before the system is powered on so
that they are discovered properly.
All information in this document is subject to change. Configurations rely on host system BIOS support and may be restricted by the host. Contact SANBlaze for additional information.
- -
COPYRIGHT © 2021 SANBLAZE TECHNOLOGY, INC.
sales@sanblaze.com | info@sanblaze.com | www.sanblaze.com
-
-
Six PCIe Gen4 slots Available
Slot 0, 1, 2 Gen4 Riser; options for U.2 /
U.3 / M.2 / EDSFF (short)
Slot 3, PCIe x8
Slot 4, EDSFF (long) support built-in
Slot 5, M.2 (on Motherboard)
Gen4
-
p/n 400-000023
