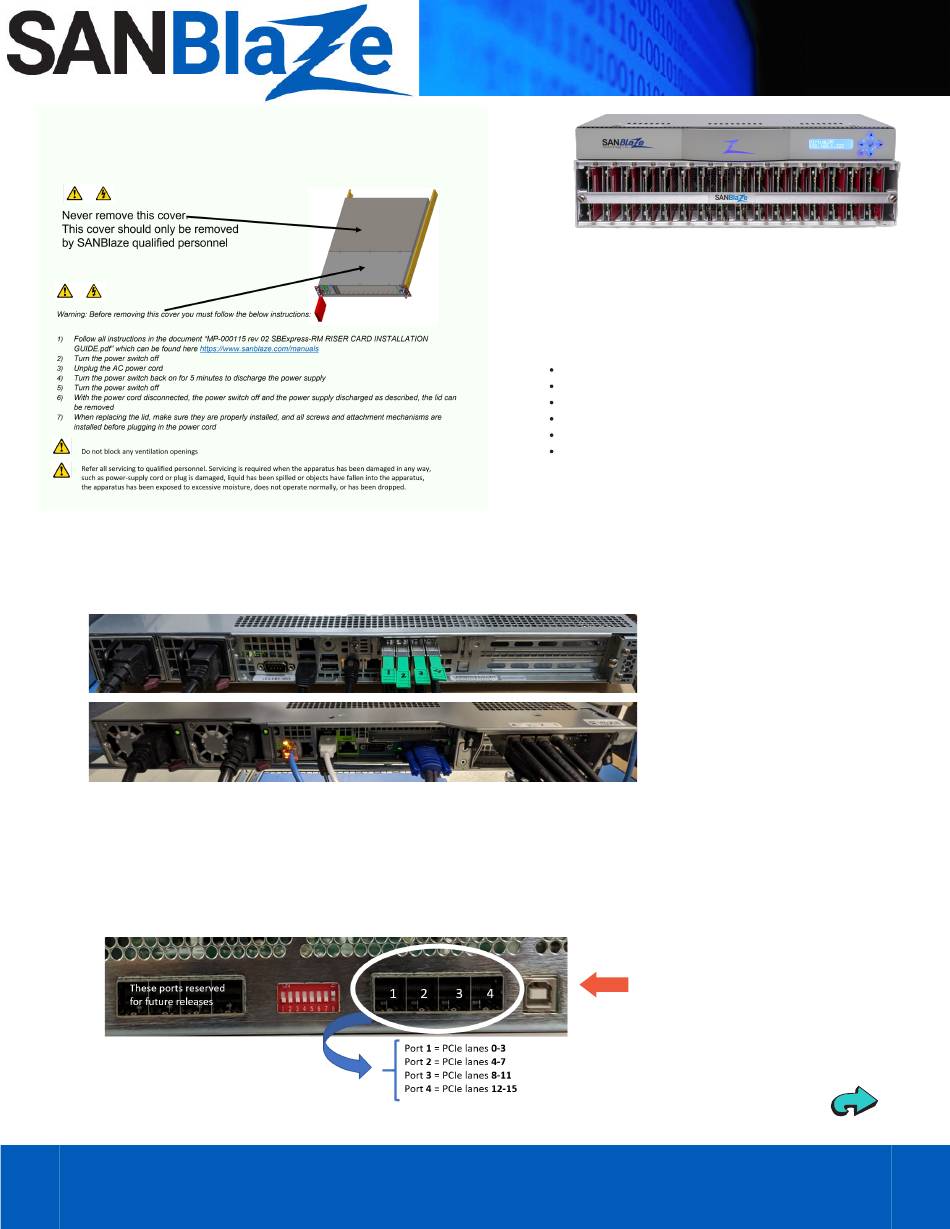

SANBlaze RM4 Gen4 Quick Start

S a f e t y I n f o r m a t i o n
S t e p 2 : I n s t a l l t h e a d a p t e r ( s ) i n t h e h o s t s y s t e m
If you are using a SANBlaze host system, the adapters will already be installed for you and you can skip to Step 3. To install the adapter(s) in your own host
system, see the figures below for a sample installation of a SANBlaze host system for Gen4 to guide you for your own installation.
S t e p 3 : C o n n e c t P C I C a b l e s B e t w e e n t h e H o s t S y s t e m a n d t h e S B E x p r e s s - R M 4
Connect the PCIe cable(s) from the host system (Step 2 above) to the SBExpress-RM4 NVMe Test System (shown below). Please note the
port numbering. For DIP switch settings please refer to the SBExpress-RM/RM4 NVMe User's Guide.
SBExpress-RM4 NVMe SSD Test System
All information in this document is subject to change. Configurations rely on host system BIOS support and may be restricted by the host. Contact SANBlaze for additional information.
SANBlaze NVMe Gen4 Host Systems
COPYRIGHT © 2021 SANBLAZE TECHNOLOGY, INC.
sales@sanblaze.com | info@sanblaze.com | www.sanblaze.com
SBExpress-RM4 Dual Port NVMe SSD Test System
S t e p 1 : U n p a c k A l l C o n t e n t s
Open the shipping container and unpack all contents. Make sure you
have the following:
SBExpress-RM4 NVMe Test System enclosure with Gen4 Server
PCIe adapter module(s)
PCIe cable(s)
Power cord
USB cable
SBExpress-RM4 NVMe SSD Test System Enclosure
USB-IN
Continued on Back....
Gen4
p/n 400-000020 Rev. 03
