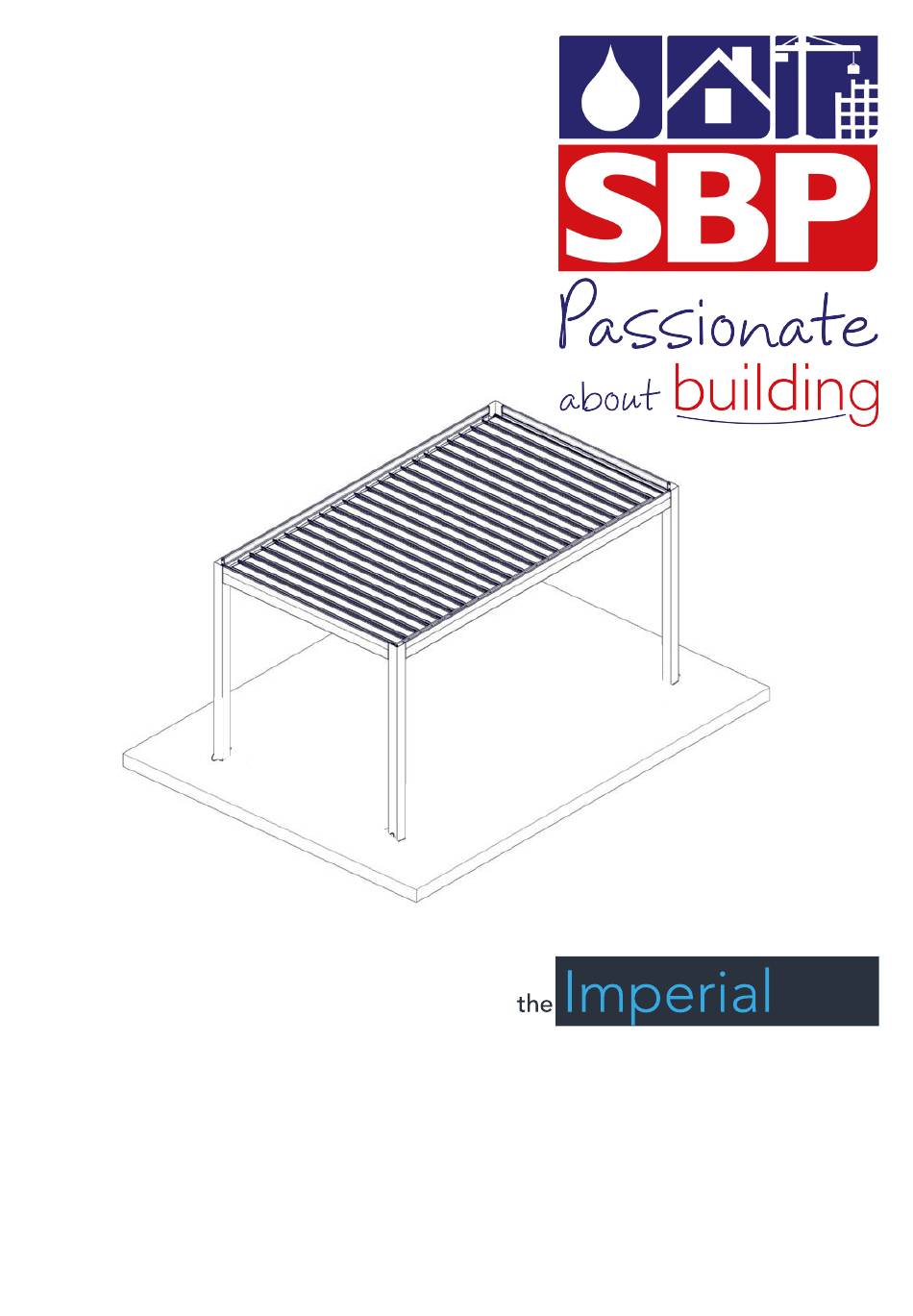

- Page 1 Assembly instructions Version: February 2022 User manual / Assembly instructions Deponti Louvered Pergola Type Pinela Version: EN – Februari 2022 www.deponti.com Assembly Instructions - the Imperial www.sbpuk.info page:...
-
Page 2: Table Of Contents
This manual has been compiled with the utmost care, but we cannot be held responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this manual may be reproduced in any way whatsoever. Assembly Instructions - the Imperial page:... -
Page 3: Introduction
• Cordon off the assembly location so that others are kept at a safe distance. • Always place a ladder on a firm, stable surface. • Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes with non-slip soles, etc.) during installation or servicing. • Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that the wall and the ground are clean and dry. Assembly Instructions - the Imperial page:... - Page 4 • You must maintain and clean your canopy at least once a year. During this yearly maintenance make sure all fasteners are properly tightened. • When safety regulations and instructions are not followed correctly, we will not accept responsibility for damage(s) and injuries. Assembly Instructions - the Imperial page:...
-
Page 5: Product Description
3. Product description The Imperial is a pergola/gazebo system which features remote controlled, retractable roof panels which can be opened to reveal approximately 80% of the covered area. When closed, the panels will protect you from the sun and rain. The Imperial can also carry limited and defined snow loads (see below). Available dimensions of the Imperial: Width (mm): 3000 / 3500 / 4000 Projection(mm): 3014 / 3571 / 4128 / 4964 / 6078* * Additional centre posts can be added to the Imperial to cover local snow load requirements. NOTE: All posts come at a standard length/height of 3500mm. The maximum recommended height from floor to underside of the gutter is 2500mm so posts will need to be cut down accordingly. - Page 6 Max. wind resistance for all available dimensions: 24.7 m/s (10 Beaufort / 0.38 kN/m2) in open position. Placement options: Placement options: It is possible to place the Imperial canopy freestanding or mounted to a wall. It is possible to place the Pinela Deluxe freestanding or mounted to a wall. www.deponti.com Assembly Manual – Pinela Deluxe Pergola...
-
Page 7: Parts Overview
The control box requires 230V / 50-60Hz as well. Motor Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 7 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 7 Assembly Instructions - the Imperial page:... -
Page 8: Delivery Inspection
The canopy shown is an example. The type and number of components supplied depends on your order. Note: • Boxes with red label: Electronic parts like Control Unit Box. Remote Controls. • Boxes with blue label: Metal parts like U Brackets. Mounting brackets. Pillar caps. Assembly Instructions - the Imperial page:... -
Page 9: Preparation For Assembly
If the rubber seals are deformed they can be straightened with a little heat from a hot air heater or hair dryer for example. Warranty is void if the Imperial is not assembled and installed in accordance with the instructions. Assembly Instructions - the Imperial... -
Page 10: Assembly
Assembly Manual – Pinela Pergola www.deponti.com Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 8 www.deponti.com Assembly Manual – Pinela Pergola page 13 Assembly Instructions - the Imperial page: 10 5. Fix the (M4) self-drilling screw in the integrated gutter and wall mounting bracket. - Page 11 Washer M10 Stainless Steel Sealed Nut M10 Stainless Steel Add silicone sealant to edge face before pressing to corner piece to ensure a watertight seal Washer M6 Nut M6 4. Now continue to section 6.2 Assembly Instructions - the Imperial page: 11...
-
Page 12: Post And Integrated Gutter Connection
Nuts as shown at below figure. where indicated to ensure a watertight seal. DO NOT mount this nut M10 Stainless Steel M10 Stainless Steel Add silicone sealant where indicated to ensure a watertight seal NOTE: Assembly Instructions - the Imperial page: 12... - Page 13 (big rubber flap) for perfect insulation and has a clamp. The first panel should connect to the www.deponti.com Assembly Manual clamp. The clamp is already installed to the lateral side integrated gutter. Assembly Instructions - the Imperial page: 13...
-
Page 14: Panel Installation
2. Place the short pin into the housing and fix it with the clamp and the a M5 countersunk head bolt. head bolt. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 18 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 18 Assembly Instructions - the Imperial page: 14... - Page 15 4. In front of the panel type-3 there should be standard panels (the number of panels projection). The standard panels are all the same. depends on your projection). The standard panels are all the same. www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 19 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 19 Assembly Instructions - the Imperial page: 15...
- Page 16 7. The bracket’s housing will fit exactly on the pins. After that place the washer and fasten the nuts. the nuts. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 20 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 20 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 20 Assembly Instructions - the Imperial page: 16...
-
Page 17: Rear Mechanism House Placing
3. Turn and place the stretching bolts. The stretching bolts must be placed in the related housing. housing. housing. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 21 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 21 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 21 Assembly Instructions - the Imperial page: 17... -
Page 18: Place The Tube-Motor Set
1. The rail belt goes over the front and back gear. The belt connection point should be in the centre of the centre of the locomotive carrier. locomotive carrier. centre of the locomotive carrier. www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 22 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 22 Assembly Instructions - the Imperial page: 18... - Page 19 Do not tighten. www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 23 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 23 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 23 Assembly Instructions - the Imperial page: 19...
-
Page 20: Finishing
The cables should go from the corner to the box. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 24 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 24 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 24 Assembly Instructions - the Imperial page: 20... - Page 21 6. Install the side covering top profile. Screw at least every 60cm 6. Install the side covering top profile. Screw at least every 60cm Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 25 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 25 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 25 Assembly Instructions - the Imperial page: 21...
-
Page 22: Middle Pillar Connection (Optional)
If your Pinela Deluxe has a projection of 607,8cm you need to add a middle pillar to the If your Imperial canopy has a projection over 500cm or you are in an area where the wind or snow is of concern If your Pinela Deluxe has a projection of 607,8cm you need to add a middle pillar to the pergola structure. -
Page 23: Perimeter Lightning Installation (Optional)
3. Place the corner plastic between the perimeter lighting profile in the corners. www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 27 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 27 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 27 Assembly Instructions - the Imperial page: 23... - Page 24 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 28 Assembly Instructions - the Imperial page: 24...
-
Page 25: Programming Instructions
2430 Lithium 3V Battery. Replace the battery with one 2430 Lithium 3V Battery. nti.com Assembly Manual – Pinela Deluxe Pergola page 29 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 29 Assembly Instructions - the Imperial page: 25... -
Page 26: Programming Of The Panels
In order to set the back limit, press DOWN and MY button constantly. The panels will close. When the panels reach the middle of the projection press MY button. Back limit position is defined. Step 7: Reach the front limit position where panels close completely and push MY button. Motor will stop. Assembly Instructions - the Imperial page: 26... -
Page 27: Programming Of The Lights (Optional)
Transfer the channel on the current remote control to a different remote control: 1. On the current remote, select which channel you want to transfer. 2. On the current remote, keep the PROG button pressed. (LEDs will be turned on and off) 3. In the new remote, select which channel you want to choose. 4. On the new remote, press and release the PROG button. (LEDs will be turned on and off) Assembly Instructions - the Imperial page: 27... -
Page 28: Faq
Motor 5 Years with salty and chemical steam (port, coastline, Motor Parts 2 Years swimming pool, etc.). Electronic Remote Controller and Receivers 2 Years Electronic Cards, Circuits, Boards 2 Years LED Lights 2 Years Plastic Parts 2 Years Paint (Steel Components Special Parts) 1 Year Assembly Instructions - the Imperial page: 28...
