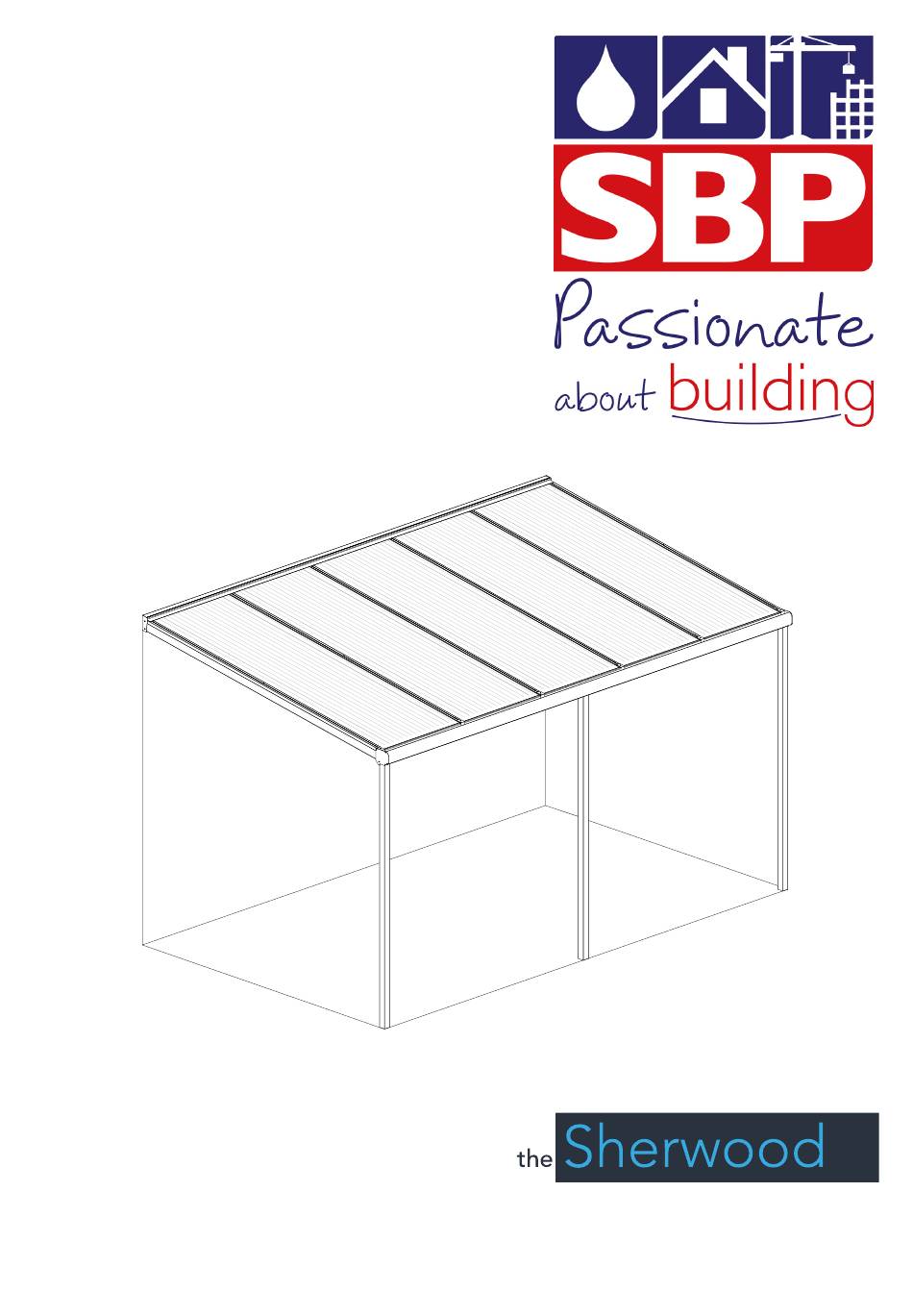

- Page 1 Assembly instructions Version: February 2022 User manual / Assembly instructions Deponti Veranda Type Nebbiolo Version: EN – February 2022 www.deponti.com Assembly Instructions - the Sherwood www.sbpuk.info page:...
-
Page 2: Table Of Contents
This manual has been compiled with the utmost care, but we cannot be held responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this manual may be reproduced in any way whatsoever. Assembly Instructions - the Sherwood page:... -
Page 3: Introduction
• Always place a ladder on a firm, stable surface. • Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes with non-slip soles, etc.) during installation or servicing. • Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that the wall and the ground are clean and dry. Assembly Instructions - the Sherwood page:... - Page 4 • Make sure you have used sealant on the canopy so it is completely waterproof. • You must maintain and clean your canopy at least once a year. During this yearly maintenance make sure all fasteners are properly tightened. • Ensure that you consult a suitably qualified gas engineer if you are placing the canopy near or above a boiler flue point. Assembly Instructions - the Sherwood page:...
-
Page 5: Product Description
3. Product description The aluminium canopy type Sherwood is composed of posts, gutter profile, wall profile, beams, polycarbonate roofing sheets, cover strips and the necessary assembly materials. The Sherwood canopy is available as standard in widths of 4045, 5045 or 6045 as a single section. The roof can have a projection of 2500, 3000 or 3500mm. Details Colours RAL9001 / RAL7024 Gutter standard half-round... -
Page 6: Parts Overview
4.1 Exploded view 4.2 Delivery Inspection The canopy shown in this manual is a 5x3 metre Sherwood. This merely serves as an example. The type and number of components supplied depends on your order. Note: Always carefully check the delivered items to ensure that the quantity and quality are correct. Any visible defects must be reported within 24 hours of delivery. -
Page 7: Parts List
4.2x16 + bit 50mm gutter profile 1x sealing rubber 1x sealing rubber rubber wall profile (option) rubber 60 mm wall profile 50mm 1x sealing rubber 1x sealing rubber (option) Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page:... - Page 8 Assembly Manual – Nebbiolo Veranda ponti.com page Assembly Manual – Nebbiolo Veranda eponti.com page Assembly Manual – Nebbiolo Veranda Assembly Manual – Nebbiolo Veranda Assembly Manual – Nebbiolo Veranda ponti.com ponti.com ponti.com page page page Assembly Instructions - the Sherwood page:...
-
Page 9: Preparation For Assembly
Note: This sealant is not suitable for sealing the polycarbonate sheets. If you need to seal your sheets, because you have a rainwater discharge (downspout) pipe run through it for example, we have special transparent sealant in our range. Assembly Instructions - the Sherwood page:... - Page 10 If the rubber seals are deformed, they can be straightened again with a little heat, from a hot air heater or hair dryer for example. Remove protective film • It is recommended that the protective film be removed from the aluminium parts and the roofing sheets at the last possible moment, to prevent damage. When mounting the roofing sheets, however, the edges of the protective film must be pulled back a few centimetres towards the middle of the sheet so the film does not get stuck in the profiles; otherwise it will be difficult to remove later. Warranty is void if the Sherwood canopy is not assembled and installed in accordance with the instructions. Assembly Instructions - the Sherwood page: 10...
-
Page 11: Measuring & Determining Dimensions
Distance from back of wall profile to centre of rainwater discharge D + 32,5 mm: Distance from back of wall profile to centre of rainwater discharge pipe. pipe. +32,5 mm +32,5 mm www.deponti.com www.deponti.com Assembly Manual – Nebbiolo Veranda Assembly Manual – Nebbiolo Veranda page page Assembly Instructions - the Sherwood page: 11... -
Page 12: Height Adjustments
250 cm to 220 cm. You therefore shorten your posts by 30 cm or you place the posts 30 cm in the ground, so the bottom of your gutter is at a height of 220 cm. Your wall profile must therefore be lowered by 30 cm, which means that the bottom of the wall profile must be placed at 296 cm - 30 cm = 266 cm. 5.2.2 canopy projection The basic dimensions of the canopy are approximate. The exact dimensions from the rear of the wall profile to the inside of the upright can be found in the table above. Example: A 3 metre projection canopy is not exactly 3 metres. Check the table above for exact sizes in centimetres. Assembly Instructions - the Sherwood page: 12... -
Page 13: Roof Width
5.2.3 canopy width Deponti verandas can be delivered in three standard widths. The Sherwood range of canopies can be delivered in three standard widths. The gutter profile and wall profile are supplied in multiple lengths of 4045, 5045 or 6045 mm. -
Page 14: Assembly
Place the wall profile on the line and then mark the holes that you pre-drilled in your wall profile. 3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile is level. is level. 3. Now use a concrete drill bit with a diameter of 8 mm to drill the holes. Make sure the wall profile is level. Ø8 mm Ø8 mm Assembly Instructions - the Sherwood page: 14... - Page 15 6. Apply sealant the top edge of the wall profile (between the wall and the wall profile) to make a 6. Apply sealant to the top edge of the wall profile (between the wall and the wall profile) to make a good seal. good seal. Strike off the sealant to make it smooth and waterproof. Strike off the sealant to make it smooth and waterproof. cleaner Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 15...
-
Page 16: Installing Posts, Gutter And End Beams
Now drill holes in the ground and attach the base plates with two suitable ground screws. ½B -32,5 mm ½B -32,5 mm D+32,5 mm (optie) (optie) D+32,5 mm www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 16... - Page 17 Place the PVC rainwater discharge pipe in the rainwater discharge post and connect it to the 90° rainwater discharge sleeve. ½B -32,5 mm ½B -32,5 mm 2 (optie) Assembly Instructions - the Sherwood page: 17...
-
Page 18: Pre-Drilling The Gutter (Option)
3. Now carefully drill the hole in the gutter with the hole saw (ø50-60 mm). 4. Fit the optional leaf catcher or EPDM rubber drain ring in the hole. Ø50 Ø50 32,5 Assembly Instructions - the Sherwood page: 18... -
Page 19: Installing The Gutter
Be careful not to drill and screw through the PVC pipe in one of the posts! www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 19... -
Page 20: Installing The End Beams
2. Place the left and right end beams in both the gutter profile and the wall profile, one by one. 2. Place the left and right end beams in both the gutter profile and the wall profile, one by one. Make sure that Make sure that the outer edges of the end beams are flush with the ends of the gutter profile and the outer edges of the end beams are flush with the ends of the gutter profile and wall profile. wall profile. Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 20... - Page 21 Make sure the roof is completely square. Secure the end beams with the second screw. Screw the end beams to both the gutter profile and wall profile from the top with one short screw per end. Make sure the roof is completely square. Secure the end beams with the second screw. Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 21...
-
Page 22: Installing The Middle Beams
2. Place the first middle beam in the wall profile and gutter profile at the desired distance. 3. Screw the middle beam to both the gutter profile and wall profile with 2 short screws. 955 mm 955 mm 1000 mm Assembly Instructions - the Sherwood page: 22 www.deponti.com Assembly Manual – Nebbiolo Veranda page... - Page 23 5. Screw the middle beams to both the gutter profile and wall profile with two short screws. 5. Screw the middle beams to both the gutter profile and wall profile with two short screws. 955 mm 955 mm 955 mm 955 mm Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 23...
-
Page 24: Preparing And Installing The Roofing Sheets
These condensation profiles have pre-drilled holes for drainage of the condensation water. 2. Place the condensation profiles (no. 11B) at the gutter end of the roofing sheets, where the perforated anti- dust tape is located. These condensation profiles have pre-drilled holes for drainage of the condensation water. 980 mm UV-side up! 980 mm www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 24... - Page 25 6. Now screw the end cover strip to three points on the end beam with long stainless steel screws (1 top – 1 bottom – 1 middle). C LIC K ! www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 25...
- Page 26 4. Now screw the middle cover strip to three points on the middle beam with long stainless steel screws (1 top – 1 bottom – 1 middle). C LIC K ! Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 26...
- Page 27 6. Now screw a sheet stopper at the gutter end of each middle beam to ensure secure attachment. Note: securing the end cover strips comes later. Note: securing the end cover strips comes later. Assembly Instructions - the Sherwood page: 27...
-
Page 28: Finishing
3. Screw the wall profile side cover onto wall profile with two short screws. 3. Screw the wall profile side cover onto wall profile with two short screws. www.deponti.com Assembly Manual – Nebbiolo Veranda page www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 28... - Page 29 6. Apply sealant the inside of the gutter so it is waterproof. 6. Apply sealant the inside of the gutter so it is waterproof. Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 29...
- Page 30 7. Now attach the sheet stoppers to the cover strips of the end beams with the short screws. 8. Remove the protective film from the roofing sheets and the aluminium parts. 8. Remove the protective film from the roofing sheets and the aluminium parts. www.deponti.com Assembly Manual – Nebbiolo Veranda page Assembly Instructions - the Sherwood page: 30...
- Page 31 9. Secure your posts with the second short screw. 11. Congratulations! The roof is now finished! 11. Congratulations! The roof is now finished! 11. Congratulations! The roof is now finished! Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Manual – Nebbiolo Veranda www.deponti.com page Assembly Instructions - the Sherwood page: 31...
-
Page 32: Maintenance
Dispose of the product according to local laws and regulations. 9. Warranty conditions Warranty in accordance with the warranty conditions and our general terms and conditions. These can be found on our website. 10. Contact IMPORTANT: We are your first point of contact for questions and comments. Assembly Instructions - the Sherwood page: 32...
