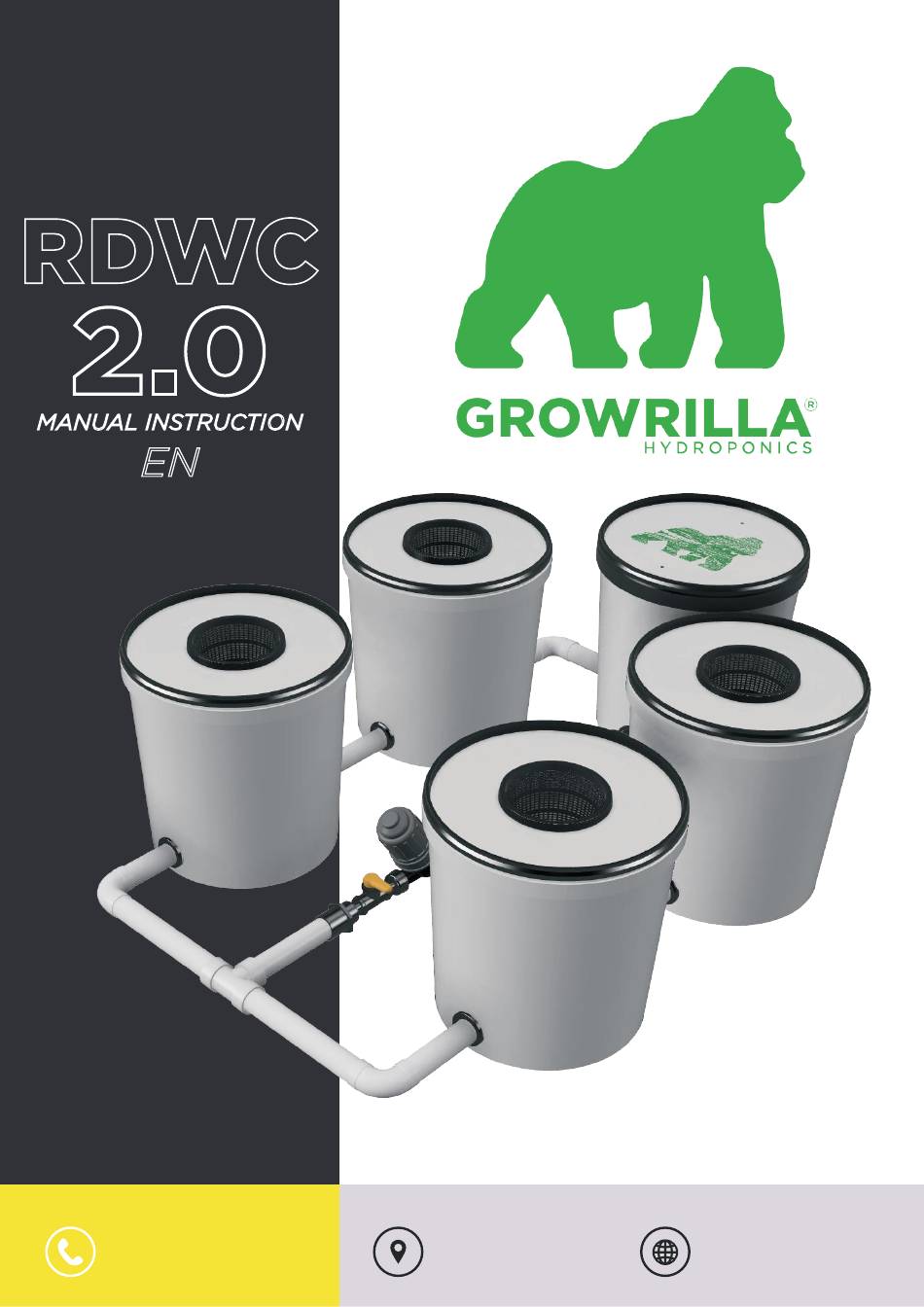

RDWC
2.0
MANUAL INSTRUCTION
EN
v
Growrilla is a 100% Italian brand of
hydroponic farming systems, desi-
gned and made in Italy by growers
for growers.
+39 329 3237168
Strada Comunale da Bertolla
all'Abbadia di Stura, 140
10156 Torino - ITALY
www.growrillahydroponics.com
info@growrillahydroponics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the RDWC 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GROWRILLA RDWC 2.0

Summary of Contents for GROWRILLA RDWC 2.0

  • Page 1 RDWC MANUAL INSTRUCTION Growrilla is a 100% Italian brand of hydroponic farming systems, desi- gned and made in Italy by growers for growers. Strada Comunale da Bertolla +39 329 3237168 www.growrillahydroponics.com all’Abbadia di Stura, 140 info@growrillahydroponics.com 10156 Torino - ITALY...
  • Page 2 Growrilla is not simply a system, first of all it wants to be a resource capable of providing the grower with the tools necessary to get the most, because...
  • Page 3 INDEX SYSTEM COMPONETS INFO PAGE ASSEMBLY AND SET UP INFO PAGE CONTROLLER POT FITTING KIT INFO PAGE AIR DISTRIBUTION INFO PAGE SYSTEM TESTING INFO PAGE UPGRADE INFO PAGE “Hello and congratulations for choo- INFO PAGE sing a Grorilla RDWc system. I’m your guide who will help you to assemble and set up your RDWc system.
  • Page 4 LEGENDA The presence of this symbol indicates to pay the attention to the subject matter. Rotate and screw. Lubricate. Risk of leakage , pay attention to this step. Ceck that everything has been done right. Use pure water. Scan this QRcode to download the manual directly on your electronic device.
  • Page 5 Read carefully this instruction manual before starting to assembly the system - Growrilla will NOT be responsible for any damage caused by improper installation or consequential damage to person or property caused by the use of this product even if it is determined to be defective.
  • Page 6 GROWRILLA COMPONENTS AREA 1 - SYSTEM COMPONENTS CONTROLLER POT GROWING POT CONTROLLER GROWING RDWC 2.0 RDWC 2.0 POT LID POT LIDS SI-GRC32VDC19 SI-GRC32VPAS19 ID-CONGRC19 SI-GRCCOP191F NET POT 14CM 32mm WATERPROOF 32MM ELBOW 32MM TEE RUBBER GASKETS PUSH FIT PUSH FIT...
  • Page 7 AREA 2 - CONTROLLER POT COMPONENTS CONTROLLER POT KIT HX2500 SI-GRC32KVCHX WATER PUMP WATER PUMP IMPUT HAILEA HX2500 JOINT HX2500 ID-PACHX2500 SI-GRCHX25GP CONTROLLER POT KIT HR1000/1500 SI-GRC32KVCHR WATER PUMP HAILEA HR1000 - 1050 L/H THREADED THREADED THREADED COUPLING HR1500 - 1400 L/H M F 3/4X1/2 3/4X1/2 ELBOW 90 3/4 MF...
  • Page 8 GROWRILLA COMPONENTS AREA 3 - AIR DISTRIBUTION COMPONENTS SILICON AIR HOSE AIR HOSE PVC AIR HOSE AIR GASKETS 6X4MM 12X8MM 6X4MM L30CM TU-PVCTH0812 PVC64030 AIR ELBOW FITTING AIR MANIFOLD AIR MANIFOLD AIR MANIFOLD 3X5MM 12X6MM 1 WAYOUT 12X6MM 2 WAYOUT...
  • Page 9 AREA 4 - ADDITIONAL COMPONENTS FLEXIBLE TANK FLEXIBLE TANK FLOAT VALVE HOSE 98 LT CONNECTION HOSE PVC DN16 ID-CONTF098 SI-GRCTF16MT2 ID-VALG12178 TU-PVCGFP16 ID-CONTF157 ID-CONTF225 ID-CONTF500 ID-CONTF700 EXTENSION PIPE DELIVERY EXTENSION PIPE DELIVERY MANIFOLD A - L60 MANIFOLD B - L40 SI-GRC32MMAPR SI-GRC32MMBPR...

  • Page 10: System Installation

    SYSTEM INSTALLATION STEP 1 SYSTEM INSTALLATION a) UNBOX. Place all parts adjacent to the grow area and keep all the components separately. All the components are divided by type, this will make it easy to recognize them and will help you to understand where they have to be used.
  • Page 11 RDWC SYSTEM CONFIGURATION 2/3/4 ROWS RDWC 2 RDWC 4 RDWC 6 RDWC 8 RDWC 9 RDWC 12 RDWC 16 RDWC 18...
  • Page 12 DELIVERY AND RETURN MANIFOLD 2 ROWS 3 ROWS SI-GRC32MMA SI-GRC32MMB 4 ROWS SI-GRC32MRB SI-GRC32MRA SI-GRC32MMB SI-GRC32MRA...
  • Page 13 d) DELIVERY MANIFOLD ASSEMBLY DELIVERY MANIFOLD SI-GRC32MMA 2/3 ROWS RC-PPBG90322B TU-PVC32012 DELIVERY MANIFOLD SI-GRC32MMB 3/4 ROWS RC-PPBT90323B RC-PPBG90322B TU-PVC32012 TU-PVC32045 RETURN MANIFOLD SI-GRC32MRA 2/4 ROWS RC-PPBT90323B RC-PPBG90322B x2 TU-PVC32012 TU-PVC32020 RETURN MANIFOLD SI-GRC32MRB 3 ROWS RC-PPBT90323B RC-PPBG90322B x2 TU-PVC32012 TU-PVC32020...
  • Page 14 DELIVERY AND RETURN MANIFOLD How to assemble the Return manifold + in line filter whit valve RETURN MANIFOLD SI-GRC32MRA 2/4 ROWS MALE FITTING ¾ Connect the RETURN MANIFOLT to the VALVE of the IN LINE FILTER RACCORDO MASCHIO 3/4" SI-GRC32CM016 RETURN MANIFOLD SI-GRC32MRB 3 ROWS...
  • Page 15 f) Put all the pots on the floor of your grow area looking at air hole the shape of your system ( 2, 3 rubber hole or 4 rows) and make sure that the air hole are in the same position as shown in the pictu- re below.
  • Page 16 ASSEMBLY SYSTEM h) DELIVERY MANIFOLD: connect the controller pot to the first two growing pot whit the DELIVERY MANIFOLD. System 2 ROWS (RDWC 2-4-6-8) SI-GRC32MMA System 3 ROWS (RDWC 9-18) SI-GRC32MMA SI-GRC32MMB...
  • Page 17 System 4 ROWS (RDWC 12 - 16) SI-GRC32MMB SI-GRC32MMB h) Growing pot connection. TU-PVC32030 INSERT PIPES DISTANCE BETWEEN POTS:. lubrica- te pipes and gaskets as the distance between pots can be explained before then con- adjusted simply sliding the pipes nect all the growing pots.
  • Page 18 ASSEMBLY SYSTEM i) RETURN MANIFOLD: connect the last two pots at the back of the system with the relative RETURN MANIFOLD. System 2/4 ROWS (RDWC 2-4-6-8-12-18) SI-GRC32MRA System 3 ROWS (RDWC 9-18) SI-GRC32MRB...
  • Page 19 ASSEMBLY SYSTEM STEP 3 CONTROLLER POT KIT a) Unbox. refer to the type of system you purchased to identify the right controller pot kit. b) Water Pump. di erent system size (n. of pots) got dif- ferent water pump and di erent controller pot kit. CONTROLLER POT KIT HX2500 SI-GRC32KVCHX HX2500...
  • Page 20 ASSEMBLY SYSTEM CONTROLLER POT KIT HR1000 /15000 SI-GRC32KVCHR HR1000 RDWC 8 Pompa. Preparare TRDWC 9 il kit pompa prima di alloggiare nel vaso. HR1500 RDWC 12 RC-FILPRLBC HOW TO ASSEBLE THE CONTROLLER POT KIT : 1 - connect the water pump to the bulkhead 2 - connect the controller kit to the water pump RC-FIL90CCFMGM RC-FIL90CCMF...
  • Page 21 CONTROLLER POT KIT EDEN 135 SI-GRC32KVC135 VCD135 RDWC 16 Pump. Prepare the RDWC 18 pump kit before pla- cing it in the pot. RC-FILPRLBC HOW TO ASSEBLE THE CONTROLLER POT KIT : 1 - connect the water pump to the bulkhead 2 - connect the controller kit to the water pump RC-FIL90CCFMGM RC-FIL90CCMF...
  • Page 22 RETURN HOSE KIT The RETUR HOSE KIT connect the RETURN MANIFOLD whit the WATER PUMP and complete the recirculating system. The RETURN HOSE KIT is supplied already assembled 2 ROWS SI-GRC32AS02 RDWC2 SI-GRC32AS04 RDWC4 SI-GRC32AS06 RDWC6 SI-GRC32AS08 RDWC8 RETURN HOSE : length is variable accor- ding to the number of pots envolved 3 ROWS SI-GRC32AS09...
  • Page 23 SI-GRC32AS12 RDWC12 4 ROWS SI-GRC32AS16 RDWC16 RETURN HOSE : length is variable accor- ding to the number of pots envolved Under. keep return hose kit under the PVC PIPES 32MM...

  • Page 24: Air Distribution

    AIR DISTRIBUTION LINE KIT STEP 3 AIR DISTRIBUTION a) Info. the air distribution line is used to send the air from the AIR PUMP to the AIR STONES set inside the growing pots b) AIR PUMP. have to be set above the system water level- NOTE: Place the air pump above the system water level.
  • Page 25 f) AIR JOINT ( 3-4 rows system) : made for ¾ rows system , the Air Joint came preassembled. SI-GRC50GCA3F 3 ROWS L100 SI-GRC50GCA4F 4 ROWS f) AIR HOSE 12X8MM. Connect the water pump to the AIR DISTRIBUTION LINE, NOZZLE. Carefully screw onto the pump and con- nect the netted hose.
  • Page 26 AIR DISTRIBUTION LINE KIT f) AIR MANIFOLD 12X6 ( 4 WAY OUT): Air manifolds are used to bring air from the main distribution line to every growing pot. End cap and the air manifold 4 way out it come with the swivel lock system, and have to be assembled as shown in the picture below Unscrew the swivel lock from the fitting.
  • Page 27 AIR DISTRIBUTION LINE KIT g) AIR STONE : The air stone kit is composed by 3 di erent pieces. RC-PG900305 air stone. Handle the air stone whitcare, they can be fragile. PVC64030 ID-POR1002020B h) AIR DISTRIBUTION LINE: the air is distributed through a 12mm main pipe and by the air manifold which divert it towards the respective growing pots.
  • Page 28 RDWC 2 - 2 ROWS AIR PUMP ACO 9602 ID-PAR9602 RDWC2. in this system the air stones are con- nected directy to the air stones by the silocon air hose 6x4mm RDWC 4 - 2 ROWS AIR PUMP V-20 ID-PARV20 RC-PGSMU1206U4 RC-PGSTAP012 TU-PVCTH0812...
  • Page 29 AIR DISTRIBUTION LINE KIT RDWC 8 - 2 ROWS AIR PUMP ET40 ID-PARET40 RC-PGSMU1206U4 RC-PGSTAP012 TU-PEN12100B to air pump L100 TU-PVCTH0812 RDWC 9 - 3 ROWS AIR PUMP ET40 ID-PARET40 RC-PGMU1206U1 RC-PGMU1206U2 RC-PGSMU1206U4 RC-PGSTAP012 SI-GRC50GCA3F TU-PEN12050B TU-PVCTH0812 to air pump...
  • Page 30 RDWC 12 - 3 ROWS AIR PUMP V-60 ID-PARV60 RC-PGMU1206U2 RC-PGSMU1206U4 RC-PGSTAP012 SI-GRC50GCA3F TU-PEN12100B TU-PVCTH0812 to air pump L100 L100 GOMITO ARIA 11MM RC-PG9010 TAPPO ARIA 11MM RC-PGSTAP012...
  • Page 31 AIR DISTRIBUTION LINE KIT RDWC 12 - 4 ROWS AIR PUMP V-60 ID-PARV60 RC-PGMU1206U2 RC-PGSMU1206U4 RC-PGSTAP012 SI-GRC50GCA4F TU-PEN120050B TU-PVCTH0812 to air pump...
  • Page 32 RDWC 16- 4 ROWS AIR PUMP V-60 ID-PARV60 RC-PGSMU1206U4 RC-PGSTAP012 SI-GRC50GCA4F TU-PEN12100B TU-PVCTH0812 to air pump L100 L100...
  • Page 33 AIR DISTRIBUTION LINE KIT RDWC 18 - 3 ROWS AIR PUMP ET80 ID-PARET80 RC-PGMU1206U2 RC-PGSMU1206U4 RC-PGSTAP012 SI-GRC50GCA3F TU-PEN12100B TU-PVCTH0812 to air pump L100 L100 L100 L100...

  • Page 34: System Testing

    SYSTEM TESTING STEP 3 SYSTEM TESTING Now that your system has been assembled let’s proceed with the testing of the system before starting with load the solution and start growing. 1) FITTING. Make sure you have tightened all the threaded fittings across the RETURN HOSE 16MM from the IN LINE FILTER KIT to the WATER PUMP.
  • Page 35 2) GASKETS and PIPES CONNECTION : Fill the system with water until the connecting pipe will be covered 1 cm. Switch on the water pump and wait for about 15 min, let the water circulate throughout the system and look for any water leak. If you recognize a leak go to the TROUBLESHOOTING CHART and find the right way for fixing it.
  • Page 36 SYSTEM TESTING 4) AIR DISTRIBUTION: connect the air pump to the power supply and check that all the air stone works fine. 5) FILL TEH SYSTEM : Fill the system with water up to the level of the bottom of the net pots. 6) Test.
  • Page 37 7) NUTRIENT SOLUTION: now you are ready to make your nutrient solution. Use the control pot for ceck your EC and pH level . Calibrate the solution as needed by placing fertilizers or pH regulators in the control pot. Let the solution circulate inside the system and let the EC and pH values stabilize, then double check and correct if needed NB: choose your cultivation range well, on our website you can find a wide choice of fertilizers, additives and tools, as well as tutorials for...
  • Page 38 CUSTOMIZE SYSTEM FASE 5 MODIFY AND CUSTOMIZE YOUR SYSTEM The new GROWRILLA RDWC 2.0 systems can be easily modified and customized according to the grower's needs. Everything is made particularly simple thanks to the use of push fit fittings that allow them to be disassembled and reas- sembled as needed.
  • Page 39 a) EXTENDED PIPES For example, you can extend the distance of the control pot from the growing pots to place it outside the grow tent. 2 FILE 3 FILE 4 FILE...
  • Page 40 ADDITION CHILLER b) CHILLER. you can connect a chiller or a refrigeration unit to the system in order to keep the water temperature under control. HX2500 RDWC 1 RC-FIL90CCFFGM RDWC 2 CHILLER IN CHILLER OUT CHILLER Switch o the recirculating water pump.
  • Page 41 Run the chiller whit HR1000/1500 water pump HR1500 RC-FIL90CCFFGM RDWC 9 RDWC 12 VCD135 RDWC 16 RDWC 18 Gently unscrew the elbow Connect the CHILLER IN / fitting of the pump outlet ( SYSTEM DOWNLOAD fitting handle whit care) and set them as show in the picture B RC-FIL90CCFFGM RC-FIL90CCFFGM...
  • Page 42 SYSTEM CLEANING For system downloading operations, refer to the methods listed below. Switch o the water pump Connect the CHILLER IN / SYSTEM DOWNLOAT to a pipe and send it to a drainage area Switch on the pump and let the water let the water drain out of the system until there is about 3 cm of solution left (...
  • Page 43 SYSTEM DOWNLOAD SYSTEM EXPANSION All the Growrilla RDWC 2.0 systems can be expanded by adding more pots in order to increase the system size and as well going from a 2 rows system to 3 or 4 rows system. Look at the picture below for understand how the extend...

  • Page 44: System Expansion

    SYSTEM EXPANSION 3 ROWS The metod remain the same as shown in the picture above.
  • Page 45 4 ROWS The metod remain the same as shown in the picture above.
  • Page 46 RDWC HOW DOES IT WORK? RDWC HOW DOES IT WORK? DWC, aka Deep Water Culture is one of the best performing methods for growing hydroponic plants. The plant grows with the roots immersed in a nutrient solution constantly oxygenated by an air pump. The high value of dissolved oxygen available directly to the plant’s roots increases growth processes, accelerating deve- lopment and increasing the weight of the crop.
  • Page 47 GROWING IN A SYSTEM The key to cultivation with deep water culture systems lies in the oxygenation nutrient solution and specifically in the dissolved oxygen content within the nutrient solution. In each cultivation pot there is a porous stone connected to an aerator by means of an air distri- bution line.
