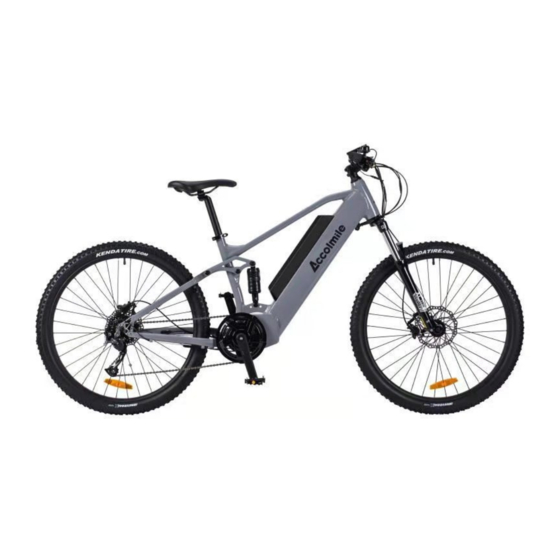

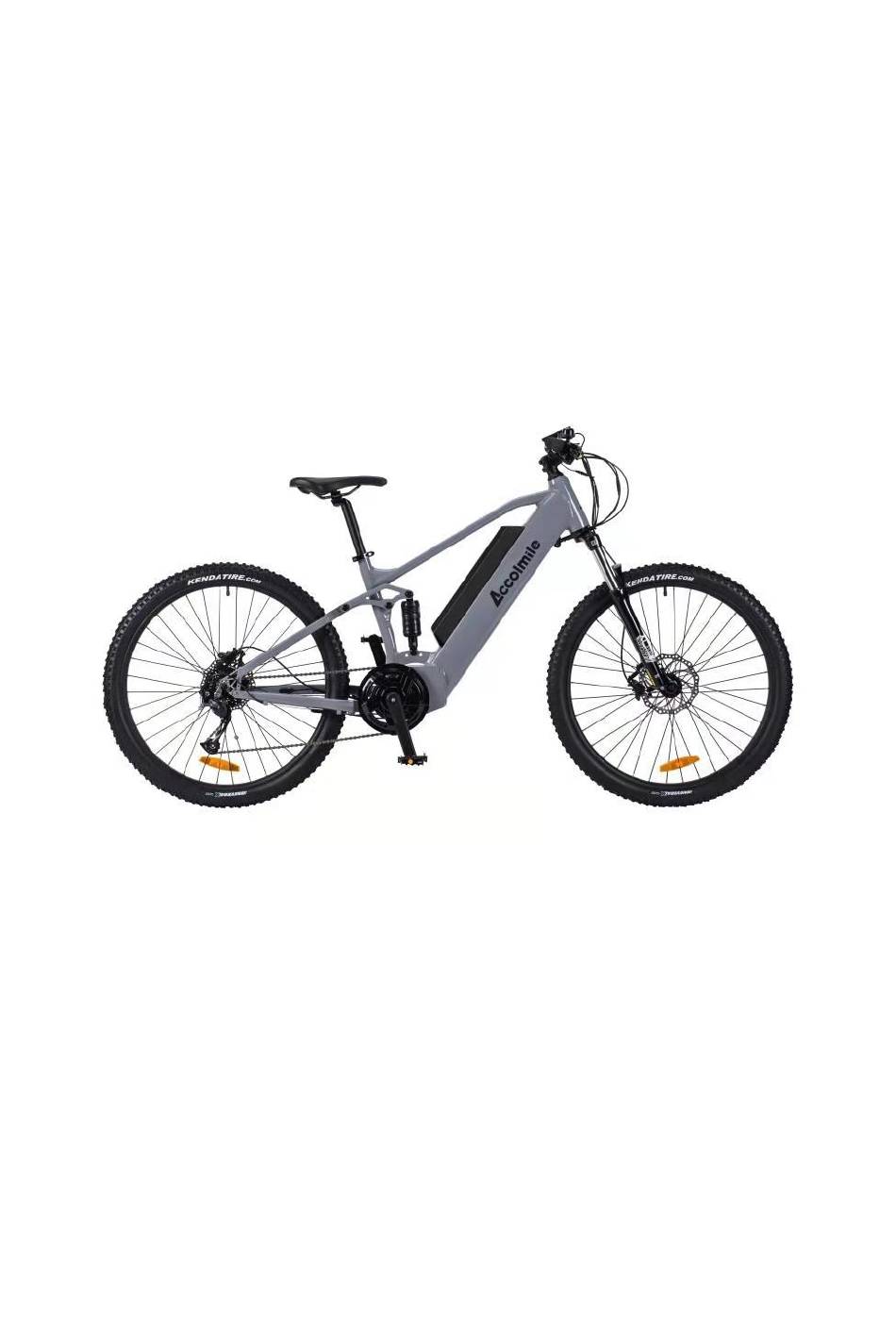

- Page 1 Owner’s Manual Accolmile A-27541002MM 27.5” MTB EBIKE We strongly recommend that you read this entire manual before using your Accolmile bike.
-
Page 2: Table Of Contents
Content Introduction............................. 3 Caring for your Accolmile bike and pre-use checks.................4 Before you set off for the first time..................4 Before each use........................5 Battery care..........................6 Recharging your battery......................7 Waterproof..........................7 Maintenance and adjustments....................8 Technical specifications & performance..................9 Simple Trouble shooting......................10 Controls and equipment ........................ -
Page 3: Introduction
1 Introduction Thank you for choosing a Accolmile electric bicycle. Before you use your Accolmile electric bike it is important that you read this manual carefully. If there is anything you do not understand completely, please contact us. Please observe traffic regulations, and do not lend your bicycle to anyone who is unfamiliar with it. -
Page 4: Caring For Your Accolmile Bike And Pre-Use Checks
2 Caring for your Accolmile bike and pre-use checks Your Accolmile bike has been thoroughly tested at the factory prior to delivery and undergone a pre- delivery inspection by your Accolmile Stockist. It is very important that you check the bike thoroughly before its first use. Equally important are frequent and regular spot-checks, as they will protect you and your Accolmile bike. -
Page 5: Before Each Use
To set the assist levels, toggle with the + and – buttons (see fig 1) 2.1.10 For full information regarding the LCD display please refer to separate hand book available from Accolmile Bikes or your retailer. 2.1.11 To avoid the use of a bicycle trailer or outboard bicycle. -
Page 6: Battery Care
Your Accolmile bike comes with a high quality lithium ion battery. All lithium batteries need to be looked after to ensure years of full use. The latest Accolmile batteries come with new technology installed to assist you in looking after your battery and will be dealt with separately. -
Page 7: Recharging Your Battery
Never open a battery case, try and fix the battery or give it to any one other than a registered Accolmile Stockist for maintenance. (Failure to comply will void the warranty) iv. If a battery is or appears to be damaged or overheating for any reason, do not use the bike and immediately return the battery to your retailer for advice and a safety check. -
Page 8: Maintenance And Adjustments
2.5.6 Please avoid frequent bike washing, the best bike washing cycle is 10-20 days, too frequent will accelerate the aging of bike paint; 2.5.7 To protect the environment, please try to wash the bike in the place where the sewer pipe is laid to prevent the road area water from affecting the traffic safety. -
Page 9: Technical Specifications & Performance
2.6.7 Lubrication: 6.7.1. Lubricate all pivot points on the derailleur and chain with light oil or chain lube on a regular basis. 6.7.2 Once a year, have the dealer re-grease the headset bearings, front wheel bearings and pedal bearings. 2.6.8 Recommended tools for proper maintenance: Torque wrench with lb/in or N/m gradations 2, 4, 5, 6, 8mm Allen wrenches... -
Page 10: Simple Trouble Shooting
3.1 Battery on/off switch and lock 3.1.1 Your Accolmile bike is supplied with two identical keys. The key locks the battery to the bike. 3.1.2 The battery is connected to the electrical system of the bike automatically when you slide... -
Page 11: The On/Off Button And Light Button
directly above the frame to turn on the power, press the button again to turn off the power. Fig 2 3.1.3 When the battery has been turned on, the bike is now ready for use. The on/off button on (the top button c- on the handle bar control) isolates the power from the bike. When the on/off button is pressed for 3 seconds the LCD symbols will become visible. -
Page 12: Pedal Assist Power
3.3 Pedal assist power 3.3.1 When you first ride your Accolmile bike, you will notice that the motor will start working when you have turned the pedals through between 90 and 180 degrees. 3.3.2 You will find the assist buttons(marked with up and down arrows)on the handlebar control. -
Page 13: Brakes
3.4.6 The battery capacity indicator, built into the top of the battery provides a similar indication and operates on the same principle. 3.4.7 Under heavy power situations (full throttle or high levels of assist) the battery voltage will temporarily dip resulting in the capacity meter showing a lower level of charge. When the heavy power usage is reduced, the capacity meter will rise again as the battery naturally recovers its voltage. -
Page 14: The Connectors
3.7 Quick release saddle height adjustment 3.7.1 Your Accolmile bike has been fitted with a quick release saddle post fitting to facilitate the movement of the saddle height. 3.7.2 It is important that the knurled nut on the fitting is tightened so the post will not move in the bike tube. -
Page 15: Chain And Drive Wheel Removal
½ turn anticlockwise when viewed from the rear. This will compensate for the cable stretch. If necessary, repeat the operation again until smooth gear selection is obtained or return your bicycle to your Accolmile dealer for further adjustment. -
Page 16: Warranty, Battery Maintenance And User Responsibilities
1 to 9. 4 Warranty, battery maintenance and user responsibilities Repair or replacement of components Only use this product in accordance with this user manual. Accolmile offer a limited warranty on the following items. Main frame... - Page 17 Exceptions to Limited Warranties Your Accolmile bike may not be covered by our warranty for any of the following reasons: Damage resulting from misuse, not maintaining the vehicle or not following the guidelines within our user guide or using the vehicle for any kind of competitive sport.
-
Page 18: Extra Recommendations And Warnings
A key point to remember when choosing a battery is to check the battery capacity (V x Ah = Wh the battery’s capacity) i.e. 48V x 17.5Ah = 840Wh. Choosing a larger battery not only gives you more power and range but is often more economical in the long term. 4.1.4 The key to having a long lasting battery is to look after it. -
Page 19: Service
The PDI is a critical part of the overall Quality Assurance process and must be completed by the supplying dealer followed by a test ride and sign off before passing the bike to the customer. The following items below are a generic list for all current Accolmile models and must be covered during the PDI. - Page 20 release. user manual. Check tire pressure front and rear. Inflate to correct pressure. Ensure there is no noise or Check and adjust action of front and rear brakes. squeal. Check smooth action and adjustment of front suspension forks. Check adjustment of bearings in head stock. Adjust if necessary.
- Page 21 - check noise and performance levels. Notify our support if any manufacturing faults are identified, providing photographs if possible of any faulty components. Run through the bike operation, battery charging and storage instructions and offer safety advice to the customer. Copyright 2021 Accolmile...
