Using the Main Unit with <C-HDXM> Tuner Board
Instruction Manual for ONKYO TX-NR1000 / Integra DTR-10.5 / Integra Research RDC-7.1
Thank you for purchasing the Tuner Board <C-HDXM>. When this optional board is inserted into option slot "K" on the main
unit's rear panel, it can be used as the XM/FM Stereo/AM tuner terminal. Furthermore, <C-HDXM> becomes capable of sup
porting HD Radio™ functionality and RDS as well.
Usage varies depending on the main unit to which you want to add the optional board. Refer to the user's manual that comes with
your main unit before starting operations.
For some main units, instructions may be provided in the user's manual. In this case, please find instructions in the manual
that comes with your main unit.
Caution:
• Before connecting or disconnecting the board, make sure to power off the main unit, and then unplug the power cord from the
AC outlet. Connecting or disconnecting the board while power is being supplied to the main unit may cause failure.
• Plug the optional board into the individual designated slot. Plugging it into the wrong slot may cause failure.

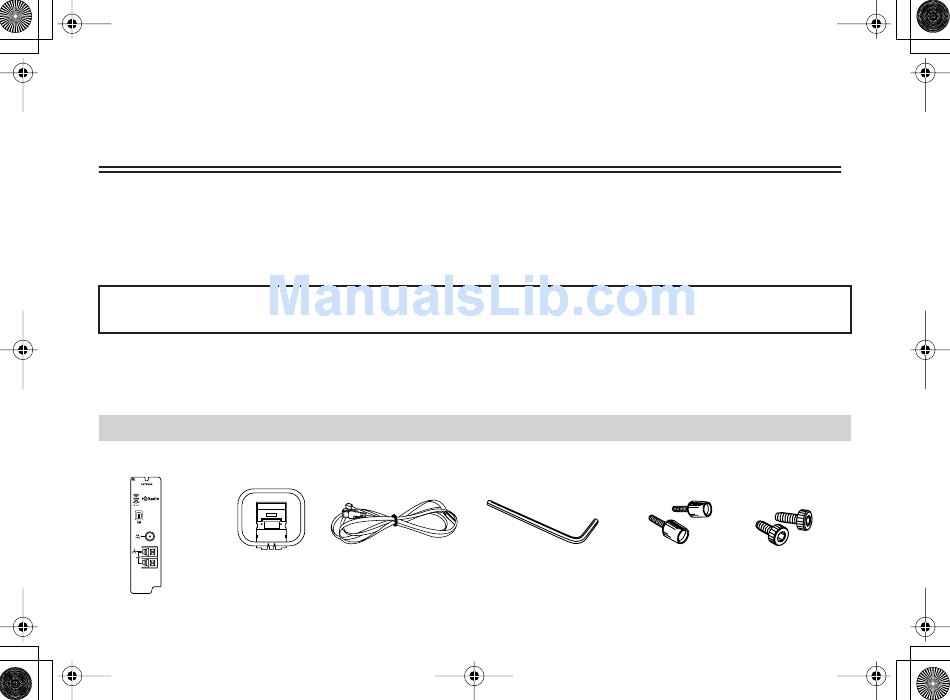

Supplied Accessories
Verify the following items are included in the package:
Board
AM antenna
FM antenna
Allen wrench (1 EA)
Hand screws for
Hexagon
removing board
screws
-
1
Advertisement
Table of Contents
Related Manuals for Onkyo C-HDXM
Summary of Contents for Onkyo C-HDXM
-
Page 1: Supplied Accessories
Instruction Manual for ONKYO TX-NR1000 / Integra DTR-10.5 / Integra Research RDC-7.1 Thank you for purchasing the Tuner Board <C-HDXM>. When this optional board is inserted into option slot “K” on the main unit’s rear panel, it can be used as the XM/FM Stereo/AM tuner terminal. Furthermore, <C-HDXM> becomes capable of sup porting HD Radio™... - Page 2 Installing Board Power off the main unit, and then unplug the power cord from the AC outlet. Remove the “K” sub-panel or board from the main unit to which you want to add on the optional board. I If any other slot is already used: Remove the hexagon screws, one top and one bottom of slot “K,”...
- Page 3 Insert the option board along the upper and lower guide rails. When the board hits the connector, T VIDE O apply a little more pressure so that REM OTE TR IGG ER CON TRO OU T the connector can be inserted com- MAX .
-
Page 4: Listening To Xm Satellite Radio
Using XM Satellite Radio Listening to XM Satellite Radio Important XM Radio Information To receive XM Radio you need to purchase an optional XM Passport System and subscribe to XM’s paid pro- gramming. Please note that XM is currently only licensed to provide service to the contiguous 48 United States (not available in Alaska and Hawaii) and portions of Canada. -
Page 5: Connecting The Xm Passport System
A warning against reverse engineering: It is prohibited to copy, decompile, disassemble, reverse engi- neer, or manipulate any technology incorporated in tuner boards compatible with the XM Satellite Radio system. Fur- ® thermore, the AMBE voice compression software included in this product is protected by intellectual property rights includ- ing patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. - Page 6 You can use your main unit and the remote controller supplied with your main unit to perform XM Radio operations. Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the remote controller, respectively, and their corresponding operations.
-
Page 7: Setting The Satellite Radio Mode
Setting the Satellite Radio Mode Press the [SETUP] button. Use the [ ]/[ ] buttons to select “Hardware Setup,” and then press [ENTER]. Use the [ ]/[ ] buttons to select “SAT Radio,” and then press [ENTER]. Use the [ ] buttons to select “XM.”... -
Page 8: Selecting Xm Radio Channels
Selecting XM Radio Channels There are three ways to select XM radio channels: • Channel Search mode: select any channel. • Category Search mode: select channels by category. • Direct tuning: enter channel number. I Channel Search Mode Press the [ENTER] or [TUNING MODE] button to select “Channel Search”... -
Page 9: Presetting Xm Radio Channels
Presetting XM Radio Channels You can store a combination of up to 40 of your favorite XM channels and AM/FM radio stations as presets. Tune into the XM channel that you want to store as a preset. Press the [MEMORY] button. The MEMORY indicator appears and the preset number flashes. -
Page 10: Displaying Xm Radio Information
Displaying XM Radio Information Press the [DISPLAY] button repeatedly to cycle through the available information. Channel Number Channel Name Preset Number The indication on the Channel Name switches among the fol- lowing titles: Channel name Category name (CAT) Artist name (NAME) Song title (TITL) Listening Mode Note:... -
Page 11: Positioning The Xm Passport System
Positioning the XM Passport System You can check the signal strength of the XM radio signal and adjust the position of the XM Passport System accordingly. Press the [SETUP] button. Use the [ ] buttons to select “SAT Radio Setup,” and then press [ENTER]. Use the [ ] buttons to select “Antenna Aiming,”... -
Page 12: Listening To The Hd Radio
HD Radio technology achieves CD-quality sound during FM broadcast and high-quality sound equivalent to analog FM stereo during AM broadcast. This Tuner Board also supports text display function for song titles, artist names and so on. For more information on HD Radio technology, visit “www.ibiquity.com”. -
Page 13: Displaying Hd Radio Information
Selecting HD Radio Multicast Channel You can select a channel by performing the following steps for an FM HD Radio station that has multicast channels: Press the [CONTROL/TUNING] dial or [ENTER]. HD Radio channel number blinks on and off on the dis- play. -
Page 14: Displaying Rds Information
The information of Program Service Name, Radio Text and Program Type is available for display on this tuner board Listening to the RDS Radio For information on how to connect FM antenna and to tune, refer to the Instruction Manual for your main unit. - Page 15 Memo...
- Page 16 Printed in Japan D0607-1 SN 29344327A (C) Copyright 2006 ONKYO CORPORATION Japan. All rights reserved. * 2 9 3 4 4 3 2 7 A *...
