- Page 1 User Manual KMW150CCD Water Chiller Unit for the Sapphire series CCD Detector October 2001 Version 1.1 Oxford Diffraction Limited 20 Nuffield Way, Abingdon, Oxfordshire. OX14 1RL. UK Tel: +44 (0)1235 532132 Fax: +44 (0)1235 528005 http://www.oxford-diffraction.com...
- Page 2 Important Information This user manual is intended to help the user operate the KMW150CCD water chiller unit manufactured in Poland by Oxford Diffraction. Product: KMW150CCD Model Type: CCD chiller unit Electrical Ratings: 1/N AC 230 V 50/60 Hz 150 Watts Before attempting to operate the system, PLEASE READ THE INSTRUCTIONS.
-
Page 3: Table Of Contents
5.2.2.1 Equipment Required ................... 14 5.2.2.2 Setting up Procedures ..................14 5.3 Storage..........................15 6. Operating Instructions ..............16 6.1 Warnings and Cautions ......................16 6.2 Controls and Indicators ......................16 KMW150CCD Version 1 USER MANUAL Page iii KMW150CCD Chiller v1.1.doc... - Page 4 8.1 Filling the Reservoir with Water .................... 18 8.2 Cleaning the Water Filter....................... 19 9. Trouble Shooting ................20 10. Spares ...................21 11. Additional Information..............22 11.1 Drawings ..........................22 12. CE Conformity Notice..............23 KMW150CCD Version 1 USER MANUAL Page iv KMW150CCD Chiller v1.1.doc...
-
Page 5: Health And Safety Information
In normal use the user is protected from the dangers associated with the voltage, current and power levels used by the equipment. Only suitably qualified personnel should attempt to disconnect, dismantle or modify the equipment. KMW150CCD Version 1 USER MANUAL Page 1 KMW150CCD Chiller v1.1.doc... -
Page 6: Potential Electrical Hazards
Mains voltages are present in the system. These can cause serious injury or death. Only personnel qualified and experienced to work with such currents and voltages should perform service or maintenance work on this equipment. KMW150CCD Version 1 USER MANUAL Page 2 KMW150CCD Chiller v1.1.doc... -
Page 7: Mechanical Handling Safety
It should be stressed that those parts of the equipment which are interchangeable, and which are subject to deterioration during operation, may significantly affect the safety of the equipment. KMW150CCD Version 1 USER MANUAL Page 3 KMW150CCD Chiller v1.1.doc... -
Page 8: Introduction
• assist with simple fault finding and maintenance 2.3 System Description The KMW150CCD is a stand-alone chiller unit intended for indoor use. It is designed for use with the Sapphire seriers CCD detector. The chiller has the following purposes: To stabilise the temperature of the cooling water that is supplied to the CCD detector To electronically control the flow of water to the CCD detector. -
Page 9: Specifications
CCD output power consumption 150 W Main fuse T2.5 A 3.4 Water Supply Reservoir water Optically clear, neutral pH, de-ionised water Connections Quick-release type, designed for pipes of size 10 x 3 mm KMW150CCD Version 1 USER MANUAL Page 5 KMW150CCD Chiller v1.1.doc... -
Page 10: Technical Description

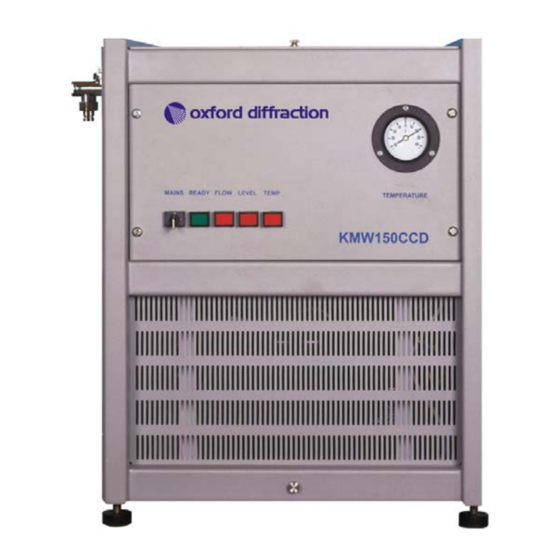

4.1 Overview Figure 4.1.1 Front View of KMW150CCD Water Chiller The KMW150CCD Chiller consists of a metal cabinet containing a water reservoir, a compressor with a radiator, and control circuitry. Controls and indicators are located on the front panel of the chiller. Water and electrical connections are located on the side of the chiller. -
Page 11: Operating Principles
Figure 4.1.2 Side and Back Views of the KMW150CCD Water Chiller 4.2 Operating Principles Inside the KMW150CCD, the compressor is connected to a radiator that is immersed in the water reservoir. A thermostat connected to the compressor ensures that the temperature of the water in the reservoir stays in the range 12-14 ºC (or higher depending on the dew point of the operating... - Page 12 TECHNICAL DESCRIPTION Figure 4.2.1 Schematic Diagram of the Control Circuit KMW150CCD Version 1 USER MANUAL Page 8 KMW150CCD Chiller v1.1.doc...
-
Page 13: Water Conditioning Check
TECHNICAL DESCRIPTION 4.2.1 Water Conditioning Check The KMW150CCD performs a water conditioning check when it is initially switched on. This check looks at: 1. The flow rate of the water 2. The level of the water in the reservoir 3. The temperature of the water in the water reservoir. -
Page 14: Interfaces
4.3 Interfaces 4.3.1 Water Supply Two water connections are located on the left side panel of the KMW150CCD. The connectors are combined with manual valves and filters. The connectors are screw type and are designed for pipes of size 10 x 3 mm. -
Page 15: Electrical Connections
Not connected Not connected Flow sensor +5V J7-1 Lamp common J8-3 Not connected Not connected LEVEL status light J9-2 TEMP status light J9-1 FLOW status light J8-2 READY status light J8-1 KMW150CCD Version 1 USER MANUAL Page 11 KMW150CCD Chiller v1.1.doc... -
Page 16: Handling, Installation, Storage And Transit Information
2. Check that shock-watch and tilt indicators fitted to the outside of the packing case have not been activated. If the indicators have been activated notify Oxford Diffraction immediately. 3. Check the number of delivered items against the packing list. If any items are missing contact Oxford Diffraction within 3 days. -
Page 17: Installation And Setting To Work
The mains plug should be readily reachable by the operator when the equipment has been installed. 5.2.1.4 Water Supply Prepare 25 litres of clean distilled water to fill the reservoir. 5.2.2 Setting to Work The location of connectors on the KMW150CCD is shown in figure 5.2.1. KMW150CCD Version 1 USER MANUAL Page 13... -
Page 18: Equipment Required
Water pipes (x2, thickness 10 x 3 mm) 5.2.2.2 Setting up Procedures 1. Connect the water pipes between the CCD camera and the KMW150CCD. Refer to figure 5.2.2 NOTE: Water can flow through the Sapphire series CCD camera in either direction. -
Page 19: Storage
Figure 5.2.3 Electrical power supply to the KMW150CCD 8. Plug the KMW150CCD power cable into the socket marked Mains IN on the KMW150CCD. 9. Plug the other end of the KMW150CCD power cable into the mains electrical supply. -
Page 20: Operating Instructions
1. Check that the water pipes and electrical cables are properly connected. 2. Switch on the KMW150CCD by turning the key switch to the right. The lights on the front panel will flash as the KMW150CCD performs a water conditioning check. -
Page 21: Maintenance Schedule
MAINTENANCE SCHEDULE 7. Maintenance Schedule 7.1 Introduction Maintenance must be performed to ensure that the KMW150CCD system continues to operate safely and reliably. This is detailed in the maintenance schedule given below. WARNING Failure to perform scheduled maintenance tasks properly and at the correct intervals can affect the safety and performance of this system. -
Page 22: Maintenance Instructions
KMW150CCD’s terminals when the power is on. Rotating parts are exposed when the top of the KMW150CCD is removed when the power is on. 3. Remove the top of the KMW150CCD and locate the filling inlet. 4. Remove the inlet cover. WARNING Do not allow water to splash on the electrical circuits of the KMW150CCD. -
Page 23: Cleaning The Water Filter
Funnel 25 Litres of clean distilled water (maximum amount required if reservoir empty) Procedure 1. Switch off the KMW150CCD. 2. Remove the plug from the electricity socket. 3. Close the manual valves. 4. Using a flat wrench (17 mm) or screwdriver carefully unscrew the retaining nut. -
Page 24: Trouble Shooting
18 ºC reservoir stops working after 10 minutes Fuses Designators Value Package Location 315mA / 250V 5x20mm Inside KMW150CCD (PCB) 6A / 250V 5x20mm Inside KMW150CCD (PCB) KMW150CCD Version 1 USER MANUAL Page 20 KMW150CCD Chiller v1.1.doc... -
Page 25: Spares
SPARES 10. Spares Part Number Description 52-AHX1250 Spares kit (fuses and bulbs) KMW150CCD Version 1 USER MANUAL Page 21 KMW150CCD Chiller v1.1.doc... -
Page 26: Additional Information
ADDITIONAL INFORMATION 11. Additional Information 11.1 Drawings Title Logic Plate Circuit Diagram Logic Plate Component Diagram KMW150CCD Version 1 USER MANUAL Page 22 KMW150CCD Chiller v1.1.doc... -
Page 27: Ce Conformity Notice
ISO/IEC Guide 22, 1982, “Information on manufacturer’s declaration of conformity with standards or other technical specifications." Oxford Diffraction’s liability under this declaration is limited to that set forth in the current Oxford Diffraction Terms and Conditions of Sale. __________________________________________________________________________________...
