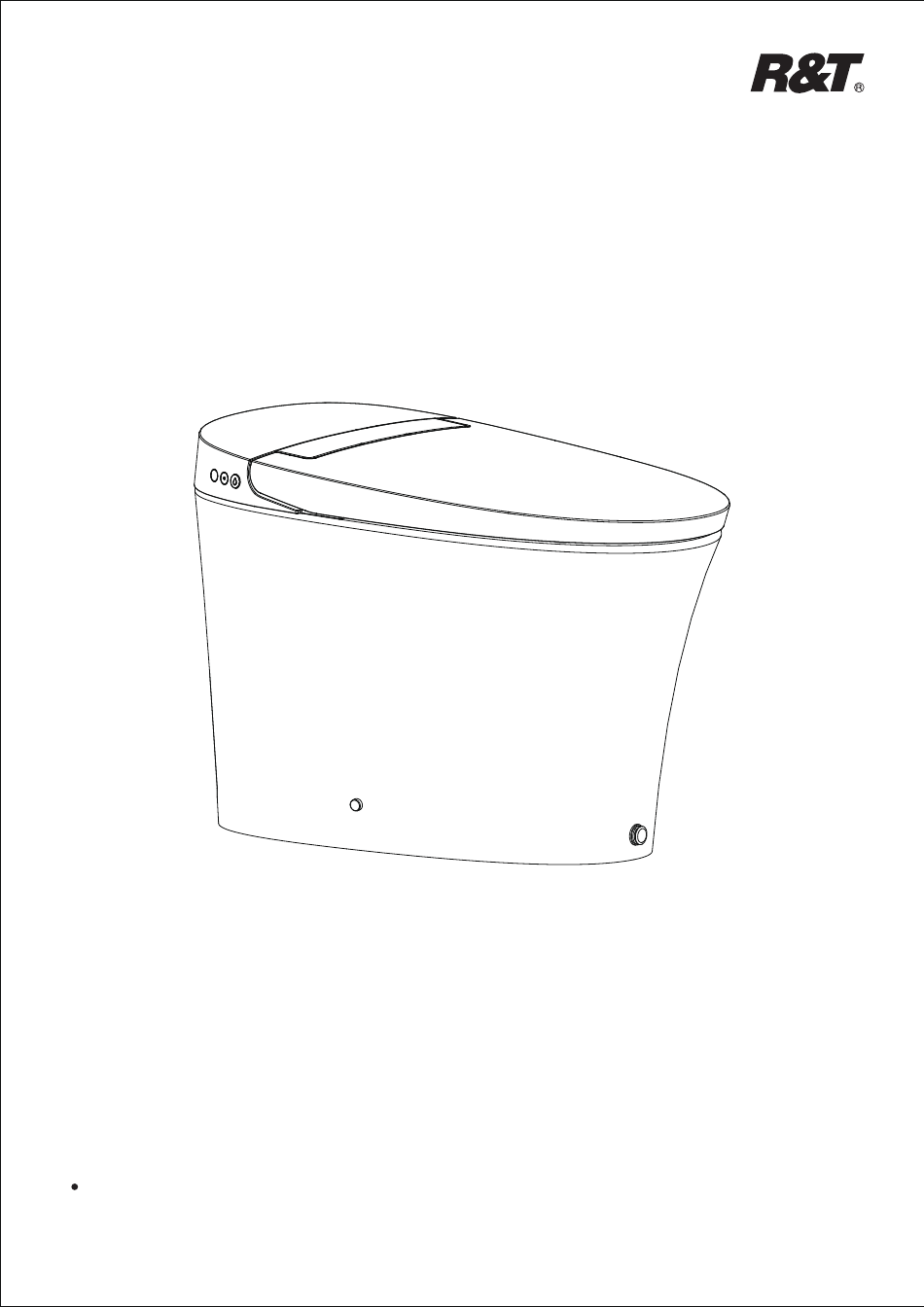

- Page 1 Model : W5100S User Manual Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference.
-
Page 2: Table Of Contents
Content Safety instructions List of materials Technical drawings Parts identification Toilet Installation Before Installation Daily maintenance 1.Main unit care and maintenance 2.Maintenance of filter net Emergency troubleshooting 1.Electricity and water supply cut-off 2.Replacement of battery 3.When the product is left unused for long time Technical specification The illustration of Main Unit Buttons Warranty Card... -
Page 3: Safety Instructions
Safety instructions Please read the instructions carefully before installation and keep it available for future maintenance or reference. Failure to follow these instructions can cause body injury and property damage. Symbol lllustration Indicates that failure to follow the instruction may cause serious Warning injury or fatality. - Page 4 Warning Only use the factory equipped battery box and 1.5V “AA” alkaline battery. When moving the product from a cold or humid place to a warm room, Mandatory please wait for 2 hours before use - to volatilize the condensed water inside activities the product.
-
Page 5: List Of Materials
List of materials Main Unit Installation Cardboard Product Warranty Card three(3) years Our company User Manual three Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference. Installation Manual Braided hose Warranty Card 15/16-14UNS... -
Page 6: Technical Drawings
Technical drawing 690mm The product drawings are for reference only, and the company reserves the right to modify the appearance of the product without notice. -
Page 7: Parts Identification
Parts identification Left side Bumper Decorative piece Flush button Ceramic toilet Right side Bumper Seat... -
Page 8: Toilet Installation
Installation of ceramic toilet Precaution before installing 3.Hose Minimum dynamic working water pressure: Connect the water inlet and angle valve of the 0.09MPa or more (3.96Gal/min(15L/min) or toilet with the matching hose and tighten it more), failure to meet this pressure will not achieve the best flushing effect. - Page 9 5.Ceramic toilet installtion 6.Screw installation Put the screw through the fixing sleeve and Install sealing flange into drain outlet; then install it through the holes(on both sides Install ceramic toilet on corresponding of the toilet ceramic) to the mounting bracket position according to contour line.
-
Page 10: Before Installation
Before Installation 1. Turn on the angle valve 2.Power Connection Check thread connection, make sure no Take out the battery box from the accessory leakage is found,unscrew angle valve kit and install 4pcs 1.5V “AA” alkaline batteries. anticlockwise to maximum opening. Plug the DC plug of battery box into the DC (Tips: When opening for the first time, the socket of toilet and then stick the battery box... -
Page 11: Daily Maintenance
Daily maintenance Main unit care and maintenace Maintenance of filter net Time for maintenance: It is under Use only a soft, damp cloth to clean. normal water pressure but poor Avoid using harsh chemicals. flush performance occurs. Note: If the toilet is with off-seat auto flushing function, it may activate auto flushing 1.Turn off power and the angle valve during the cleaning. -
Page 12: Emergency Troubleshooting
Emergency Troubleshooting No water supply When the product is left unused for long time Put around 2.1Gal (8L) water into a barrel and flush the bowl . Especially in winter when no one at home for a long time, please drain out the water Note: Avoid water spilling from bowl. -
Page 13: Technical Specification
Technical Specification Model W5100 Rated Voltage DC:6V Main Unit Rated Power 2.1W IP Rating IPX4 Flush volume Full flush 6.0L/Half flush 4.1L Flush Type Siphonic jet Roughing in S-trap 305mm Toilet Sewage outlet diameter ≤100mm 0.09MPa (dynamic water pressure, flow rate Water pressure range 3.96Gal/min (15.0L/min) or more)--0.8MPa (static water pressure) - Page 15 three (3) years frequency)
- Page 16 Xiamen R&T Plumbing Technology Co.,Ltd. Add: No. 18, Houxiang Road, Haicang District, Xiamen, China Tel: 86-0592-6539788 Fax: 86-0592-6539723 E-mail: rt@rtplumbing.com Http: //www.rtplumbing.com The picture of product may not entirely consistent with actual appearance and color because of products improvement, please in kind prevail. ASWFAF0393000A-1.0...
