Tankless Toilet
Installation and Operation Guide
Model: W5100S
Questions, problems, missing parts? Before returning to the store,
contact R&T Customer Service: info@rtplumbing.com.
We appreciate the trust and confidence you have placed in R&T through the purchase of this
toilet. We strive to continually create quality products to enhance your home. Visit us to see
our full line of products available for your home improvement needs. Thank you for choosing
R&T!
Advertisement
Table of Contents
Related Manuals for R&T W5100S
Summary of Contents for R&T W5100S

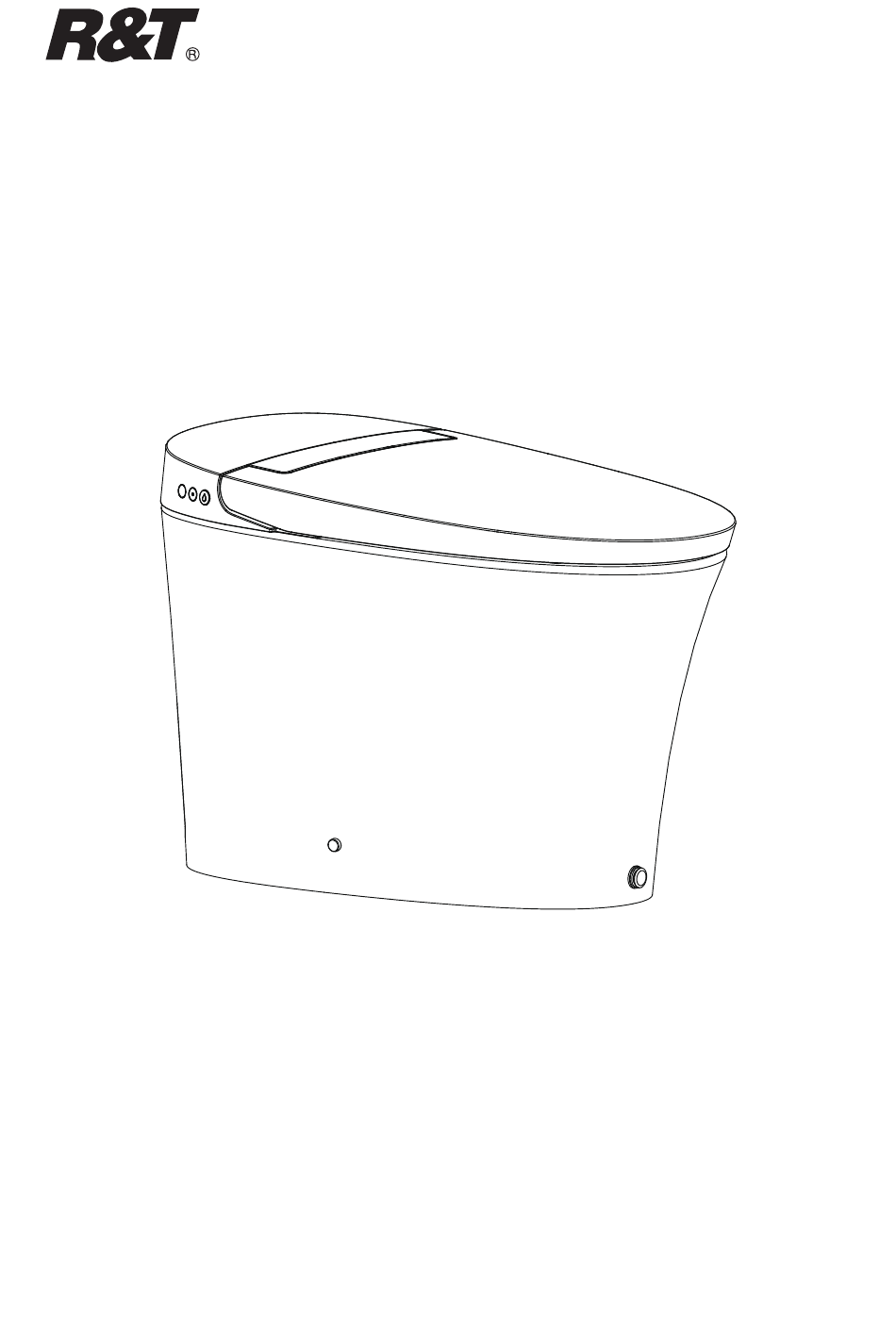

- Page 1 Tankless Toilet Installation and Operation Guide Model: W5100S Questions, problems, missing parts? Before returning to the store, contact R&T Customer Service: info@rtplumbing.com. We appreciate the trust and confidence you have placed in R&T through the purchase of this toilet. We strive to continually create quality products to enhance your home. Visit us to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Content Installation Safety instructions Parts identification The illustration of Main Unit Buttons List of materials Technical drawings Toilet installation After installation Maintenance Daily maintenance 1. Main unit care and maintenance 2. Maintenance of filter net Emergency troubleshooting 1. No water supply 2. -
Page 3: Safety Instructions
Safety instructions Please read the instructions carefully before installation and keep it available for future maintenance or reference. Failure to observe this instruction can cause body injury and property damage. Symbol lllustration Symbol Indication Indicates that failure to follow the instruction may cause serious Warning injury or a fatal. - Page 4 Caution Do not place or store product where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid. Do NOT reach for a product that has fallen into water. Unplug the battery box immediately.
-
Page 5: Parts Identification
Parts identification Left side Bumper Decorative piece Flush button Ceramic toilet Bumper Seat Right side kick button for flushing The illustration of Main Unit Buttons press the "FLUSH" button to flush (full flush). Flush Note: 1. Button light: If the battery is low, when pressing the flush button, the red light will flash. 2. -
Page 6: List Of Materials
List of materials ※ Please refer to the actual product. Installation Manual Battery box Main Unit Installation Cardboard Hose NPT 1/2 15/16-14UNS Sealing Flange Mounting Kit Angle Valve Angle Valve Technical drawings 1. The product drawing is for reference only, and we reserve the right to modify the appearance of the product. -
Page 7: Toilet Installation
Toilet installation Precaution before installing Minimum dynamic working water pressure: 0.18+ MPa (5.81+ gal/min or 22+ L/min), failure to meet this pressure will not achieve the best flushing effect. Note: Apply the methods below if you don’t have water pressure testing device. Hose Angle valve Water storage... - Page 8 Toilet installation 3. Connecting the hose 4. Mounting bracket installation Connect the water inlet and angle valve Assemble the mounting bracket with of the toilet with the matching hose and bolts and then install them to the tighten it. pre-installed flange plate (not included) on the ground and lock tight with nuts.
- Page 9 Toilet installation 6. Screw installation Put the screw through the fixing sleeve and then install it through the holes (on both sides of the toilet ceramic) to the mounting bracket on the ground. Lock tight. Install the decorative cap on the fixing sleeve. Fixing sleeve Screw Decorative cap...
-
Page 10: After Installation
After installation 1. Turn on the angle valve Check the thread connection for leaks to ensure complete sealing. Turn the angle valve anticlockwise to the full open position. Tips: The angle valve opens with a large torque for the first time. Angle valve 2. -
Page 11: Daily Maintenance
Daily maintenance 1. Main unit care and maintenance Use only a soft, damp cloth to clean. Avoid using harsh chemicals. Note: If the toilet is with off-seat auto flushing function, it may activate auto flushing during the cleaning. 2. Maintenance of filter net When to maintain: Poor flush performance under normal water pressure. -
Page 12: Emergency Troubleshooting
Emergency troubleshooting 1. No water supply Put around 2.1Gal (8L) water into a barrel and flush the bowl . Note: Avoid water spilling from bowl. 2. Replacement of battery Unplug the DC plug of the battery box and remove the battery box from the bottom of the toilet. -
Page 13: Technical Specification
Technical specification Model W5100S Rated Voltage DC:6V Main Unit Rated Power 2.1W Waterproof IPX4 Flush volume 1.28Gpf (4.8Lpf) Flush Type Siphonic jet S-trap 12 in. / 305mm Rough-in Distance Sewage outlet diameter ≤3.9 in. / 100mm Toilet 0.09MPa (dynamic water pressure, flow Water pressure range rate 3.96Gal/min (15.0L/min) or more)--... -
Page 14: Warranty Terms
Warranty terms 1. One-year limited warranty for commercial installation, and two-year limited warranty for residential installation. 2. R&T warrants its product to be free from defects in materials and workmanship during normal use when properly installed and serviced, for a period of one year for commercial or two years for residential from date of shipment. - Page 16 Xiamen R&T Plumbing Technology Co.,Ltd. Add: No. 18, Houxiang Road, Haicang District, Xiamen, China Tel: 86-0592-6539788 Fax: 86-0592-6539723 E-mail: rt@rtplumbing.com Http: //www.rtplumbing.com The picture of product may not entirely consistent with actual appearance and color because of products improvement, please in kind prevail. ASWFAF0393000A-1.2...
