1.

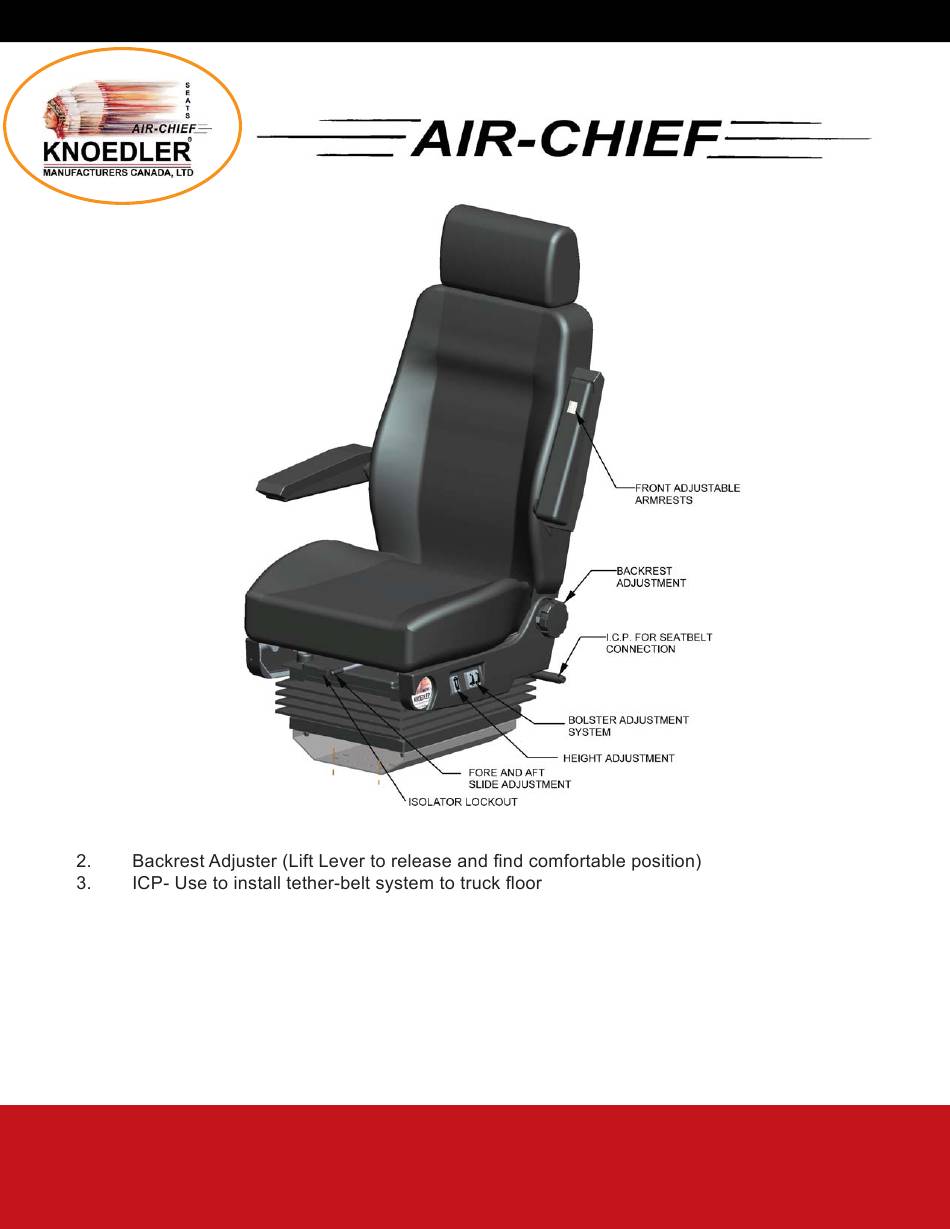

Front Adjustable Armrests (Rotate knob to set arm resting point)
4.
Valve Controls
(Press and hold "+" to increase pressure, Press and hold "-" to decrease pressure)
5.
Isolator Lockout Control (Push left to Lock; Push right to unlock) (
Note: Isolator does not work if there is no air in the suspension)
6.
Cushion Extension and Angle Adjustment
(Lift up and pull out to adjust in 3 positions, Lift up and push in to shorten cushion)
7.
Seat fore and Aft Adjustment
Pull lever to left to unlock and slide seat to desired position.
(Be sure seat is locked into position after adjusting.)
C O N T A C T U S A T :
I N F O @ K N O E D L E R . C O M
T E L : 4 5 0 - 4 4 5 - 4 7 7 7
W W W . K N O E D L E R . C O M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Knoedler AIR-CHIEF
Summary of Contents for Knoedler AIR-CHIEF
- Page 1 Front Adjustable Armrests (Rotate knob to set arm resting point) Valve Controls (Press and hold “+” to increase pressure, Press and hold “-“ to decrease pressure) Isolator Lockout Control (Push left to Lock; Push right to unlock) ( NOTE: Isolator does not work if there is no air in the suspension) Cushion Extension and Angle Adjustment (Lift up and pull out to adjust in 3 positions, Lift up and push in to shorten cushion) Seat fore and Aft Adjustment...
- Page 2 SERVICE PARTS C O N T A C T U S A T : I N F O @ K N O E D L E R . C O M T E L : 4 5 0 - 4 4 5 - 4 7 7 7...
- Page 3 NOTE: If you opted for the 2” lower seat, then subtract 2” from the height dimensions shown above. NOTE: It is the responsibility of the installer to deter- mine the suitability for use of this product in each appli- cation. The drawings are for reference purpose only WARNING: Serious injury may occur if head clearance is not adequate.
