PlugTech MBC-NULL Operating Instructions Manual

PlugTech MBC-NULL Operating Instructions Manual

Advertisement

Quick Links

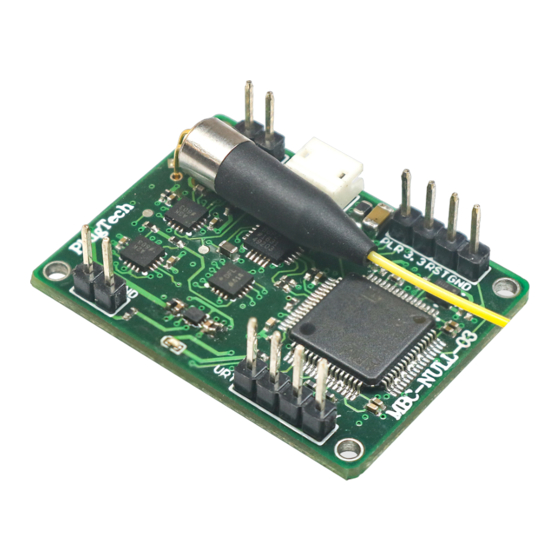

(1) Product Structure
No.
Name
1
Photodiode
External Optical Feedback Input
2
Ca An pins
Modulator's Internal photodiode Input
3
Power Connector
Controller's power supply connector
4
RST Pin
Operation for resetting controller
5
PLR Pin
Operation for polar selection
6
3.3 Pin
3.3V reference voltage of UART interface
GND TX RX Pins
UART interface for communication
7
OUT GND Pins
Controller's bias Output
8
M2 Mounting Hole
Controller's mounting hole
Constantly on: Working under tracking state
9
LED
On-off or off-on every 0.2s:
On-off or off-on every 1s: Controller's feedback input power is too weak
On-off or off-on every 3s: Controller's feedback input power is too strong
(2) Product Operating and Storage Information
Parameter
Positive power voltage
Positive power current
Negative power voltage
Negative power current
Input optical power
Operating temperature
Storage temperature
MBC-NULL Controller Operating Instruction
Describe
Initializing
and searching for controlling point
Min
Typ
Max
+14.5
+15
+15.5
20
30
-15.5
-15
-14.5
1.5
4
-30
-9
-10
50
-20
80
2
1
Unit
V
mA
V
mA
dBm
4
5
3
7
8

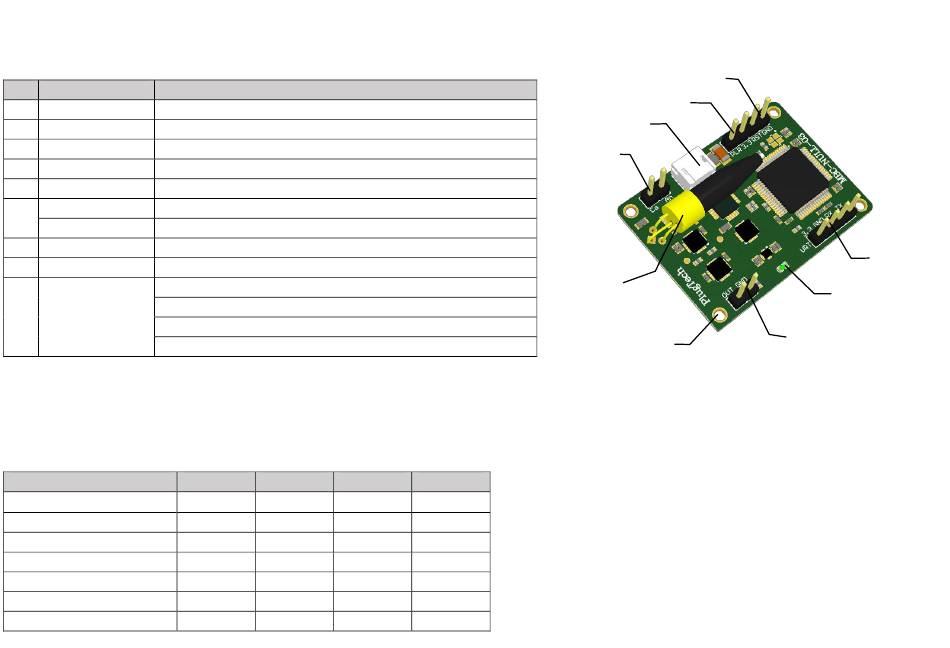

Figure1. Product Structure
6
9

Advertisement

loading
Need help?

Need help?

Do you have a question about the MBC-NULL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PlugTech MBC-NULL

  • Page 1 MBC-NULL Controller Operating Instruction (1) Product Structure Name Describe Photodiode External Optical Feedback Input Ca An pins Modulator’s Internal photodiode Input Power Connector Controller’s power supply connector RST Pin Operation for resetting controller PLR Pin Operation for polar selection 3.3 Pin 3.3V reference voltage of UART interface...
  • Page 2 (3) System Setup Instruction Figure 2. System diagram with controller’s on-board photodiode Figure 3. System diagram with modulator’s internal photodiode Depending on the different systems, the controller can be connected to the system as shown in Figure 2 or Figure 3. Here are the setup steps: Setp1.
  • Page 3 (4) Operating manual ⚫ Set MBC-NULL to work in NULL point ⚫ Set MBC-NULL to work in Peak point (1) Connect controller’s output and feedback input properly (1) Connect controller’s output and feedback input properly (2) Keep PLR pins not connected (2)...
  • Page 4 (5) Cautions ⚫ Do not reverse the V+ and V- power pins, otherwise it will cause permanent damage to the controller. ⚫ ESD sensitive, please pay attention to human static electricity when operating. ⚫ Please provide the correct power supply voltage to avoid interfering with the operation of the controller or damaging it. ⚫...
  • Page 5 (6) PowerBoard Operation Instruction(Optional) (1)Production Instruction 标识 名称 描述 M2 Mounting Hole Powerboard’s Mounting Hole OUTPUT Output voltage ± 15V Switch Control Powerboard’s Status Show Powerboard’s Status EARTH pin Ground pin INPUT1 +5V Input1 Input selection port Connection between input 1 and + 5V: INPUT1 as the input Connection between input 2 and + 5V:...
  • Page 6 Version Content Date 1.0.0 First Release 2020/11/18 1.0.1 Add powerboard’s operation Instruction 2021/1/12...
