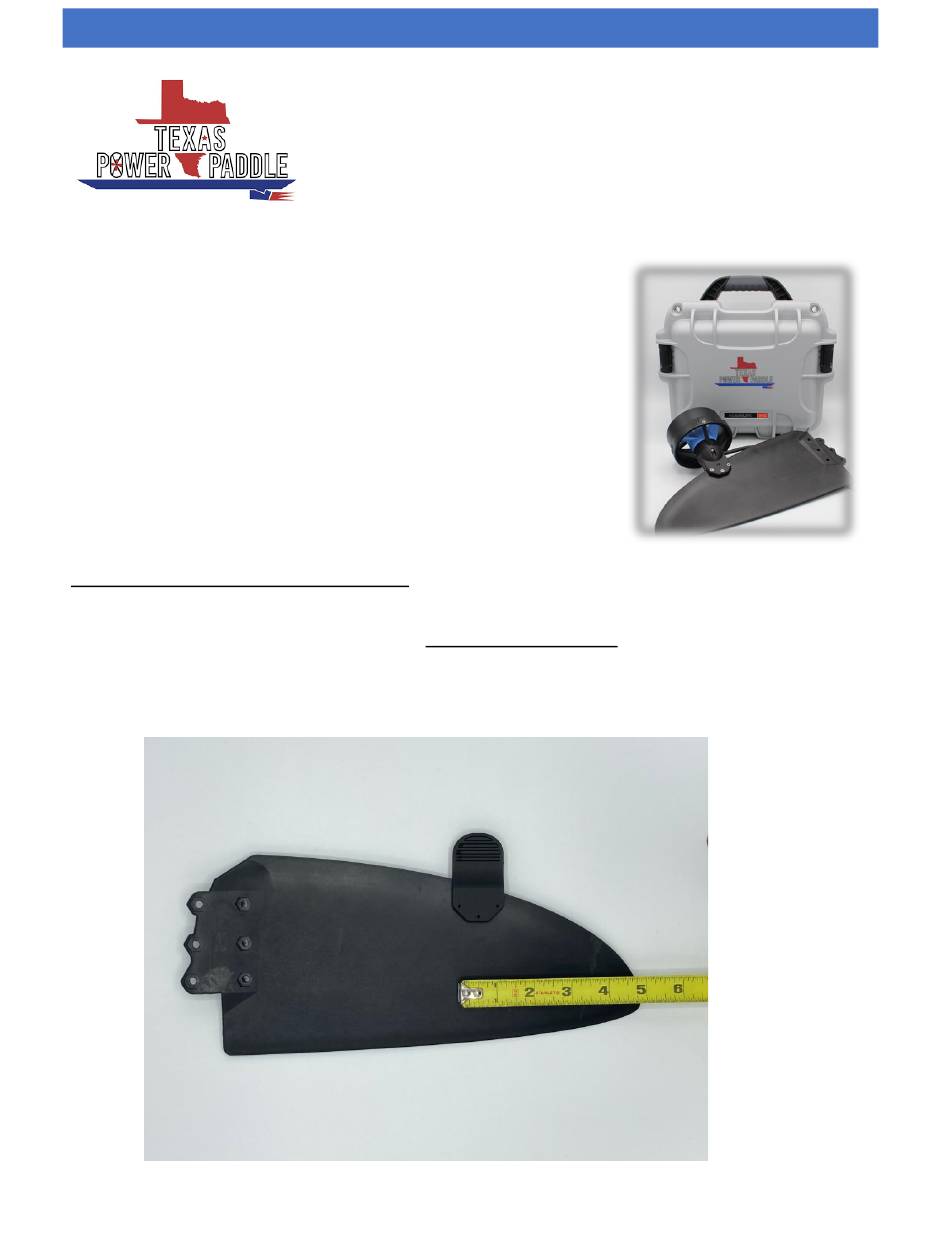

Thank you for purchasing the Texas Power Paddle
Kayak Propulsion System. Installation of the motor
onto your kayak's rudder should take less than 20
minutes. The motor mount adapter attaches to most
rudders using three fasteners at the rear edge of the
rudder. The only tools you will need are a tape
measure, a drill with 1/8
Phillips screwdriver.
Mounting Adaptor to the Rudder:
• Measure approximately 5 inches from the bottom of the rudder and place
the drill jig template over the rear edge of rudder- ensure jig is flush with
rudder as shown below. Press the jig to the rudder to hold in place using
the pre-applied adhesive on the inside of the jig.
Quick Installation Guide
th
th
and 1/16
inch bits and a
Advertisement
Table of Contents
Related Manuals for Texas Power Paddle Mako
Summary of Contents for Texas Power Paddle Mako
- Page 1 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM Quick Installation Guide Thank you for purchasing the Texas Power Paddle Kayak Propulsion System. Installation of the motor onto your kayak’s rudder should take less than 20 minutes. The motor mount adapter attaches to most rudders using three fasteners at the rear edge of the rudder.
- Page 2 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM • Using a 1/16 inch drill bit inserted into the pre-drilled jig holes, create three pilot holes in the rudder making sure to not move the mount while drilling. • Remove the jig and drill the pilot holes again with a 1/8 inch drill bit.
- Page 3 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM • Remove the three pre-installed Phillips screws on the motor mount and align the motor mount over the drilled holes in the rudder. Insert and tighten the supplied screws to secure the motor in place. • When complete your rudder with the attached motor should appear as below.
- Page 4 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM Connecting Throttle and Motor to Waterproof Control Case: The motor and the throttle cables need to be connected to the main control case. The throttle connector (three pin) attaches to the top receptacle and the motor connector (four pin) attaches to the bottom receptacle.
- Page 5 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM Location of Waterproof Control Case and Throttle Control on Kayak: The waterproof control case should be placed just behind the seat in the cargo section of the kayak. The motor cable should be routed over the rudder to ensure that it does not inhibit rotation of the rudder.
- Page 6 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM -Attach the black plastic throttle control base to the rudder control knob and slide throttle onto base as shown below:...
- Page 7 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM Operating Instructions -Connect the motor and throttle cables to the waterproof case and turn system on using the power button. Once the unit is on the case should be closed and latched during use to keep waterproof. *Operating the motor out of the water can cause damage* Do so only to briefly test functionality before launching into water -Rotate throttle control knob fully counterclockwise to arm system (this prevents...
- Page 8 FOR ASSISTANCE EMAIL INFO@TEXASPOWERPADDLE.COM Troubleshooting & Care Tips • The motor will shut down automatically if it gets clogged during use. This is a safety feature to prevent damage. When this occurs, the user should remove the safety tether clip from the control case and manually remove the debris from the motor.
