Assembly and Parts Good for 30, 36, 39 Sizes
Each Bed Consists of:
- 2 Bottom Bed Ends: 2 Pre-Drilled Holes on
each side and one Pre-Drilled hole at the top of
each side.
- 2 Top Bed Ends: 2 Pre-drilled Holes on each
side and one Pre-Drilled hole at the bottom of
each side and a groove carved from the top of
each side.
- 8 Bed Slats
- 4 Bed Rails
- 2 Safety Rails
Hardware:
- 16 Headlock Spider Head Fasteners 4 ½"
- 24 Square Head Fasteners 1 ¼"
- 4 Metal Connector Pins
- 1 Headlock Spider Drive Bit
2. Insert the 4 Metal Connector Pins in the pre-drilled
holes at the top of each Bed End Panel.
3. On the floor, connect Top Bed End Panels with 2 Bed
Rails using 8 Headlock Spider Head Fasteners with a
cordless drill and the Spider Drive Bit. DO NOT over
tighten.
1
FURNITURECONCEPTS
FURNITURE CONCEPTS
066 Camp Ladder End Bunk
800 969 4100 info@furnitureconcepts.com www.furnitureconcepts.com
®
®

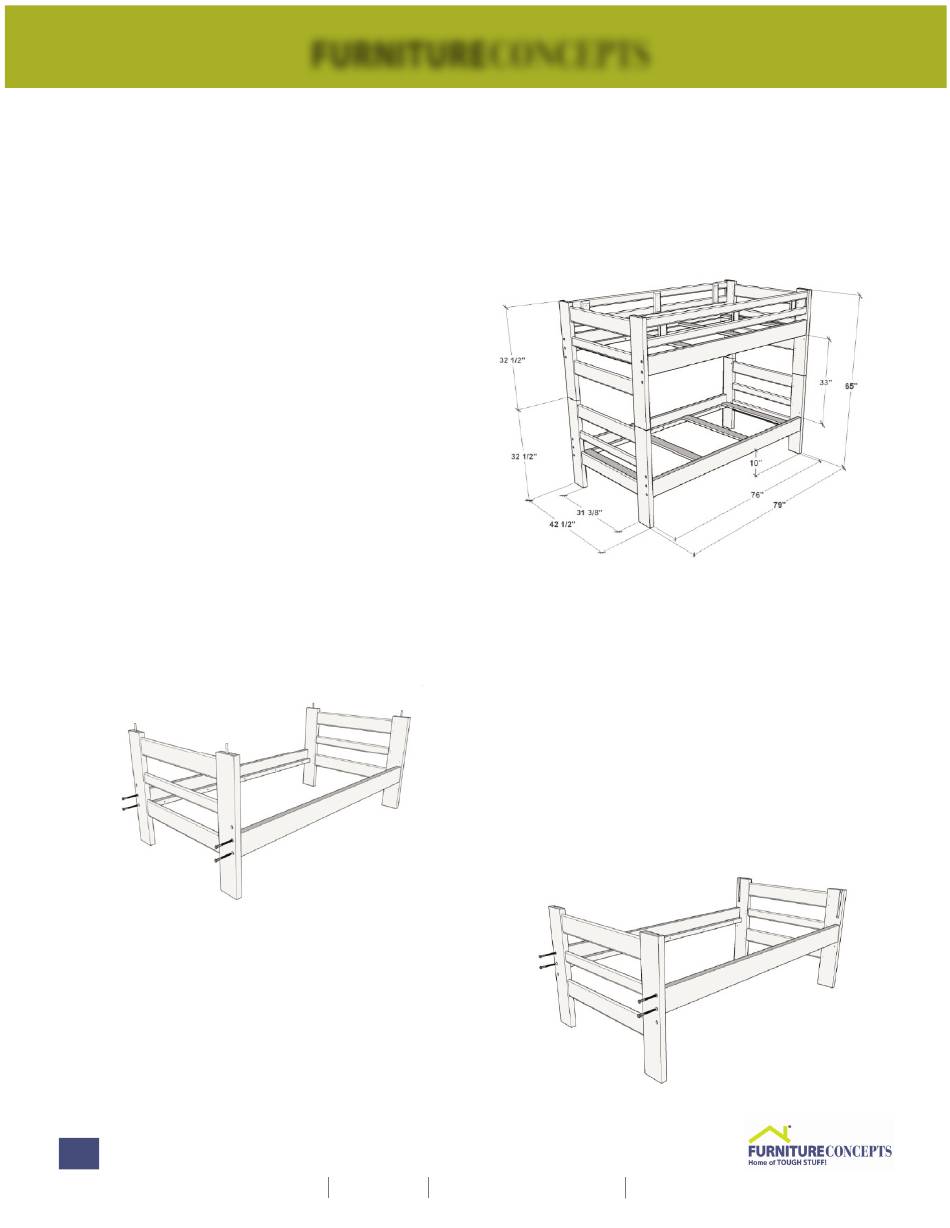

Assembly:
1. Connect Bottom End Panels with 2 Bed Rails using
8 Headlock Spider Head Fasteners with a cordless
drill and the Spider Drive Bit. DO NOT over tighten.
