DiamondCore Tools CINK User Manual

Self-contained system for cleanup of clay, clay water, pottery tools and accessories
Hide thumbs Also See for CINK:
Table of Contents

Advertisement

Quick Links

Download this manual
The CINK
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DiamondCore Tools CINK

Summary of Contents for DiamondCore Tools CINK

  • Page 1 The CINK User Manual...

  • Page 2: Table Of Contents

    Warranty ..............................13 INTRODUCTION The CINK is a complete, self-contained system for cleanup of clay, clay water, pottery tools and accessories. The system is designed to prevent clay from going down drains in plumbing or septic systems. diamondcoretools.com | info@diamondcoretools.com...

  • Page 3: Safety Precautions

    Do not plug the drain of The CINK to fill the sink basin to wash parts. • CAUTION: Use The CINK only in areas where if water spills it will not damage floors or carpeting, etc. Be aware that water may drip from hoses or spill when bucket lids or filters are removed.

  • Page 4: Quick Start

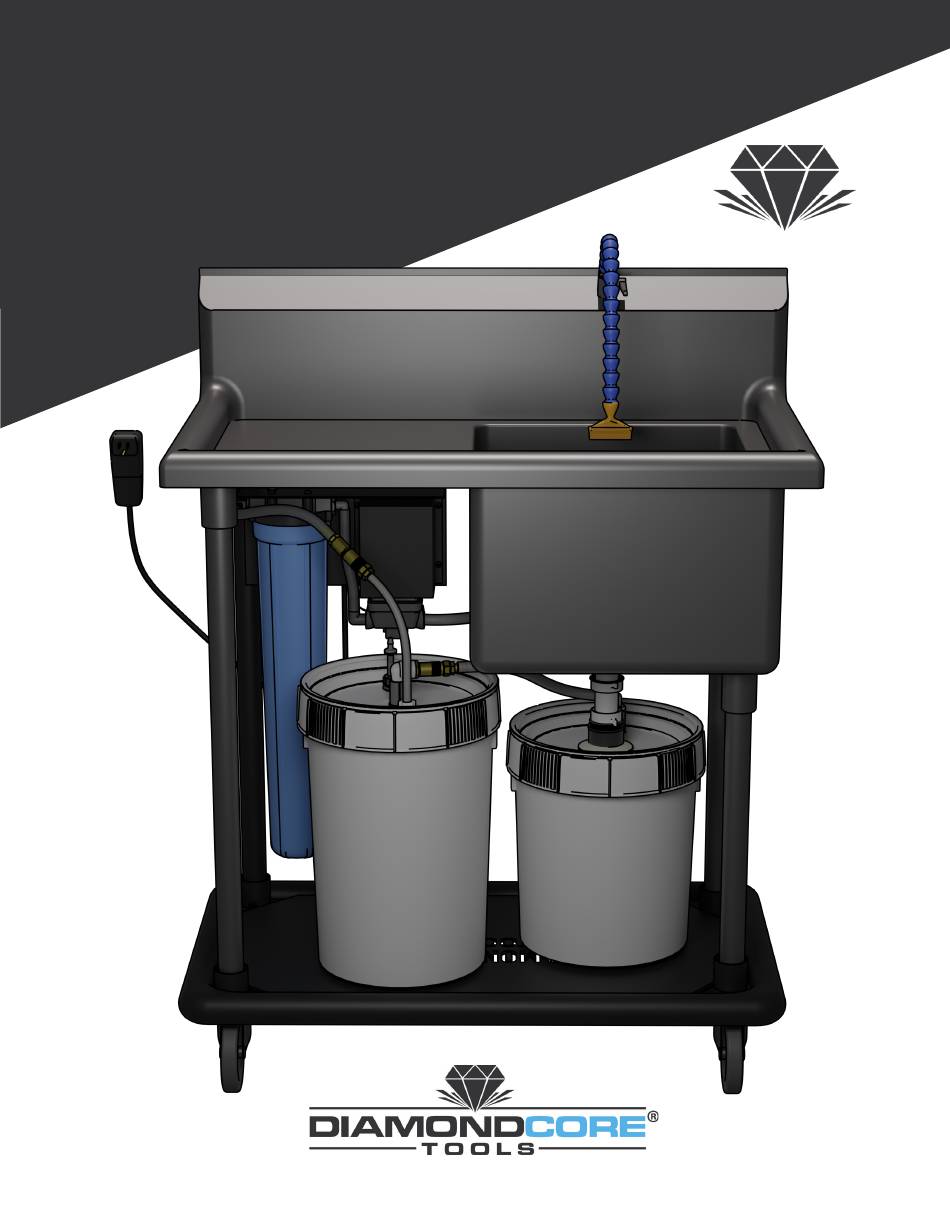

    QUICK START QUICK START Valve (Up is OFF, Down is ON) Spray Nozzle GFCI Pump Cover 6.5 gal. Quick Pump Disconnect Sink Basin String Filter Housing (Big Blue) (O-Ring inside) Drain 5 gal. Union Quick Disconnect Bucket - 6.5 gal. Bucket - 5 gal.
  • Page 5 QUICK START Remove CINK from pallet. Position Separate the quick disconnects and Add fresh water to buckets. CINK in final location next to plug. the drain union to remove buckets. Stop at fill lines. Check string filter and ensure O-ring Screw on bucket lids.

  • Page 6: Operation

    WARNING! NEVER plug the sink basin drain and fill the basin with water to wash parts. This may cause the buckets to collapse if the pump keeps pumping. The CINK system is designed to function with continuous recirculation of water.

  • Page 7: Maintenance

    Emptying the 5-Gallon Clay Collection Bucket The 5-gallon bucket is intended to capture most of the clay and slip that will be put into The CINK. You will need to empty this bucket more frequently than cleaning or replacing the other two filters.
  • Page 8 MAINTENANCE Emptying the 6.5-Gallon Filtered Sediment Bucket and Cleaning the Filter Bag The filter bag in the 6.5-gallon filtered sediment bucket is designed to stop particles and debris that are not settled out in the 5-gallon clay collection bucket smaller bucket .
  • Page 9 MAINTENANCE Changing the Filter Cartridge in the Big Blue Filter The big blue filter collects ultra-fine clay particles and should be cleaned at least every 3 months. Eventually, the pores of the filter cartridge will fill up and the water flow from the spray nozzle will decrease. At that time, please visit www.DiamondCoreTools.com, call 619-905-9400 or email info diamondcoretools.com to purchase replacement filters.
  • Page 10 Winterizing The CINK (Cold Weather or Freezing Conditions) CAUTION: The CINK is NOT designed to operate or be stored with water or clay in it during freezing conditions. If freezing conditions are anticipated, remove all water and clay from the entire system. The manufacturer is not responsible for any damage to the system, caused by the user, due to cold weather or freezing conditions.

  • Page 11: Troubleshooting

    Clean all buckets and filters. Basin Not Draining Bucket Lid Leaking Stop The CINK and allow Ensure lid is screwed on water to drain. Check that level and tight. Be care- all 3 O-rings (on lids ful not to crossthread.

  • Page 12: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS FREQUENTLY ASKED QUESTIONS Water is leaking around the bucket lids! How can I stop that? Check the seals on the lids for clay or obstructions and check the bucket rim for gouges, then tighten securely. Observe the align- ment of threads between lid and bucket, then tighten lids more snugly, if needed.

  • Page 13: Parts & Accessories

    CINK SF : $29 The CINK Replacement Bag Filter CINK BF : $19 The CINK Replacement Blue String Filter Canister: $95 The CINK Replacement Bucket O-Ring (2-pack): $11.50 The CINK Replacement Pump Kit: $319 For Replacement Parts: DiamondCore® Tools 380 Vernon Way, Suite J...
  • Page 14 Changing the World of Ceramic Arts Glass Arts Lapidary Arts Wax Arts And More 380 Vernon Way, Suite J, El Cajon, CA 92020 619-905-9400 | diamondcoretools.com | info@diamondcoretools.com...
