Summary of Contents for arpha D01

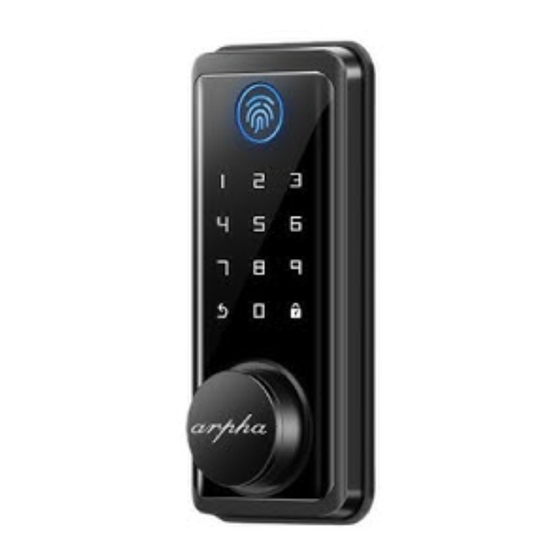

- Page 1 USER MANUAL D01 Smart Lock Please read this manual carefully before installation...
-
Page 2: Table Of Contents
Table of contents ............ Prepare for Installation ............. Installation Overview ............Installation Guide ............. Lock Calibration .............. Basic Functions ..............App Control ............Additional Functions ..............Specifications ............................Customer Service... -
Page 3: Prepare For Installation
Prepare for Installation Installation Overview Note: Please prepare a Phillips screwdriver, a drill and 4 AA batteries before installation. Check your door dimensions to make sure that they fit the following measurements: •The door hole diameter is 54mm (2⅛") •Backset is 60mm (2⅜") or 70mm (2¾") •The door thickness is 35mm (1⅜") to 55mm (2 ⅛") Backset 60mm(2⅜")or... -
Page 4: Installation Guide
⑭ Back Panel Screw (M4*1inch) * 1 ⑮ Knob 2. Install the front panel a. Align the paddle with the center hole of the deadbolt in the ⑯ 'Switch' Button horizon direction, and insert it into the hole. b. Route connection wire under the deadbolt. ⑰... -
Page 5: Lock Calibration
Lock Calibration Connection Column Screw 1. Reset Lock: Long press 'Reset' button for 3 seconds, back to the factory default settings. 2. when the voice prompt 'Di' and the " " button is solid on, Round Head turn the KNOB to the horizontal position, then the voice Screws Front Panel Screw 'successful' appears. - Page 6 2. Add user Note: The administrator password can not be changed. · Short press "reset" button or any key to wake up the keyboard, long press ' ', you will hear the voice "Please verify 5. Reset the lock administrator". ·...
