SPINOGY Xcool Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Xcool
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xcool and is the answer not in the manual?

Questions and answers

Related Manuals for SPINOGY Xcool

Summary of Contents for SPINOGY Xcool

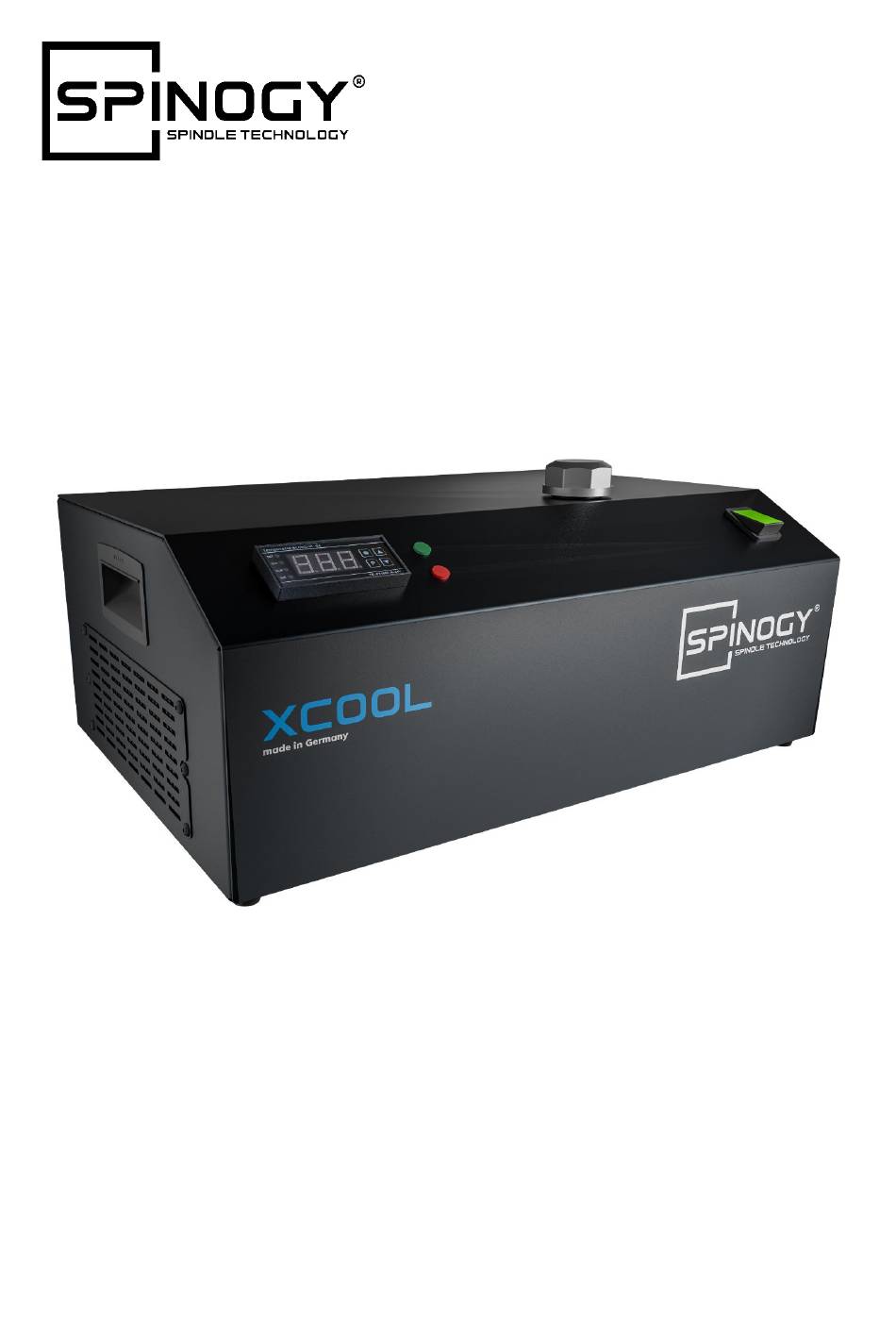

  • Page 1 Xcool OPERATING MANUAL...
  • Page 2 spinogy.de...
  • Page 3 Index Preamble General remarks 01.1 Notice 01.2 Limitation of liability 01.3 Product name 01.4 Labeling of the Xcool 01.5 Manufacturer details 01.6 Target group 01.7 Lifecyles of the machine Safety instructions 02.1 Contractual use 02.2 Symbols and notes 02.3 Personnel requisition 02.4...
  • Page 4 Maintenance 07.1 Maintenance 07.2 Spare parts Disassembly and disposal 08.1 Disassembly 08.2 Disposal Service and repair 09.1 Service and repair authorized users Warranty Declaration of installation...
  • Page 5 Please contact us for any request, questions or wishes about our products or your application case, we are glad to help you. Just use our contact form on our website or contact us via E-Mail: mail@spinogy.de. Of course, we are also available for a personal conversation.

  • Page 6: General Remarks

    This operating manual contains important information about handling the product. It has to be read carefully before use. The Xcool may only be put into operation if the operating manual was understood completely. If there are obscurities, SPINOGY must be contacted. Please follow the instructions of this operating manual. This operating manual must be available for the user at any time and must be replaced in case of loss or impracticality immediately.

  • Page 7: Manufacturer Details

    The type plate displays the characteristics of the Xcool in German. The following chart shows the translation: German word English word Spannung Voltage Max. Leistungsaufnahme Maximum power consumption Max. Durchfluss Maximum flow Max. Förderhöhe Maximum head Tankinhalt Tank capacity Max. Kühlleistung...

  • Page 8: Safety Instructions

    The Xcool is to be considered as equipment for a spindle from SPINOGY and is only approved for this purpose.
  • Page 9 • has not read this operating manual, has not read it completely or has not clearly understood it • does not meet the qualification requirements for working with the Xcool • has not received instructions from the operator for working with the Xcool is considered an unauthorized person.

  • Page 10: Special Hazard Warnings

    02.5 Modifications and unauthorized changes Modifications and unauthorized changes at the Xcool by the operator are only permitted after consulting SPINOGY. If unauthorized modifications are made, the issued CE declaration of conformity loses its validity, and the operator legally becomes the machine manufacturer.

  • Page 11: Transport, Packaging And Storage

    The packaging should therefore only be removed shortly before assembly. In addition, the packaging should be kept, if possible, to protect the Xcool in case of storage or to wrap it properly in case of return.

  • Page 12: Technical Description

    (please see chapter 01.2, limitation of liability). The following chart shows the technical data of the Xcool. These can also be taken from the type plate on the rear side of the Xcool.
  • Page 13 Rear view Side view 04 TECHNICAL DESCRIPTION...
  • Page 14 Pump Maximum flow [l/min] Maximum head [m] Supply voltage [V] Maximum current [A] Sound level db(A)] in 1 m distance < 30 Rotational speed [rpm] 2000 Volume flow [m³/h] 2000 Power supply voltage [V] Maximum current [A] Sound level [db(A)] 31,5 Relay Nominal voltage [V]...
  • Page 15 04.3 Dimensions 04 TECHNICAL DESCRIPTION...

  • Page 16: Installation

    04. Plug in the power supply cable to the power supply. The Xcool must be set up with a minimum distance from the side and rear wall to the surrounding area so that the intake area of the fan and the air outlet remain free. The following picture shows the corresponding distance that must be observed.
  • Page 17 05.4 Tubing of the Xcool On the rear side of the Xcool, the coolant inlet, marked ‘IN’ and the coolant outlet, marked ‘OUT’ are located as shown in the following picture. For the installation of the coolant hoses between the Xcool and a spindle from SPINOGY, proceed as follows: 01.

  • Page 18: Electrical Wiring

    The device fuse is already installed on delivery. The signal connector is used for the integration of the Xcool into the machine control. In the event that a flow error or high temperature is detected, a relay is switching. The allocation of the signal connector is as follows:...

  • Page 19: Filling The Tank

    We recommend using the coolant from SPINOGY as a cooling medium. If another coolant is used, a 30% glycosol-water mixture is to be used. Before filling the coolant tank, always disconnect the Xcool from the power supply and ensure that it is a volt- free.
  • Page 20 The temperature of the coolant return is measured by the temperature sensor. The value is shown on the display on the Xcool. A switching threshold of 45 °C is set in the display. If this value is exceeded, the red LED switches on and a warning signal sounds.

  • Page 21: Maintenance

    The Xcool must be switched off and disconnected from the power supply. There is a fan grille on the right and left side of the Xcool that must be removed to clean the filter. To achieve this, remove four screws on each side.

  • Page 22: Spare Parts

    To replace the fuse, disconnect the Xcool from the power supply. The fuse can then be replaced on the rear panel at the power supply connection. To do this, the fuse compartment must be pulled out (see following picture) The old fuse must be removed and replaced with a new one. The fuse compartment must then be reinserted until it clicks into place.

  • Page 23: Disassembly And Disposal

    02. Remove the coolant from the coolant tank. To accomplish this, the coolant can be pumped out via the ‘OUT’ outlet on the rear of the Xcool using a hose of the Xcool pump. The tank can be emptied almost without leaving any residue by tilting the Xcool slightly backwards.

  • Page 24: Service And Repair

    Service and repair authorized users Repairing of components of the Xcool may only be carried out by SPINOGY, since only then a perfect function can be guaranteed. If unauthorized repairs are carried out, any warranty and guarantee claim expires and SPINOGY is not liable for any resulting damage to property or personal injury.

  • Page 25: Warranty

    10. In case of self – remedy of defects by the buyer or third parties SPINOGY is not liable for the resulting consequences. The same applies to changes made, which SÖINOGY has not agreed to.

  • Page 26: Declaration Of Installation

    Declaration of installation (In accordance with EG guideline 2006/42/EG annex IIB) Original document Manufacturer Authorized to issue documents: SPINOGY GmbH SPINOGY GmbH Brunnenweg 17 Brunnenweg 17 64331 Weiterstadt 64331 Weiterstadt Deutschland Deutschland We hereby declare that the following product Product...
  • Page 27 ©SPINOGY GmbH Rev.05/2022 11 DECLARATION OF INSTALLATION...
