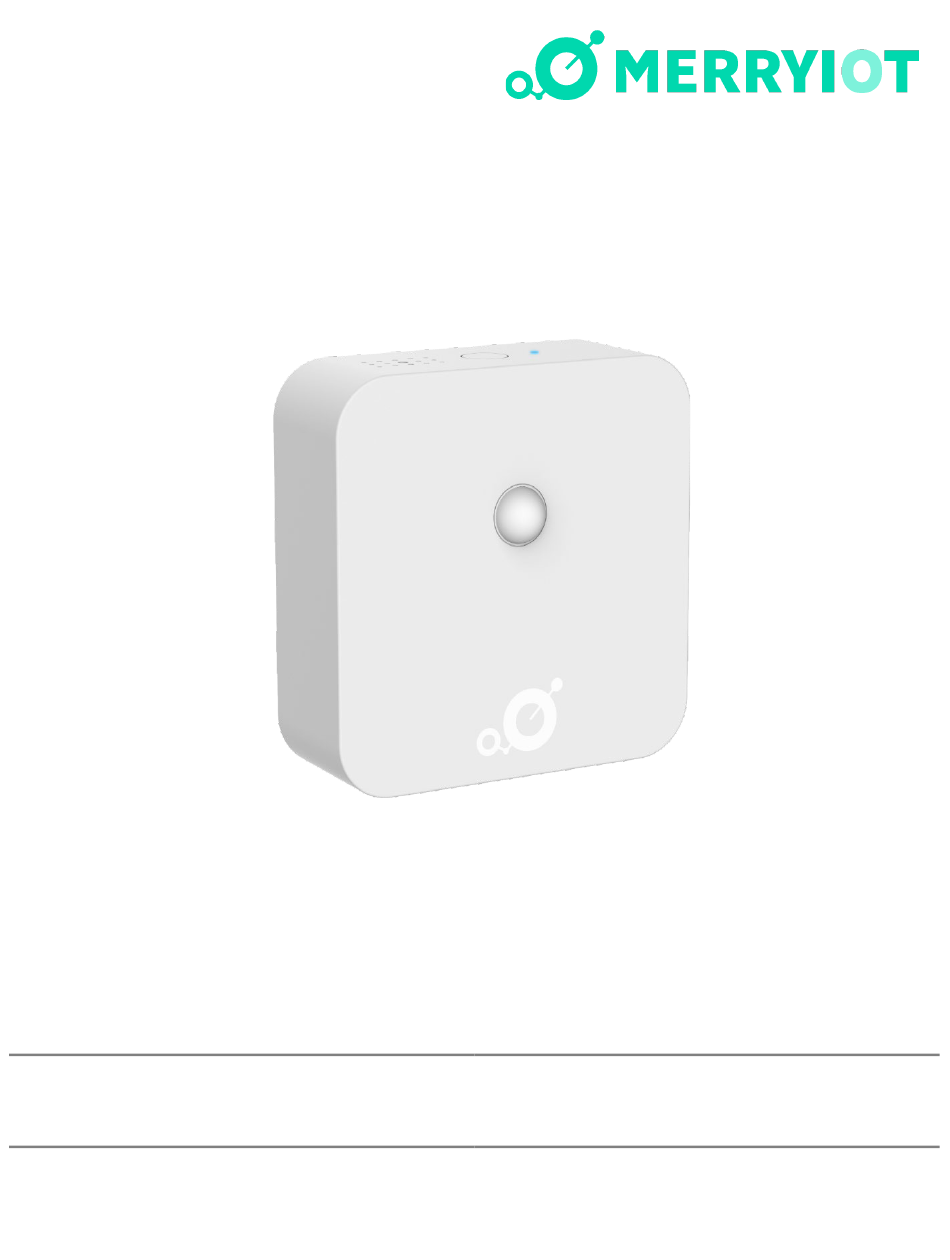

- Page 1 MerryIoT Motion Detection Reference Manual MS10-915 MS10-868 Model Name: MS10 BQW_02_0033.003...
-
Page 2: Table Of Contents
1. Description Table of Content The Motion Sensor utilizes LoRaWAN connectivity to 1. Description communicate the presence or not of a person. The 2. Specifications intended use is to place the sensor with a good view of a 2.1 Mechanical ............2 room to determine if there is motion in the room or not. -
Page 3: Specifications
2. Specifications 2.1 Mechanical 2.1.1 Sensor Length x Width x 25mm x 70mm x 70mm Height 62g without battery Weight 96g with battery Dual Passive Infrared detectors Fresnel Lens with 123° horizontal & 93° vertical view Sensor Tamper detection ... -
Page 4: Operation
3. Operation 3.1 Installation Mode Users need to press the button over 5 seconds to activate operation into installation mode. When the Sensor tries to join the network, it will keep blinking for 3 seconds. Once the sensor joins the network, the LED will keep on for 3 seconds and send an uplink. ... -
Page 5: Payload
4.1.2 Payload Port Payload Length 9 bytes Bytes Field Status Battery Temp Time Count Status Sensors status Bit [0] 1 – occupied, 0 – free Bit [1] 1 – Button pressed, 0 - Button released Bit [2] 1 – Tamper detected, 0 - No tamper detected Bits [7:3] Battery Battery level... -
Page 6: Battery
5. Battery 5.1 Replacement Use Alkaline battery (AA) only. Remove the battery cover and replace the batteries. (cross-slot screwdriver required) 5.2 Cautions CAUTION: Disposal of a battery (or battery pack) into a fire or a hot oven, or mechanically crushing or cutting of a battery (or battery pack) can result in an EXPLOSION! Leaving a battery (or battery pack) in an extremely high temperature surrounding environment can result in an EXPLOSION or leakage of flammable liquid or gas. -
Page 7: Label Format Information
6. Label format information 6.1 Device back label 6.1.1 All QR code SN:MS10915XXXXXX 6.1.2 Series Number Model:MS10 6.1.3 Model Name FCC ID:2AAS9MS10 6.1.4 FCC ID IC:26296-MS10 6.1.5 IC ID 6.1.1 All QR code URN:LW:D0: 0016160000000001:0016160000XXXXXX:01632002 The total maximum resulting character sentence is 48 alphanumeric characters long. -
Page 8: Serial Number
6.1.2 Serial Number SN: MS10915XXXXXX Not including in QR code. 6.1.3 Model Name MODEL: MS10. Fixed code, not including in QR code. 6.1.4 FCC ID 2AAS9MS10 6.1.5 IC ID 26296-MS10 6.1.6 Caution! For more information please refer to chapter 5.2. and 10. -
Page 9: Important Product & Safety Instructions
7. Important Product & Safety Instructions For the most current and more detailed information about Browan features and settings as well as safety instructions, please download the user manual for the products online at www.browan.com before the use of any Browan products or services. -
Page 10: Warnings
8. Warnings Do not place naked flame sources, such as lighted Observe the plus (+) and minus (-) marks on the candles, on or near the equipment. battery and equipment and ensure correct use. The battery shall not be exposed to excessive heat Do not use any which is not designed for use with ... -
Page 11: Cautions
10. Cautions CAUTION: Disposal of a battery (or battery pack) into a CAUTION: The unit is provided with a battery-powered fire or a hot oven, or mechanically crushing or cutting of a circuit. battery (or battery pack) can result in an EXPLOSION! There is a danger of EXPLOSION if the battery is Leaving a battery (or battery pack) in an extremely high incorrectly replaced. -
Page 12: Regulatory
11. Regulatory Hereby, Browan Communications Inc. declares that the radio equipment for Browan products complies with Directive 2014/53/EU. This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 13: Industry Canada Statement
Radiation Exposure Statement: The product complies with the US portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such a function is available. -
Page 14: Configuration Downlink Command
12. Configuration Downlink Command Note: Only For PIR Parameters Settings Port Payload Length 5 bytes *Note: Configuration Down-link Command should consider the duty cycle. 12.1 Payload Bytes Field Config Command Bit [7:0] 0x01 – Set configuration, other values – RFU Config PIR Sensor Configuration Bits [4:0]... - Page 15 Payload Content Command content 01000e02100 01 00e02100 => PIR parameter : 0x0021e000 Example: =>Room Occupied: 0100e02100 => Desk Occupied:(<=60cm) 0100148101 BROWAN COMMUNICATIONS All rights reserved...
-
Page 16: For Sensor Settings
12.2 For Sensor Settings 12.2.1 Payload Port Bytes Field Config Command 1 byte Bit [7:0] 0x00 – Set keepalive interval in sec. default value : 3600 sec value range: 15~65535 0x02 – Set occupied interval in sec. default value : 600 sec value range: 0~65535 0x03 –... -
Page 17: Command Description
Config Configuration (0~4 bytes ) See the table as follows: Command Description Config Length 0x00 Get Sensor Configuration 0 bytes (Only for unconfirmed downlink) *Note: little-endian format. 0x00 Set keepalive interval in sec 2 bytes *Note: little-endian format. 0x02 Occupied interval in sec 2 bytes *Note: little-endian format. -
Page 18: Response Content
12.3 Response Content (Only for unconfirmed downlink) Port Payload Length 18 bytes Payload Content Response content 00100e 025802 0305 040000 0500e02100 0600 00 100e => Reporting interval : 0x0e10 -> 3600 sec 02 5802 => Occupied override : 0x0258 -> 600 sec 03 05 =>...
