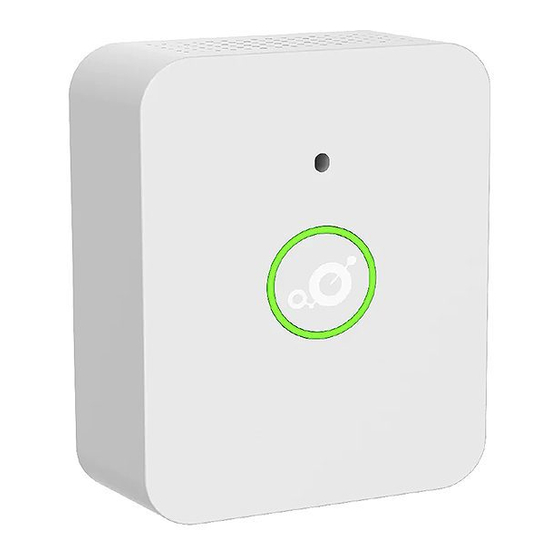

- Page 1 MerryIoT Air Quality CO2 CD10-915 Reference Manual CD10-868 Model Name: CD10 BQW_02_0032.003...
-
Page 2: Table Of Contents
1. Description Table of Content The MerryIoT Air Quality CO2 is designed for in-home and in- 1. Description ................1 building usage for consumer or facility management 2. Specifications ................2 applications. The design is optimized for high volume 2.1 Mechanical ..............2 manufacturing, optimal battery lifetime, and pleasing 2.1.1 Sensor .............. -
Page 3: Specifications
2. Specifications 2.1 Mechanical 2.1.1 Sensor Length x Width x 90mm x 70mm x 35mm Height Weight 86 g without battery 124 g with battery Sensor Temperature & Relative Humidity 2.2 Environmental 2.3 Power Temperature 0°C to +50°C Source 3.6V AA Li-SOCI2 1200 mAH battery x IP Rating IP 40 equivalent System Maximum... -
Page 4: Operation
3. Operation 3.1 Installation Mode ● Users need to press the button over 5 seconds to activate operation into installation mode. When the Sensor tries to join the network, it will keep blinking the yellow LED for 3 seconds. ● Once the sensor joins the network, the yellow LED will keep on for 3 seconds and send an uplink with a CO2 value of 0. -
Page 5: Messages
4. Messages LoRaWAN Packets for this device use port 127 4.1 Status 4.1.1 Triggers CO2 Sensor Packet Triggers: ● 60-minute inactivity ● CO2 > 1000 ppm ● The device will scan the environment every 5 minutes. Button Pressed Trigger: ● Immediately send a message with Temp, RH values, and CO2 as 0 within the first 5 minutes after joining. -
Page 6: Battery
5. Battery 5.1 Replacement Use ER14505 (3.6V AA Li-SOCI2) only. Remove the battery cover and replace the batteries. (Cross-slot screwdriver required) 5.2 Cautions CAUTION: Disposal of a battery (or battery pack) into a fire or a hot oven, or mechanically crushing or cutting of a battery (or battery pack) can result in an EXPLOSION! Leaving a battery (or battery pack) in an extremely high temperature surrounding environment can result in an EXPLOSION or leakage of flammable liquid or gas. -
Page 7: Label Format Information
6. Label format information 6.1 Device back label 6.1.1 All QR code 6.1.2 Series Number SN:CD10915XXXXXX Model:CD10 6.1.3 Model Name FCC ID:2AAS9CD10 6.1.4 FCC ID IC:26296-CD10 6.1.5 IC ID 6.1.1 All QR code URN:LW:D0: 0016160000000003:0016160000XXXXXX:01632001 The total maximum resulting character sentence is 48 alphanumeric characters long. 6.1.1.1 JoinEUI 900MHz: 0016160000000003. -
Page 8: Fcc Id
6.1.4 FCC ID 2AAS9CD10 6.1.5 IC ID 26296-CD10 6.1.6 Caution! For more information, please refer to chapter 5.2. and 10. 6.2 Packaging label GS1 DataMatrix The GS1 Application Identifier (21) indicates that the GS1 Application Identifier data field contains a serial number. ... -
Page 9: Important Product & Safety Instructions
7. Important Product & Safety Instructions For the most current and more detailed information about Browan features and settings as well as safety instructions, please download the user manual for the products online at www.browan.com before the use of any Browan products or services. Certain sensors contain magnets. -
Page 10: Notices
9. Notices Avoid exposing your sensors or batteries to very cold PROP 65 WARNING: This product contains chemicals or very hot temperatures. Low or high-temperature known to the State of California to cause cancer and conditions may temporarily shorten the battery life or birth defects or other reproductive harm cause the sensors to temporarily stop working. -
Page 11: Regulatory
11. Regulatory Hereby, Browan Communications Inc. declares that the radio equipment for Browan products complies with Directive 2014/53/EU. This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Industry Canada Statement
11.2 Industry Canada statement: This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause undesired operation of the device Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes au (x) RSS (s) exemptés de licence d'Innovation, Sciences et Développement économique Canada. -
Page 13: Configuration Downlink Command
12. Configuration Downlink Command 12.1 Configuration Command Port 12.1.2 Payload Bytes Field Config Command 1 byte Bit [7:0] 0x00 – Set keep-alive value & Detection Interval. Keepalive default value: 12 => 12*5 min = 60 min Per unit: 5min Value range: 1~216 (5min ~ 18hours) *Note: 0 means no changes Detection Interval value (0 means no change): 5 minutes value range: 1~216 (5min ~ 18hours) - Page 14 *Note: little-endian format. 0x03 [0~5] Buzzer alarm period in seconds 1 byte 0~63 seconds [6] Enable/Disable CO2 sensor 0: disable 1: enable(default) [7] Enable/Disable proximity sensor 0: disable (default) 1: enable 0x04 Set CO2 threshold 2 bytes *Note: little-endian format. 0x05 Set CO2 Calibration Value 2 bytes...
-
Page 15: Response Content
12.2 Response Content (Only for unconfirmed downlink) Port Payload Length 11 bytes Payload Content Response content 000C01 0343 04B004 0590 0605 00 0C01 => Set keep alive value: 0x0C -> 12 (*5min) = 60 min (per unit:5min), , Detection Interval =1* 5 minutes (if 0 means no change)(per unit:5min) 03 43 =>...
