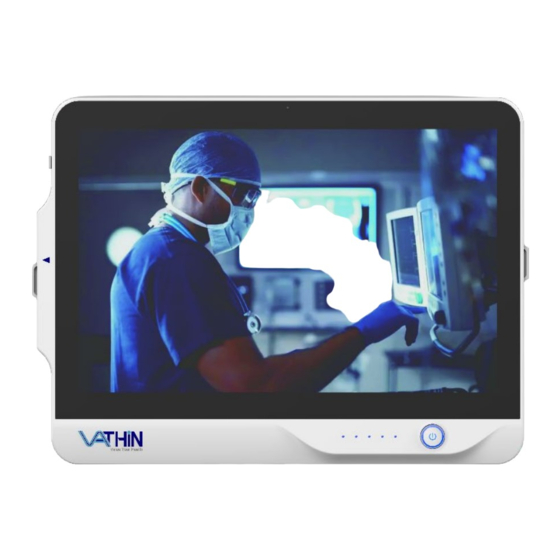

User Manual of Digital Video Monitor
Name
Prepared By
Reviewed By
Approved By
Distributed To
Version
Modification
No.
Date
A/0
2021.01.19
Hunan Vathin Medical Instrument Co., Ltd.
Date
Date
Date
Release Notes
User's Manual
0/30
Page
Release Date
Effective
Date
Competent
Department
Modification
Description
New Document
QP-DMR-DVM02-003
No.
Controlled
Status
R&D
Version No.: A
Department
Revision No.: 0
Prepared/
Modified By
Advertisement
Table of Contents
Related Manuals for Vathin DVM-B1
Summary of Contents for Vathin DVM-B1
- Page 1 Hunan Vathin Medical Instrument Co., Ltd. User's Manual User Manual of Digital Video Monitor 0/30 QP-DMR-DVM02-003 Name Page Controlled Status Prepared By Date Release Date Effective Reviewed By Date Date R&D Competent Version No.: A Approved By Date Department Department Revision No.: 0...
- Page 2 ◆For use with Vathin endoscope. ◆Before use, thoroughly review this manual. ◆Please keep all instruction manuals in a safe, accessible place. ◆Have any questions or comments about this manual, contact with Vathin Medical. Hunan Vathin Medical Instrument Co., Ltd. Version No.: A/0...
-
Page 4: Table Of Contents
Table of Contents 1. Important Information - Read Before Use ..................2 1.1. Intended Use ..........................2 1.2. Contraindication ..........................2 1.3. Repair and Refit ..........................3 1.4. Keywords ............................3 1.5. Warnings and Cautions ......................... 3 2. Symbols ............................5 3. - Page 5 8.1. Storage ............................23 8.2. Battery Maintenance ........................23 8.3. Return the Digital Video Monitor for repair .................. 23 8.4. Disposal ............................24 9. Technical Specification ........................ 24 9.1. Standard Applied ......................... 24 9.2. Specification ..........................24 10. Troubleshooting ......................... 25 Appendix 1.
-
Page 6: Important Information - Read Before Use
If, during the use of this device or as a result of its use, a serious incident has occurred, please report it to the manufacturer and to your national authority. This Instruction for use only applies to the Vathin Digital Video Monitor. See relevant manuals for other products from Vathin Medical. . -
Page 7: Repair And Refit
The product can be repaired only by the person authorized by Hunan Vathin Medical Instrument Co., Ltd. - Page 8 Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the DVM-B1 & DVM-B2, including cables specified by the Vathin Medical. Otherwise, degradation of the performance of this equipment could result. .
-
Page 9: Symbols
2. Symbols Symbols Expression Symbols Expression Waste Bin symbol,indicating that waste mustbe collected according CE marking of conformity tolocal regulation and collection schemes fordisposal of electronic andelectrical waste (WEEE) General warning sign Manufacturer Country of manufacture:CN(china) Refer to instruction manual Production date, followed by YYYY-MM-DD. -
Page 10: System
DVM－B1 14PIN DVM－B2 16PIN 3.2. Product Compatibility The Digital Video Monitor has been designed to be used in conjunction with Vathin endoscope and medical monitor. The compatible equipments are listed below. 3.2.1. Compatible Endoscopes Model Compatible endoscopes Single-use Flexible Ureteroscope... -
Page 11: Compatible Monitor
Open the product packaging to ensure that all the components are provided. Check all the items in the package with the components shown below. Check each item for damage. Please contact Vathin Medical if any component is missing or damaged. -
Page 12: Optional Accessories
USB cable 1 pcs HDMI cable 1 pcs User's manual 1 pcs Multilingual User's Manual 1 pcs （CD） Reset pin 1 pcs 4.2. Optional Accessories Items Quantities Pictures U Disk 1 pcs pylons 1pcs... -
Page 13: Structure And Function
Trolley 1pcs 4.3. Structure and Function Part Function Power button Long press the power button to turn on the product, and press it to turn off the product. Power indicator It is used to indicate the battery power status. - Page 14 The light is blue and keep on when the device is on. And it flashes when the device is being charged and when the battery is low. Display screen It is used to display the image after the endoscope is connected, and it is a touch screen.
-
Page 15: Preparation And Operation
*It is recommended to use a φ 1 mm and 10 mm long pin. Video endoscope The video endoscope cable can be inserted to this socket to cable connector connect the video endoscope and the product. socket Ventilation holes Cool hardware during use Bracket It is used to support the product on a plane surface. -
Page 16: Installation Of Digital Video Monitor
To avoid the risk of electric shock, only the appropriately approved medical electrical equipment are allowed to be connected with the product. The product can only be connected to a medical display screen that has been qualified as per IEC ... -
Page 17: Power-On And Setting
4. Connect the Digital Video Monitor with medical display or PC as needed. 5. Install the endoscope to the Digital Video Monitor by inserting the endoscope connector into the endoscope socket (No. 10 in Section 4.3 Structure and Function) properly as the arrow indicated. 5.3. -
Page 18: Inspection Of The System
3. Perform examination: related function of the Digital Video Monitor please refer to Chapter 6 Function. 5.6. After Use 1. Disconnect the Vathin endoscope from the product. For information on how to dispose of the Vathin endoscope, refer to its user's manual. -
Page 19: Basic Function Interface
File management Icon for the file management interface. System setting Icon for the system setting interface Tap this button or the Vathin endoscope camera button to Photo-shooting 6.1.3 take the image and automatically save it in the patient file. The endoscope is connected. And function of the icons are available. -
Page 20: Enter Patient Information
White balance The white balance adjustment is required before surgery. 6.1.2 Patient Tap it to enter the patient information mode. 6.1.1 information Patient Tap it to return to the basic function interface information Photo preview zone, will be updated after the image being Photo preview 6.1.3 taken. -
Page 21: White Balance Adjustment
2. Hold the endoscope stable to avoid wash-out of the monitor image, monitoring a white object such as a piece of gauze in such a way that it does not contact the endoscope,, contact of the endoscope with a non-sterilized object may result in cross-contamination. Vathin Medical does not provide any accessories (e.g. white cap) for white... -
Page 22: Photo-Shooting
3. After taking a photo, the image area in the lower right corner will be updated accordingly. Click the updated image to preview the image. Note Keep the Vathin endoscope as still as possible to prevent obscure images during the photo-shooting. 6.1.4. Video Recording 00:00:00 Tap icon... -
Page 23: Photos/Videos Replay
the figure below. Description of file management-related icons Reference Icon Name Function section File Icon for the file management interface. management You can tap the icon or long press a folder/file to enter File editing the selection mode, and then perform multiple selection, cutting, renaming, and deletion operation on the file or folder. -
Page 24: Medical Record Interface
Note The Photos/Videos taken are stored according to date and patient ID, and the file folder is named accordingly.For example, if the operation date is Sept. 17, 2020, patient ID is 12, the file path will be: >2020-09-17>12. If the patient ID is not set: A "pictures/medias" folder will be generated in the date folder after ... -
Page 25: Wifi Setting
Used to adjust the brightness,sharpness,gamma,red Screen adjustment saturation,green saturation,blue saturation Calendar Used to set the date and time Equipment information Used to view the equipment information User account Used to set the user accounts Erase data Used to erase internal files and user data Network setting Used to set languages, Wifi and LAN 6.3.1... -
Page 26: Cleaning And Disinfection
The product should be cleaned and disinfected before and after each use. It is recommended to clean and disinfect the product according to the following instructions before and after use. Vathin Medical has validated these instructions according to AAMI TIR 12 and 30. Any deviations from the instructions shall be assessed properly to determine its effectiveness and potential adverse consequences to ensure that it continues to achieve its intended purpose. -
Page 27: Disinfection
8.3. Return the Digital Video Monitor for repair Vathin Medical shall have the right to request the technical department or equivalent at the customer's site to repair the product under the proper guidance of Vathin Medical. Any defective Vathin Digital Video Monitor must be disposed of by the person authorized by Vathin Medical. -
Page 28: Disposal
9. Technical Specification 9.1. Standard Applied The Vathin ® Digital Video Monitor meets the following standards: - IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance - IEC 60601-1-2 Medical Electrical Equipment - Part 1–2 General requirements for basic safety and essential... -
Page 29: Troubleshooting
Power adapter Power supply requirement 100–240 V AC; 47–63 Hz; 1.62–0.72 A Output Power 15V DC,4.2A max Protection against electric shock class I Dimensions Length× width × thickness 310 mm × 231 mm × 39 mm Weight 2140g Storage and transportation Recommended storage temperature [°C, (°F)] -10 °C to +40 °C (14–104 °F) Relative humidity [%]... -
Page 30: Appendix 1. Electromagnetic Compatibility
Appendix 1. Electromagnetic Compatibility Essential Performance The product is designed to provide images for observation, excluding short-term automatically recoverable reduction caused by electromagnetic interference. The following cable information is given for EMC reference only. Cable Max. cable length Qty. Category Shielded/unshielded AC power cable 1.8 m... - Page 31 Statement The product is designed compatible with the high-frequency surgical equipment, i.e. it is allowed to keep working or standby near the high-frequency surgical equipment. In case of interrupted AC input voltage, the product will shut down, and once the power supply is restored, it ...
- Page 32 Rated power frequency 30 A/m IEC 61000-4-8 magnetic field 50 or 60 Hz Table 3. Fields near the radio-frequency wireless communication devices Immunity test level Test frequency Band (MHz) (MHz) Professional medical environment 380–390 Pulse modulation 18 Hz, 27 V/m 430–470 FM, ±5 kHz deviation, 1 kHz sine, 28 V/m 704–787...
- Page 33 Table 5. Signal input/output ports Immunity test level Phenomenon Basic EMC standards Professional medical environment Conducted 3 V, 0.15–80 MHz disturbances induced IEC 61000-4-6 6 V in ISM bands between 0.15 MHz and 80 MHz by radio-frequency 80% AM at 1 kHz fields...
-
Page 34: Appendix 2. Information About Wifi
Appendix 2. Information About Wifi Warnings Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 35 ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée dans un autre environnement.cette eqipment devrait être installé et exploité avec distance minimale de 20 entre le radiateur et votre corps. The user manual for local area network devices shall contain instructions related to the restrictions mentioned in the above sections, namely that: the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;...
- Page 36 1:2.412-2.472GHz 2:5.15-5.25GHz 3:5.25-5.35GHz 4:5.47-5.725GHz 5:5.725-5.875GHz...
- Page 37 [Manufacturer Name, Registrant Name, and After-sales Service Provider]: Hunan Vathin Medical Instrument Co., Ltd. [Production Address, Manufacturer's Domicile, and Registrant's Domicile]: 1/F, Building 12, Innovation and Entrepreneurship Service Center No. 9 Chuanqi West Road, Jiuhua Economic Development Zone, 411100 Xiangtan, Hunan China [Manufacturer and Registrant Contact] Tel.: +86-21-34781226 +86-731-55558558...
