SpectRah FUSION SL70 Installation And Operation Instruction

To ensure long life and reliability from your SL70 Bars please adhere to the following guidlines
The SL70 components are designed to IP67 and are suitable for use in installations where
sprinklers are used, however DO NOT SUBMERGE COMPONENTS.
Driver units are designed to IP65 however the standard mains AC plug is not. Do not expose
the mains plug to wet or damp conditions. If the driver needs to operate in a damp or wet
location it must be installed with an IP65 junction box by a suitably qualified electrician.
Avoid touching the LED lens membrane. If cleaning is required use IPA or warm soapy water
with a lint free cloth to gently wipe the membrane. Do not use volatile solvents of any kind.
The SL70 bars are designed to be used in tandem. Single bar operation is not
recommended however, If operation of a single bar is absolutely necessary then it must be
run with the output dimmer set at approximately 50%.
Never operate the units face down or laying directly on any surface. The mounts, attached to
a suitable supporting structure, must be used at all times the bars are employed in any
installation permutation other than direct suspension.
Always maintain a minimum clearance of 50mm between the LED light emitting surface and
any other surface.
Before unplugging any part of the system disconnect driver from mains supply. It is
recommended to disconnect each module prior to repositioning to avoid damaging cable
entries.

Basic Specifications

Input
Output
Maximum Suspended Weight
Normal Operating Temperature

Photometric Specifications

The SL70 Bars are available in 3 different photometric spectrums.
For specific PPFD and wavelength details please log on to our
website.

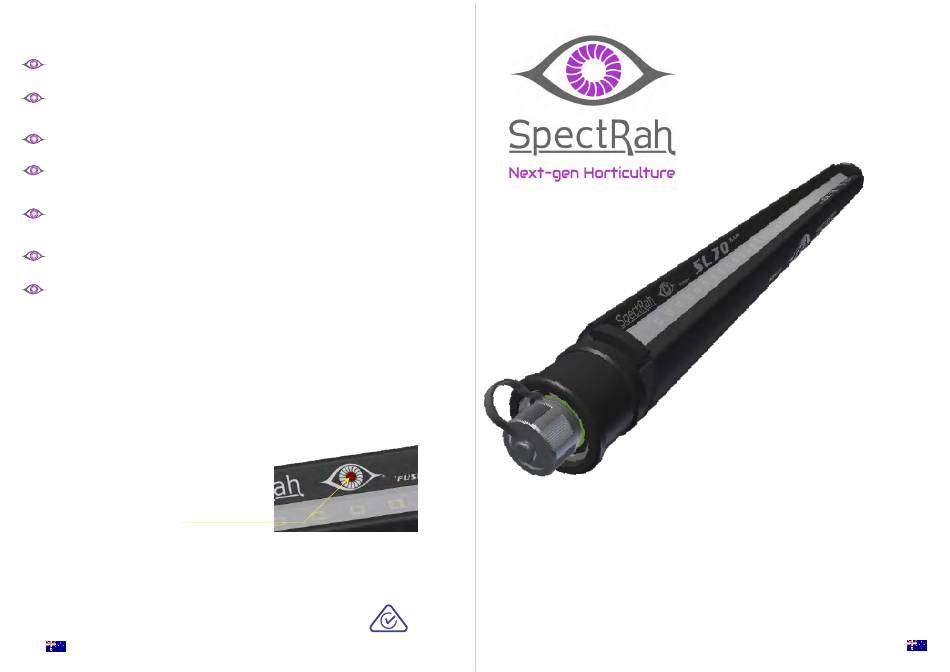

A coloured dot at the centre of the Spectrah Eye Logo on each bar
identifies its output:
No Dot - 12.5% Blue
Red Dot - 2.5% Blue
Yellow Dot - 25% Blue

Warranty

The LED and Driver modules are provided with a warranty of five years against manufacturing defects or failure to perform to specifications provided
that, installation has been carried out in accordance with these instructions and said components have not been subjected to incorrect operation or
maintenance, unauthorised disassembly or modification or any other damage arising from an intervening cause. Refer to full warranty document
on website for more detail.
www.spectrah.com.au/fusion/warranty
Designed and built in Australia to relevant AS/NZ general requirements and tests
Copyright Spectrah 2018
www.spectrah.com.au
Made In Australia from local and imported components
180 - 240 Vac 0.12 - 0.2 A 47 - 63 Hz
36.0 Vdc 900mA 32.5 W
1.00kg
0 0
-30 C to +40 C Ambient
Installation and operation Instructions
Thank you for purchasing the Spectrah SL70 LED Supplementary
Horticulture Lighting System. To achieve the best performance from
your SL70, please follow the recommendations and guidelines published
in this document.
