- Page 1 AM/FM STEREO RECEIVER STEREO RECEIVER AMPLIFIER IS-HC040918 IS-HC040918 User's Manual POWER TUNER SLEEP AM/FM MEMORY BALANCE MUTE AUTO SCAN BASS TREBLE IS-HC040918...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTICE! ! NOTICE! ! Thank you for purchasing our product. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference. CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). - Page 3 SETUP AND MAINTENANCE OF THE RECEIVER 1.Provide spaces for sufficient ventilation as indicated: 15cm/6" STEREO RECEIVER AMPLIFIER IS-HC040918 10cm/ 4" 15cm / 6" 10cm/ 4"...
-
Page 4: Table Of Contents
TABLES OF CONTENTS TABLES OF CONTENTS FIRST THING FIRST UNPACK THE RECEIVER ABOUT REMOTE CONTROL BASIC CONNECTIONS CONNECTING THE SPEAKERS CONNECTING THE WIRES CONNECTING THE MAIN SPEAKERS CONNECTING THE ANTENNAS CONNECTING FOR POWER USING HEADPHONES RECEIVER CONTROLS & OPERATIONS PANEL INTRODUCTION DISPLAY MESSAGES TUNING THE RECEIVER SELECT THE AM/FM BAND... -
Page 5: First Thing First
FIRST THINGS FIRST UNPACKING THE RECEIVER You should receiver the following items: One receiver unit STEREO RECEIVER AMPLIFIER IS-HC040918 Indoor FM antenna AM loop antenna AAA,R3,UM-4 batteries Warranty Card One Remote Control SLEEP AM/FM BALANCE MUTE BASS TREBLE IS-HC040918 One instruction book... -
Page 6: About Remote Control
4.Avoid touching the leaked material and contact with clothing, etc. Clean the battery compartment thoroughly before installing new batt- eries. REMOTE CONTROL OPERATION RANGE STEREO RECEIVER AMPLIFIER IS-HC040918 Within approximately 6m(19.7feet) NOTES: 1.The area between the remote controller and the main unit must be clear of large obstacles. -
Page 7: Basic Connections
TV. If there are multiple video jacks on the back of your TV , use AUDIO RECEIVER STEREO RECEIVER AMPLIFIER IS-HC040918 jack on the back of your stereo DVD to the audio jack on the back of your DVD to the... -
Page 8: Connecting The Speakers
FIRST THINGS FIRST CONNECTING THE SPEAKERS CONNECTING THE WIRES 1.Loosen the knob. 2.Insert the bare wire.[Remove approx.5mm(1/4 ) insulation from the speaker wires]. 3.Tighten the knob and secure the wire. Or you also may use a banana plug. Speaker Polarity When connecting the speakers, make sure the polarities ("+"... -
Page 9: Connecting For Power
FIRST THINGS FIRST CONNECTING FOR POWER Make sure you connect all your other electronic components and the speakers before plugging your receiver into the outlet. Plug the power cord into the wall outlet, matching the wide blade of the plug with the wide slot in the outlet. Be sure to insert the plug completely. -
Page 10: Receiver Controls & Operations

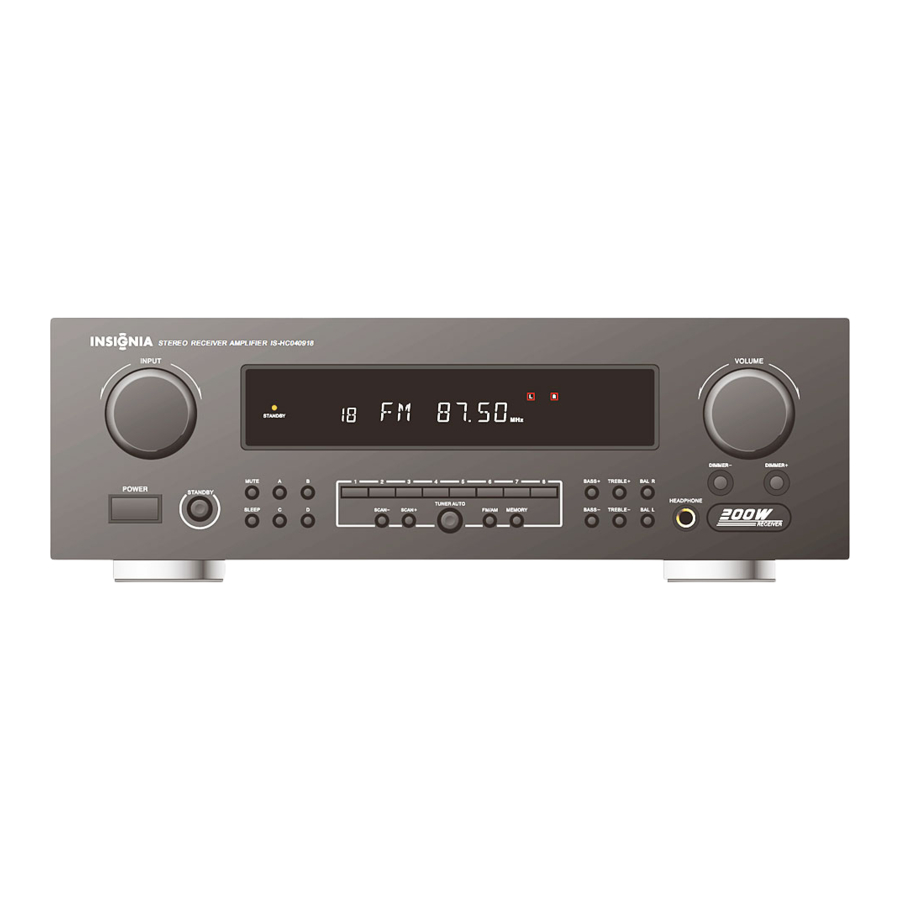

RECEIVER CONTROLS & OPERATIONS PANEL INTRODUCTION STEREO RECEIVER AMPLIFIER IS-HC040918 1.INPUT selector Turn the knob to select the input source you want to listen to or watch. 2.Standby indicator Lights up when this unit is in standby mode. Number 1-8 button Press these buttons to select preset tuning channel. -
Page 11: Display Messages
RECEIVER CONTROLS & OPERATIONS DISPLAY MESSAGES The following is an example of all the display messages you may encounter while using your receiver. Specific messages re referen- ced within the section(s) they apply. SLEEP MEMORY STEREO Tuner stereo signal detected. TUNED Tuner station detected. -
Page 12: Storing Stations In Memory
RECEIVER CONTROLS & OPERATIONS STORING STATIONS IN MEMORY You can store up to 32 AM and FM stations, these stations can be stored in random order. TO STORE A STATION 1.Press the FM/AM button on the front panel or remote control select the reception band. -
Page 13: Connecting Auxiliary Components
CONNECTING AUXILIARY COMPONENTS BACK PANEL INTRODUCTION 5 5 6 6 7 7 8 8 9 9 11 11 1.FM antenna input 2.AM antenna input 3.Right channel speaker output 4.Left channel speaker output 5.VCR audio input jacks 6.AUX audio input jacks 7.CD audio input jacks 8.DVD audio input jacks 9.REC audio output jacks... -
Page 14: Before You Connect
- Try not to coil any power cables and keep them away from the audio/video cables as much as possible. - Make sure all antennas and cables are properly grounded. Refer to the Safety Tips sheet packed with your receiver. PLAYER AUDIO RECEIVER STEREO RECEIVER AMPLIFIER IS-HC040918... -
Page 15: Remote Control
AM/FM BALANCE MUTE BASS TREBLE IS-HC040918 14.TUNING SCAN+,SCAN- buttons Press the SCAN+ side to tune in to a higher frequency. Press the SCAN- side to tune in to a lower frequency. Press and keep two second minutes, scan automatically. POWER... -
Page 16: Care And Maintenance
CARE AND MAINTENANCE TROUBLESHOOTING TIPS RECEIVER/TUNER OPERATION STEREO indicator is off. - Adjust the antenna. - The signal is too weak. Connect an external antenna. - The signal is Mono. - Sever hum or noise. - The signal is too weak. Connect an external antenna. GENERAL No audio. -
Page 17: Equipment Specifications
EQUIPMENT SPECIFICATIONS AMPLIFIER SECTION Left & Right Channel...2X100Watts Signal to Noise(A weight)...85dB Frequency Response...20Hz-20 KHz+/-1.5 dB AM TUNER SECTION Frequency Response...80Hz 2.3 KHz +/- 6dB Usable Sensitivity..55dBu @ S/N 20 dB Signal to Noise...38 dB Image Ratio... 30 dB @ 1000KHz IF Rejection ...40 dB FM TUNER SECTION Frequency Response... - Page 18 IS-HC040918 STEREO RECEIVER AMPLIFIER Manufactured for Insignia Products 7601 Penn Ave S. Richfield, MN 55423 USA...
