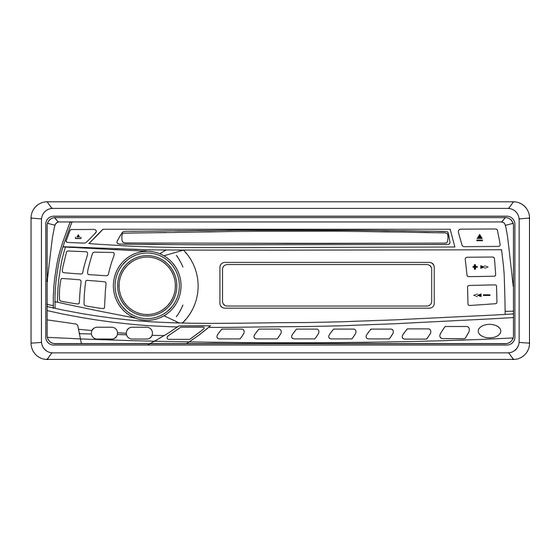

IN-CS102
OWNER'S MANUAL
Mobile Audio System
• PLL Synthesizer Stereo Radio
• Car CD/MP3/WMA Player
• Automatic Memory Storing
• Full Detachable Panel
• Preset Equalization
• Auxiliary Input Function

Advertisement

Table of Contents
loading

Related Manuals for Insignia IN-CS102

Summary of Contents for Insignia IN-CS102

  • Page 1 IN-CS102 OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Car CD/MP3/WMA Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Auxiliary Input Function...

  • Page 2: Table Of Contents

    CONTENTS Installation ...3 Take out screw before installation...3 DIN Front-Mount (Method A) ...3 Installing the unit...3 Removing the unit...4 DIN Rear-Mount (Method B) ...5 Using the detachable front panel ...6 Wiring Connection ...7 Operation ...8 Location of keys...8 Switching on/off the unit ...9 Faceplate release ...9 Sound adjustment...9 Loudness ...9...

  • Page 3: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

  • Page 4: Removing The Unit

    INSTALLATION Sleeve L Key Outer Trim Ring Front Panel R Key 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective.

  • Page 5: Din Rear-Mount (Method B)

    INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

  • Page 6: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button ( ) on the front panel and pull off the front panel. Release Button Front Panel 2. Keep front panel into the case. Protective Case Front Panel INSTALLING THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel...

  • Page 7: Wiring Connection

    WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (ACC+) FUSE MEMORY YELLOW BACK-UP (B+) BLACK GROUND (B–) POWER BLUE ANTENNA WHITE FRONT Lch SPEAKER WHITE/BLACK GREEN REAR Lch SPEAKER GREEN/BLACK MAIN UNIT AUX IN CABLE FRONT RCA CABLE REAR RCA CABLE GREY GREY/BLACK VIOLET...

  • Page 8: Operation

    OPERATION LOCATION OF KEYS...

  • Page 9: Switching On/Off The Unit

    OPERATION SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except button (7) and When system is on, press PWR button (9) to turn off the unit. FACEPLATE RELEASE Press button (7) to detach the removable faceplate. SOUND ADJUSTMENT Press SEL button (10) shortly to select the desired adjustment mode.

  • Page 10: Radio Operation

    OPERATION RADIO OPERATION • SWITCHING TO RADIO MODE Press MOD button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOU button (13) shortly to select the desired band.

  • Page 11: Cd Operation

    OPERATION CD OPERATION • SWITCHING TO CD MODE If there is no CD inserted in the driver: Gently insert the CD with the printed side uppermost into the CD compartment until you feel some resistance. The CD is drawn into the drive automatically.

  • Page 12: Display Information

    OPERATION Audio Mode selection button in MP3 operation. When pressed, it is activated as selecting each mode of Digital Audio. “Searching track directly” => “Searching Directory or File Name”=> “Navigation” from root by MANU/SKIP UP/DOWN buttons => “Navigation” from current directory by MANU/SKIP UP/DOWN buttons.

  • Page 13: Wma Operation

    OPERATION KEY Assigned IN Searching mode(Table 1) AS/PS Mode Select BND/LOU ENTER A, B, C, 1 D, E, F, 2 G, H, I, 3 J, K, L, 4 M, N, O, 5/ Directory DOWN P, Q, R, 6/ Directory UP S, T, U, 7 MANU/SKIP V, W, X, 8...

  • Page 14: Disc Notes

    OPERATION DISC NOTES: A. Notes on discs: 1. Attempting to use nonstandard shape discs (e.g. square, start, heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape etc., onto the label side or the recording side of any discs, as it may cause a malfunction.

  • Page 15: Specification

    Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB)

  • Page 16: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
