Summary of Contents for acime Ambu Packot 3

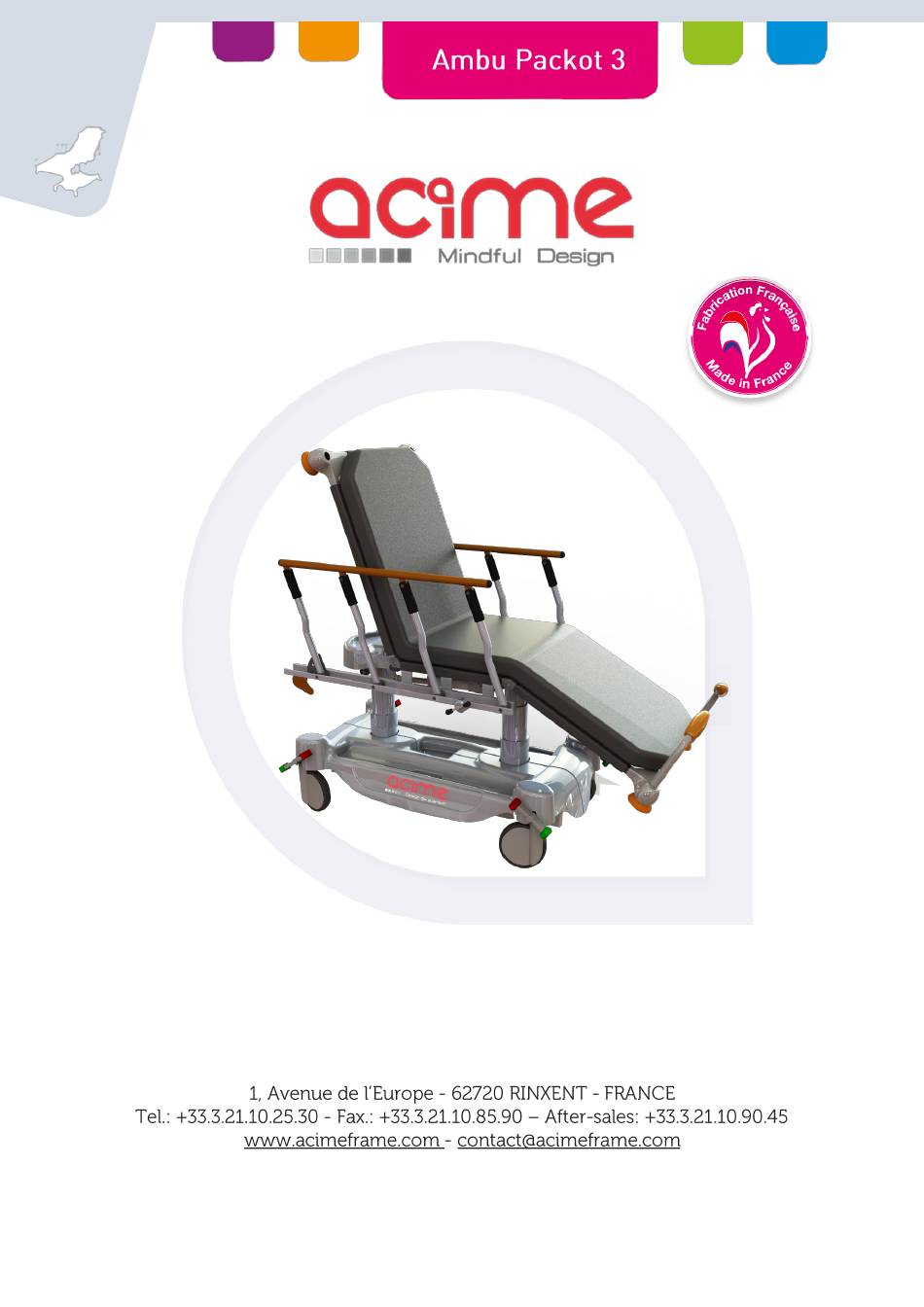

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
Procedure for cleaning and disinfecting the product .............. 26 Storage instructions ......................29 Recycling of equipment ......................29 Maintenance ......................30 Spare parts ..........................30 After-sales service: Acime Tech ..................... 30 Product control ........................31 Warranty conditions ......................33 Maintenance log ........................... 34 Notes ......................... 35... -
Page 3: General Points
General points Dear Customer, The Acime Frame Company thanks you for your confidence. This user manual is for the use of the product's receptionist and its daily user. It provides the necessary knowledge for its proper use. Keep it preciously and keep it at the disposal of the users. -
Page 4: Introduction For The Environment And Integration Of Staff With Disabilities
The rest of the waste is recovered either by our suppliers for treatment or by a specialised company. Since 2009, Acime Frame has implemented the charter of eco-citizen gestures in companies. Acime Frame pays particular attention to integrating staff with disabilities. -
Page 5: Before Use
The weight of the patient must be taken into account, as the chair can support a maximum load of 240 kg. The lifetime of "ACIME FRAME" products is 10 years, but this fact varies according to the use and maintenance of the product. - Page 6 Wheels Ø200mm with central locking by pedal on head and foot side with 5th directional central wheel Positions for IV pole and accessories on each side of the seat Side protections on seat Push handles on the foot side ©Acime Frame – OCTOBER 2020...
-
Page 7: Product Description
F – Removable plastic cover with integrated O² support G – Vice with universal rail H – Double column with variable height I – Barrier release lever J – Steel frame K – Shockproof bumpers ©Acime Frame – OCTOBER 2020... -
Page 8: Options (Non-Exhaustive List)
Foldable handles at the head or foot sides Meal tray Touch screen support Equipment tray Reversible equipment tray 3-position guide bar ©Acime Frame – OCTOBER 2020... - Page 9 Reading lamp Programmable control panel Hand surgery table Side rails on seat Universal rails on backrest Telescopic IV pole Simple IV pole ©Acime Frame – OCTOBER 2020...
- Page 10 Control pedals Variable height pedal Armrest Wedge for small people Backrest pedal Goepel-type shin pad ©Acime Frame – OCTOBER 2020...
-
Page 11: Product's Signage
Sitting on the leg rest is dangerous, there is a risk of tipping over and deterioration. Store and use in a dry place Check the locking of the barriers (for products fitted with barriers) Always provide a safe manoeuvring area around the chair. ©Acime Frame – OCTOBER 2020... -
Page 12: Technical Sprecifications
Max. 6 000 N Permissible tractive force Max. 3 000 N Sound volume 54 dB Control unit Rated voltage 100 – 240 V AC. 50/60 Hz Rated current Max. 3.15 A Electrical protection class Degree of protection IP66 ©Acime Frame – OCTOBER 2020... - Page 13 650, 750, 850 L1 : overall width 810, 910, 1010 L4 : Overall length 2200 L2 : Wheelbase width L3 : Wheelbase length 1180 Ground Clearance Empty weight (variable according to mounted options) 98 g ©Acime Frame – OCTOBER 2020...
-
Page 14: Safety Rules Before Use
▪ Thank you for consulting this manual and for respecting the rules and advice provided by Acime Frame. Make sure that any new equipment mounted on the product is properly installed and functioning. ▪ Before use, make sure that all transport straps have been removed. -
Page 15: Use
▪ Inappropriate use of the treatment chair and failure to follow the maintenance and safety instructions can endanger the patient, significantly reduce its longevity and relieve the Acime Frame company of all responsibility. ▪ Check that the mains voltage corresponds to that indicated on the chair. (see page 11) ▪... - Page 16 ▪ There is a significant risk of mutual interference if electro-medical equipment is used during examinations or treatments (ultrasound, encephalogram, etc.). It is recommended to perform the examination with the product disconnected from the mains. ▪ No modifications may be made to this device without the manufacturer's permission. ©Acime Frame – OCTOBER 2020...
- Page 17 ▪ The patient most "at risk" is invalid, agitated, not lucid. The chair and its armrests are medical devices according to the 93/42/CE directive. ▪ The majority of accidents occur at night, when surveillance is less close. ©Acime Frame – OCTOBER 2020...
- Page 18 We offer accessories to increase the safety of the barriers. ▪ It is important that all persons handling the barriers have received adequate training. Regular maintenance prevents the risk of detachment or unwanted opening of the barrier. ©Acime Frame – OCTOBER 2020...
-
Page 19: Moving And Braking
The central directional wheel is lowered and exerts pressure on the ground. The 5th wheel is a directional wheel to help you roll. It is located in the middle of the chair and allows it to swivel. ©Acime Frame – OCTOBER 2020... -
Page 20: Using The Barriers
To unlock the barrier, push the lever (see arrow) and move the barrier to the right or left. To return the barrier to the safe position Move the barrier upwards until the locking lever engages. ©Acime Frame – OCTOBER 2020... -
Page 21: Safe Lifting Method
To lift the chair safely without damaging it: • Remove the 2-part plastic cover • Put the straps on the wheels without pressing on the brake rods. ©Acime Frame – OCTOBER 2020... -
Page 22: Pictogram Of The 10-Button Remote Control
Return to the patient Emergency position reception position (prolonged push) (prolonged push) The control is activated by simply pressing the button with your finger. And it is deactivated by simply releasing the finger on the button. ©Acime Frame – OCTOBER 2020... -
Page 23: Pre-Recorded Remote Control Positions
The cylinders reset when the maximum retract position is reached. This operation is to be carried out after any change in the electrical components of the wheelchair (cylinder, control box, remote control). ©Acime Frame – OCTOBER 2020... -
Page 24: 17-Button Remote Control Pictogram
(or reactivate it), press and hold the buttons for 5 seconds. The positions are the same as those described in the previous section. The 17-button remote control has 2 additional positions and a custom position registration function. ©Acime Frame – OCTOBER 2020... - Page 25 The flashing (3 X) of the led will indicate that the position is recorded. You can record up to 5 positions. To delete a position registered, you just have to register another one. Keep pressing the button until the chair movement stop. ©Acime Frame – OCTOBER 2020...
- Page 26 This device is to be used only in case of emergency. Be sure to hold the backrest before operating the emergency manual release lever. After use, make sure that the backrest is switched on again. ©Acime Frame – OCTOBER 2020...
-
Page 27: After Use
After use Acime Frame products are designed to be quickly and easily cleaned. a) Cleaning Before each cleaning, please unplug the mains plug from the network socket. When cleaning, be careful not to immerse the remote control and other electrical components. - Page 28 Pure alcohol and/or acetone (see page 28 Inks, persistent stains) They denature coatings and can make them brittle. Acime Frame cannot be held responsible for the use of these products. When cleaning, be careful not to submerge the remote control and other electrical components.
- Page 29 (especially if it is clear and plain). In case of tough stains, use bleach or alcohol diluted at 10% which will allow the reduction of the ring. Rinse with clean water. ©Acime Frame – OCTOBER 2020...
-
Page 30: Storage Instructions
It will be taken back either by our carrier or by us. After taking back products at the end of their life, Acime Frame can carry out two types of recycling depending on the condition of the products taken back. -
Page 31: Maintenance
Date when leaving the factory Product reference Factory and after-sales service contact details Acime Frame has a team of qualified technicians, dedicated to the realisation of the after-sales service. Our local technical team is at your disposal for: • Carry out troubleshooting •... -
Page 32: Product Control
▪ Testing of the electric actuators, the remote control on mains and battery. ▪ Checking the visible parts of the actuators. ▪ Checking the electric wires of the actuators, the remote control and the power cable. ©Acime Frame – OCTOBER 2020... - Page 33 We offer you to carry out the maintenance of your chairs. Several maintenance contracts are available, please do not hesitate to read about them in the dedicated section of this manual or by contacting us. Tel: +33.3.21.10.25.30 ©Acime Frame – OCTOBER 2020...
-
Page 34: Warranty Conditions
In any case our customers must justify the date of the beginning of use. Our guarantee automatically ceases at the end of this period. Our warranty ceases automatically if our client has not notified us of the alleged defect within twenty clear days from its discovery. ©Acime Frame – OCTOBER 2020... -
Page 35: Maintenance Log
Date Technician Type of intervention ©Acime Frame – OCTOBER 2020... -
Page 36: Notes
Notes ©Acime Frame – OCTOBER 2020... - Page 37 1, Avenue de l’Europe - 62720 RINXENT - FRANCE Tel.: +33.3.21.10.25.30 - Fax.: +33.3.21.10.85.90 – After-sales: +33.3.21.10.90.45 www.acimeframe.com - contact@acimeframe.com ©Acime Frame – OCTOBER 2020...
