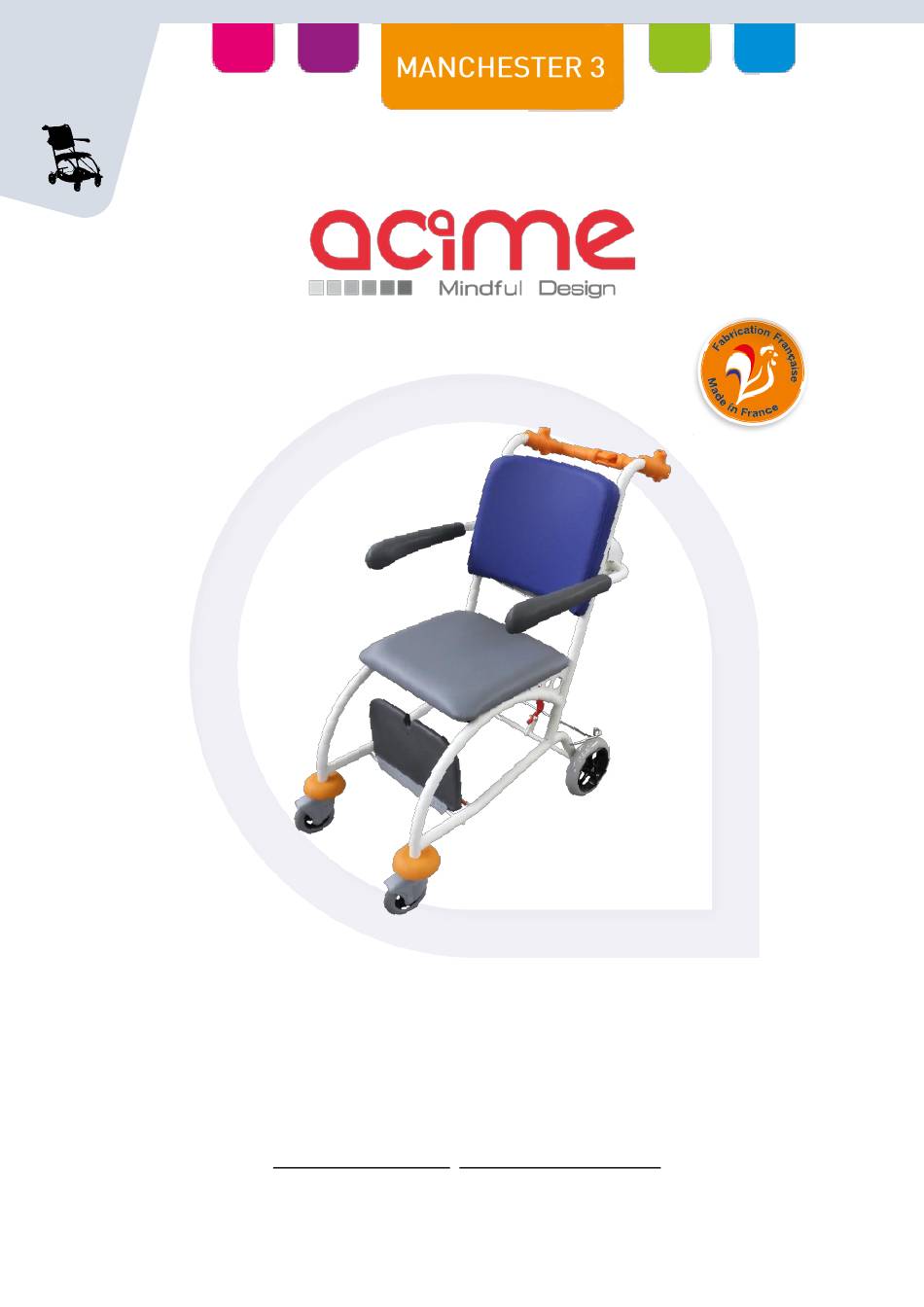

- Page 1 USER MANUAL 1, Avenue de l’Europe - 62720 RINXENT - FRANCE Tel.: +33.3.21.10.25.30 - Fax.: +33.3.21.10.85.90 – After-sales: +33.3.21.10.90.45 www.acimeframe.com - contact@acimeframe.com...
-
Page 2: Table Of Contents
Procedure for cleaning and disinfecting the product ..............18 Storage instructions........................21 Recycling of equipment ......................21 Maintenance ........................22 Spare parts..........................22 After-sales service: Acime Tech ....................22 Product control .......................... 23 Warranty conditions ........................24 Maintenance log ..........................25 Notes ..........................26... -
Page 3: General Points
Keep it preciously and keep it at the disposal of the users. Your patients will be able to benefit from all the possibilities offered by the Manchester 3 transfer chair. We hope that the Manchester 3 transfer chair will contribute to the quality and success of patient care. -
Page 4: Introduction For The Environment And Integration Of Staff With Disabilities
The rest of the waste is recovered either by our suppliers for treatment or by a specialised company. Since 2009, Acime Frame has implemented the charter of eco-citizen gestures in companies. Acime Frame pays particular attention to integrating staff with disabilities. -
Page 5: Before Use
The one-piece frame guarantees the robustness of the chair, which can accommodate a maximum load of 200 kg. The lifetime of "ACIME FRAME" products is 10 years, but this fact varies according to the use and maintenance of the product. - Page 6 • Gives greater mobility to the patient. • Allows a heavier person to sit down. • Access is possible from the side of the chair. Wooden back and seat upholstery and foam HR 35-40, vinyl cover M1. ©ACIME FRAME – OCTOBER 2020...
-
Page 7: Product Description
D - Fire retardant vinyl seat and backrest M1 E - Retractable armrests A - IV pole holders (IV pole optional) B - Retractable footboards C - 2 multidirectional wheels ø 125 mm D - Foot brake ©ACIME FRAME – OCTOBER 2020... -
Page 8: Options
Fully removable single IV pole in aluminium and PVC serum holder. Possibility to secure it with chain or screws. Height = 75 cm Thickness = 1.5 cm Resistance to the weight of the serum carrier = 4 kg Ref: 9001141 ©ACIME FRAME – OCTOBER 2020... - Page 9 This system is less secure than the key locking system. Length = 8.5 cm Width = 6 cm Thickness = 6 cm Ref: 9001143 Supplied with the coin The wall fixing chain and its plate (9001144) must be ordered separately. ©ACIME FRAME – OCTOBER 2020...
- Page 10 To ensure the solidity of this option, it is important to fix it to the wall using dowels. Chain length: 90 cm Mesh width: 8 mm Wall mounting: Length 10 cm x width 10 cm Ref : 9001144 ©ACIME FRAME – OCTOBER 2020...
- Page 11 An orange PVC end cap is added to prevent the risk of injury. Length: 74 mm Width: 31 mm Diameter: 6 mm Ref: 9001431 ©ACIME FRAME – OCTOBER 2020...
-
Page 12: Product's Signage
It is dangerous to sit on the armrests It is dangerous to sit on the footrest Beware of tipping over Fold down the armrests when the patient is seated. Check the efficiency of the braking system ©ACIME FRAME – OCTOBER 2020... -
Page 13: Technical Specifications
2 wheels Ø200mm at the rear Type of rear wheels Chair weight (empty) 30 kg Maximum permissible load 200 kg Type of braking Foot brake Frame type One-piece frame in epoxy painted steel Type of footrest Foldable polyurethane foot rest ©ACIME FRAME – OCTOBER 2020... -
Page 14: Safety Rules Before Use
▪ Please read this manual before use and keep it within the reach of everyday users. ▪ Acime Frame declines all responsibility if the precautions for use are not respected. The installation of armrests or any device reinforcing their function does not in any way exempt the patient from monitoring. -
Page 15: Use
▪ The armrests and footrest must be folded down before transferring. ▪ Always secure the patient before transferring (armrests and footrests folded down, if necessary use a support strap). The use of the armrests does not in any way exempt the patient from monitoring. ©ACIME FRAME – OCTOBER 2020... -
Page 16: Compliance With The Rules Of Use
2. Compliance with the rules of use Inappropriate use of the transfer chair and failure to follow the maintenance instructions can significantly reduce its longevity and releases the Acime Frame company from all responsibility. ▪ Intended use This medical device is intended for the transfer of adult patients weighing up to 200 kg, optimising their comfort and facilitating the work of the caregivers. -
Page 17: Moving And Braking
Dimensions : Overall length: 58 cm Chrome bar diameter: 0.8 cm Length red bar: 20 cm Use the brakes before sitting or lifting a patient. Always make sure the brakes are locked when doing so. ©ACIME FRAME – OCTOBER 2020... -
Page 18: Obstacle Clearance Tips
It is not recommended to cross the obstacle in reverse: risk of imbalance of the chair, lumbar shock for the patient, and musculoskeletal disorders for the nursing staff. ©ACIME FRAME – OCTOBER 2020... -
Page 19: After Use
• Pure alcohol and/or acetone (see § Inks, persistent stains page 20) They denature coatings and can make them brittle. Acime Frame cannot be held responsible for the use of these products. c) Cleaning When cleaning, it is important to check the cover for cuts, tears, punctures, cracks or pulled threads. - Page 20 Once a week: Once a week, it is advisable to clean the equipment thoroughly. When a stain appears, we advise you to intervene as soon as possible to prevent it from becoming indelible. ©ACIME FRAME – OCTOBER 2020...
- Page 21 (especially if it is clear and plain). In case of tough stains, use bleach or alcohol diluted at 10% which will allow the reduction of the ring. Rinse with clean water. ©ACIME FRAME – OCTOBER 2020...
-
Page 22: Storage Instructions
It will be taken back either by our carrier or by us. After taking back products at the end of their life, Acime Frame can carry out two types of recycling depending on the condition of the products taken back. -
Page 23: Maintenance
Product reference Factory and after-sales service contact details 2. After-sales service: Acime Tech Acime Frame has a team of qualified technicians, dedicated to the realisation of the after-sales service. Our local technical team is at your disposal for: • Carry out troubleshooting •... -
Page 24: Product Control
We offer you to carry out the maintenance of your chairs. Several maintenance contracts are available, please do not hesitate to read about them in the dedicated section of this manual or by contacting us. Tel: +33.3.21.10.25.30 ©ACIME FRAME – OCTOBER 2020... -
Page 25: Warranty Conditions
In any case our customers must justify the date of the beginning of use. Our guarantee automatically ceases at the end of this period. Our warranty ceases automatically if our client has not notified us of the alleged defect within twenty clear days from its discovery. ©ACIME FRAME – OCTOBER 2020... -
Page 26: Maintenance Log
Maintenance log Date Technician Type of intervention ©ACIME FRAME – OCTOBER 2020... -
Page 27: Notes
Notes ©ACIME FRAME – OCTOBER 2020... - Page 28 1, Avenue de l’Europe - 62720 RINXENT - FRANCE Tel.: +33.3.21.10.25.30 - Fax.: +33.3.21.10.85.90 – After-sales: +33.3.21.10.90.45 www.acimeframe.com - contact@acimeframe.com ©ACIME FRAME – OCTOBER 2020...
