DOTJET DJ-One Operation Manual

Hide thumbs Also See for DJ-One:

Advertisement

Quick Links

Download this manual
Controller operation manual
inkjet coder
1
Dotjet Inc.
www.everdotjet.com


Advertisement

loading
Need help?

Need help?

Do you have a question about the DJ-One and is the answer not in the manual?

Questions and answers

Related Manuals for DOTJET DJ-One

Summary of Contents for DOTJET DJ-One

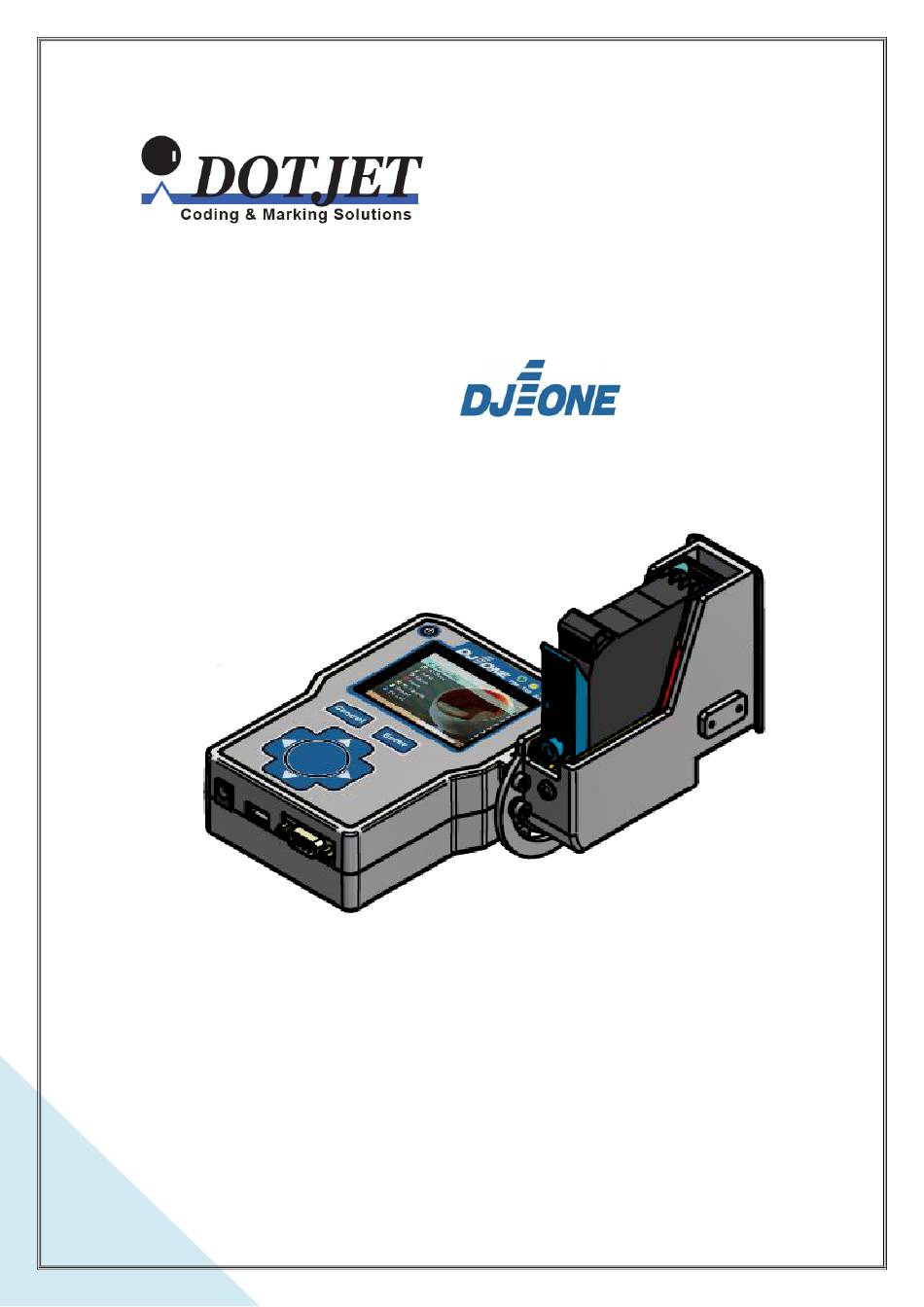

  • Page 1 Controller operation manual inkjet coder Dotjet Inc. www.everdotjet.com  ...
  • Page 2 Power On The screen displays the print message list as below. Press to move cursor up and down. press to confirm the message selection, enter to main page for next step Print, or press escapes to main age without change.  ...
  • Page 3 Icons Introduction _ Main Page 1. Print On/Off 2. Print setup 3. Message selection for printing 4. System setup 5. Reset print count Press to move cursor left and right.  ...
  • Page 4 1. Press to Start Print. Press again to Stop Print. 2. Print Setup Move cursor to the icon , press to enter setting up the print parameter. Press to move cursor up and down for item selection.  ...
  • Page 5 Press to change the condition Press and hold on the to adjust number up or down 2-1 Encoder. The encoder is recommended under the condition of the conveyor moving speed is unconstant, or the conveyor speed has to changed manually and frequently. Please Note: If the conveyor speed is not constant and the encoder is not installed, printing will be distorted, or not uniform, please see example bellow.
  • Page 6 If there is no encoder installed with the printer system, set at NO, or causes the printer can’t print. 2-2 Print Speed. The print speed setting directly relates to the conveyor moving speed, i.e the distance moved per second in millimeters ( mm/sec). 2-3 Print Delay Measure the distance (mm) between the print head and the photocell.
  • Page 7 2-5 Continue Count Set this to allocate how many prints are repeated. For example, the number is set at 005, now the print will repeat 5 times after the photocell has sensed the product. Please see this example below If the value of ‘Continue Count’ is set at 000. the print head will print once only when the photocell senses the product* 2-6 Continue Interval If ‘Continue Interval’...

  • Page 8: System Setting

    2-7. 600DPI Enable this setting will arise the print resolution to 600dpi, the printer default resolution is 300dpi. 2-8 Font Selection There are two character fonts allow to selecte for the print. The character fonts can choose in the PC software DotW_One, and download to the DJ1 via USB disk. Please refer to chapter Appendix A below on page 15.
  • Page 9 3-1. System setup a. Enable spitting This setting must integrate with Spit Count and Spit Interval below items, It is set in case the photocell has not sensed product for a while. To ensure the nozzle is clear for printing before a product is again sensed.
  • Page 10 c. Spitting Count To avoid poor quality prints after a long time break in printing ( ink can dry out in the nozzle), use “spit”. “Spit Count” is set for the print head nozzle to auto-spit a certain ink droplets during the print break.
  • Page 11 3-3. Data Upload Back-up print messages and parameters. Plug an USB stick into the DJ1 printer controller’s USB port, and press . All messages and parameters will upload to the USB stick automatically. These backed up messages can be re-edit by DotW_One software.
  • Page 12 b. Append Msg Selecting which appendant message( 1 or 3 ) needs to re-setup the counter, “0” represents there is no appendant counter in this print message. c. Counter1 Pressing to adjust the counter number of the 1 appendant message, the counter number is about to print.
  • Page 13 3-6. Nozzle Checking Press , the print head performs a self test to check the conditions of the ink cartridge orifices. (Printing quality checking). Move a paper card over the nozzle. An even, clear pattern should be seen. Press any key to stop print. 3-7.
  • Page 14 Pressing to move cursor up and down. Pressing numbers adjustment. Pressing once, all the setup done. 3-8. About Displaying the related information of the printer  ...
  • Page 15 Appendix A : Download new character font into the DJ1 printer. 1. Click the button for selecting a character fonts by ComeboBox.  ...
  • Page 16 2. Plug an USB stick into the PC. Click the button . The character fonts file DJ1.fnt is exporting to the USB stick. ※ Plug the USB stick in DJ1 printer. Operating the DJ1 to select the item Download Data which is under System Setup, then the DJ1 is checking the file DJ1.fnt existed in the USB stick and download it automatically.

This manual is also suitable for:

Dj1
