Dear Customer,
We thank you for your confidence in VEINOPLUS® stimulators.
VEINOPLUS® is a patented technology as a result of several years of Research & Development to
offer you a very effective yet comfortable and safe stimulation.
VEINOPLUS® V.I. is a Medical Device, according to the Medical Device Directive 93/42/EEC, that can
relieve your pain and help you in your daily life.
Please read carefully this Instruction Manual before using the device.
Ad Rem Technology and its distributors decline any responsibility for any use of the VEINOPLUS® V.I.
that does not comply with this Instruction Manual.
VEINOPLUS® V.I. electrically stimulates the muscles to cause their contractions. VEINOPLUS® V.I.
is more effective on the calf muscle pump ("the Second Heart®") but it can be used on other
peripheral muscular pumps. The muscle contractions compress deep and superficial veins, as well as
lymphatic vessels and improve venous blood and lymph flows.
VEINOPLUS® V.I. is indicated for:
Increase of blood circulation,
n
Improvement of venous return,
n
Reduction of venous stasis,
n
Treatment of symptoms of Venous Insufficiency or Post-Thrombotic Syndrome,
n
Reduction of pain sensations in legs,
n
Reduction of leg swelling (edema),
n
Improvement in the healing of venous ulcers,
n
Decrease of restless legs and night cramps.
n
VEINOPLUS® V.I. is also recommended for use in situations where there is a risk to the venous system,
in order to improve or facilitate venous return such as:
Presence of varicose veins,
n
Prolonged sitting or standing (office, long haul travel, standing jobs...),
n
Lack of physical activity (walking), leg immobilisation,
n
Excessive weight or obesity,
n
Pregnancy,
n
Family history of Venous Insufficiency
n
Results are not guaranteed, and can vary from person to person. If symptoms persist, consult your
doctor.

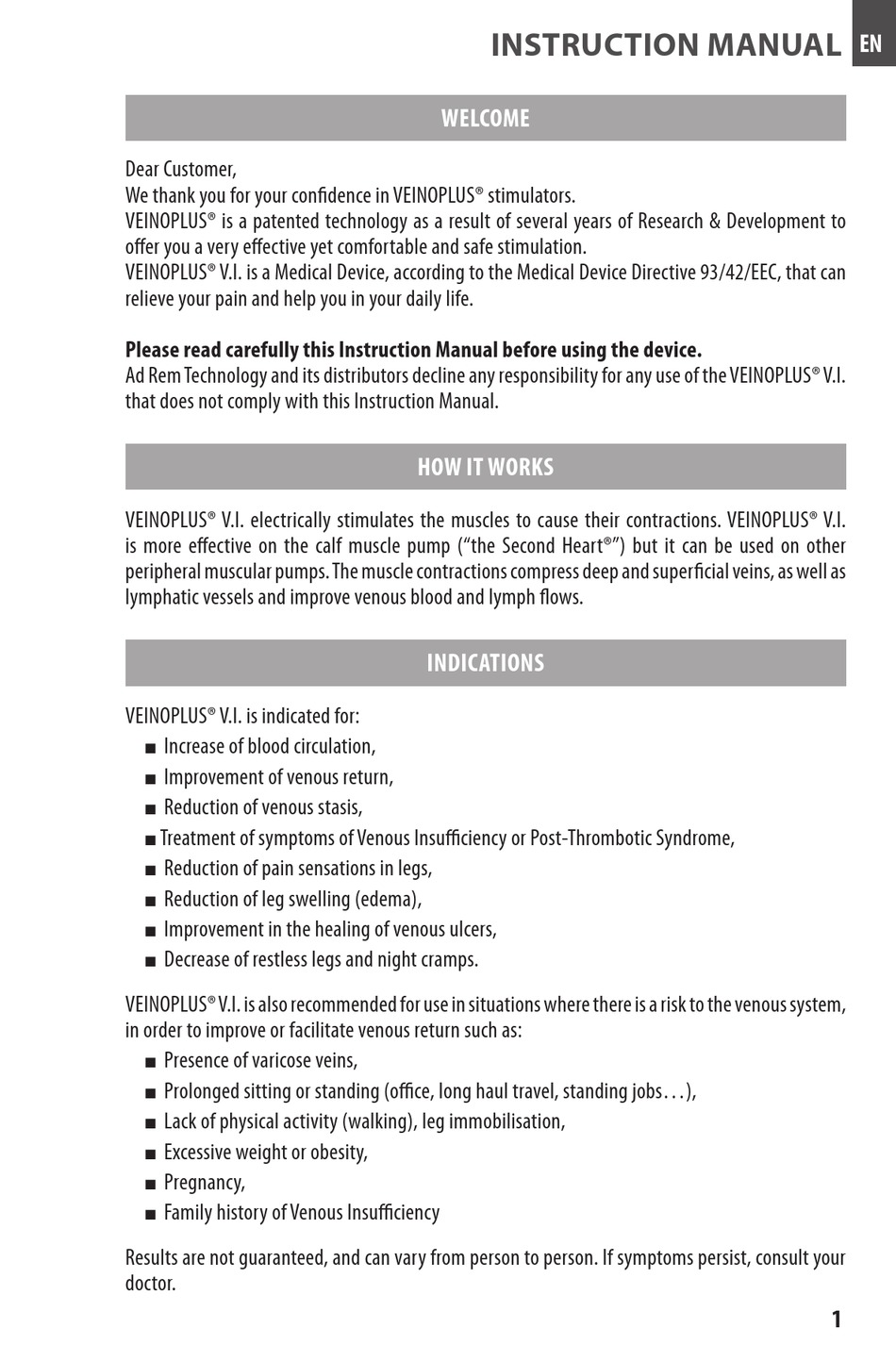

InstructIon manual
WELCOME
HOW IT WORKS
INDICATIONS
EN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V.I. and is the answer not in the manual?

Questions and answers

Summary of Contents for Veinoplus V.I.

  • Page 1 Improvement in the healing of venous ulcers, Decrease of restless legs and night cramps. VEINOPLUS® V.I. is also recommended for use in situations where there is a risk to the venous system, in order to improve or facilitate venous return such as: Presence of varicose veins, Prolonged sitting or standing (office, long haul travel, standing jobs…),...
  • Page 2: Contra-Indications And Warnings

    For recommended treatment modalities based upon symptoms in the legs, please refer to the table on next page. The more you use VEINOPLUS® V.I., the more effective it becomes. There is no risk of overuse. Each treatment lasts 30 minutes and the device stops automatically. You can have several sessions...
  • Page 3 RECOMMENDED TREATMENT MODALITIES* bASED UPON SyMPTOMS n 1 session = 1 treatment = 30 mn Sustaining Most Lead-in Treatment Treatment frequent Comments (minimum number (minimum number of sessions) symptoms of sessions) «Heavy» or Aching 1 session when Stimulate preferably at 1 session/day Legs there’s pain...
  • Page 4 11 - VEINOPLUS® V.I. will switch OFF automatically after 30 minutes of treatment but you can stop the treatment at any time by pushing ON/OFF button. 12 - Always disconnect the electrodes after the device has been turned OFF.
  • Page 5 Electrodes: The VEINOPLUS® V.I. produces electrical impulses and delivers energy to the surface of the skin by means of a pair of bio-compatible electrodes (VEINOPLUS® PACK). For effective and safe treatment, use only VEINOPLUS® PACK electrodes in their sealed original package.
  • Page 6: Technical Description

    VEINOPLUS® V.I. is below 0.05 W. Output parameters of VEINOPLUS® V.I.: The voltage waveform of the VEINOPLUS® V.I. is rectangular monopolar and balanced with ZERO net d.c. component. The time duration of output impulses ranges from 25 to 240 microseconds.
  • Page 7: International Warranty

    VEINOPLUS® V.I. is guaranteed for 12 months from the date of the purchase against any manu- facturing defect, except for the battery, glass breakage, normal wear and tear of electrodes and cable, as well as any damage due to abusive handling or removing parts of VEINOPLUS® V.I. by unauthorised third parties.
  • Page 8 The device has one applied part type BF (electrodes) Adjustments of intensity buttons ON/OFF switch button This symbol means that VEINOPLUS® is in conformity with the requirements of the Medical Device Directive 93/42/EEC, 0535 is the number of notified body.
  • Page 9: Návod K Použití

    života. Před zahájením používání si pečlivě přečtěte, prosím, tento Návod k použití. Ad Rem Technology and its distributors decline any responsibility for any use of the VEINOPLUS® V.I. that does not comply with this Instruction Manual.
  • Page 10 KDy POUŽÍT VEINOPLUS® V.I.? Denně, převážně na konci dne nebo kdykoliv při otocích nebo bolesti nohou. VEINOPLUS® V.I. se zvlášť doporučuje používat během dlouhého letu a týden po něm. Varianty způsobu použití podle druhu symptomů jsou uvedeny v tabulce na následující stránce.
  • Page 11 DOPORUČENÉ MODALITy* LÉČby PODLE SyMPTOMŮ n 1 aplikace = 1 léčba = 30 min Přetrvávající Zahájení léčby Nejčastější léčba Komentář (minimální počet symptomy (minimální počet aplikací) aplikací) «Těžké» nebo Stimulujte, pokud 1 aplikace/den 1 aplikace při bolesti bolavé nohy možno na konci dne 2 aplikace za večer, 1 aplikace před 1 aplikace před...
  • Page 12 Čím vyšší intenzita, tím lepší jsou výsledky léčení s VEINOPLUS® V.I. Pokud jsou kontrakce příliš silné a/nebo nepohodlné, můžete snížit intenzitu krátkým stiskem tlačítka 11 - VEINOPLUS® V.I. se automaticky vypne po 30 minutách léčby, ale můžete léčbu kdykoliv zastavit stiskem tlačítka ON/OFF.
  • Page 13 VEINOPLUS® V.I. vyrábí elektrické impulzy a dodává energii do povrchu kůže prostřednictvím páru biokompatibilních elektrod (VEINOPLUS® PACK). Pro efektivní a bezpečné užívání používejte pouze elektrody VEINOPLUS® PACK v jejich původním a zataveném balení. Je možné použít elektrody vícekrát. Doporučuje se, aby z hygienických důvodů...
  • Page 14: Technický Popis

    VEINOPLUS® V.I. je baterií napájený (9 V baterie) elektrický svalový stimulátor, který dodává specifické, nízkofrekvenční napěťové stimulační impulzy. Zařízení je určeno k trvalému používání a stupeň ochrany krytím proti vniknutí vody je IPX0. Příkon je nižší než 0.5 W a výstup VEINOPLUS® V.I. je nižší než 0.05 W.
  • Page 15 MEZINÁRODNÍ ZÁRUKA VEINOPLUS® V.I. je vyráběn podle vysokých standardů kvality. Záruční doba na přístroj VEINOPLUS® V.I. 12 měsíců od data nákupu. Týká se všech možných výrobních vad. Záruka se nevztahuje na vady baterie, rozbití skla displeje, normální opotřebení nebo roztržení elektrod a poškození kabelu, stejně tak na závady způsobené nevhodným nebo nepřiměřeným zacházením s přístrojem nebo odstraňováním částí...
  • Page 16 Přečtěte si instrukce před použitím přístrje Přístroj má jednu aplikovanou část typu BF (elektrody) Tlačítka pro nastavení intenzity ON/OFF tlačítko zapnutí/vypnutí Tento symbol znamená, že VEINOPLUS® je ve shodě s požadavky direktivy Medical Device Directive 93/42/EEC, 0535 je číslo notifikované organizace.
  • Page 17 1 : guidance and manufacturer’s declaration – electromagnetic emissions The VEINOPLUS® 2.1 is suitable for use in the specified electromagnetic environment. The customer and/or the user of the equipment should assure that it is used in an electromagnetic environment as described below.
  • Page 18 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the VEINOPLUS® 2.1 is used exceeds the applicable RF compliance level above, the VEINOPLUS® 2.1 should be observed to verify normal operation.
  • Page 19 VEInoPlus® 2.1 The VEINOPLUS® 2.1 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The cus- tomer or the user of the VEINOPLUS® 2.1 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the VEINOPLUS®...
  • Page 20 © Copyright 2012 Paris - Ad Rem Technology Distribution, whether in whole or in part, in any manner whatsoever and by any means whatsoever (printed or electronic), unless approved in advance and in writing by AD REM TECHNOLOGY, is prohibited and deemed to be infringement of intellectual property rights which can be prosecuted under articles 335-2 et L.
