PW-GT20 Server
User Manual
Revision 2.0
Revision Date: 3.22.2022

Advertisement

Table of Contents
loading

Related Manuals for ACE COMPUTERS PW-GT20

Summary of Contents for ACE COMPUTERS PW-GT20

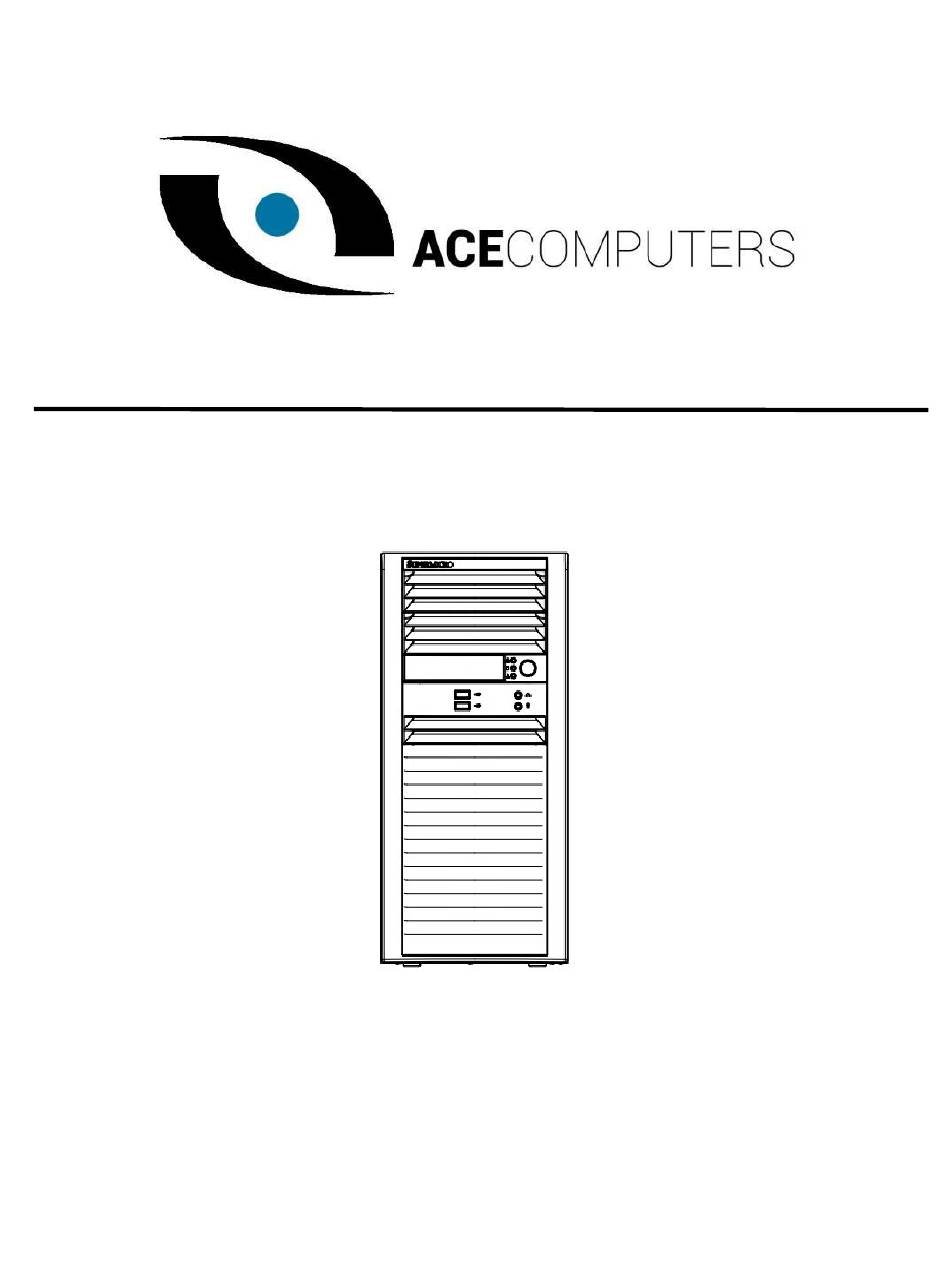

  • Page 1 PW-GT20 Server User Manual Revision 2.0 Revision Date: 3.22.2022...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our website at www.acecomputers.com. Ace Computers reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Ace Computers and/ or its licensors, and is supplied only under a license.
  • Page 3 If you have any questions regarding this manual or server system, please contact our support team through Ace Computers Support page https://acecomputers.com/support/ .This manual may be periodically updated without notice. Please check the Ace Computers website for possible updates to the manual revision level. ACE088 Page 3 of 32 Rev Date: 3.22.2022...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents Chapter 1 - European Union (EU) Ecodesign Requirements ......Error! Bookmark not defined. Chapter 2 - Illustrated System Disassembly Instructions ................6 Data Storage Devices ......................... 7 Memory ............................. 8 Processor ............................9 Motherboard ........................... 11 Expansion Card/Graphics Card ......................
  • Page 5 Chapter 1 – Testing/Compatibility Information 1. Operating Condition Class The operating condition class is A2. Based on the results of testing, it was determined that as long as the server functions inside the Allowable Range as noted for “Operating Condition A2” (noted in the table below), there will be no material affect to the system and will continue to operate as intended for the entire lifecycle of the product.

  • Page 6: Chapter 2 - Illustrated System Disassembly Instructions

    Chapter 2 - Illustrated System Disassembly Instructions Chapter 8 is intended to provide guidance to recyclers on the presence of materials and components at the product/family level, per Article 15 of the EU WEEE Directive 2012/19/EU. The provided information should also help direct recyclers to proper methods for removing parts and general product disassembly instructions.

  • Page 7: Data Storage Devices

    2. Data Storage Devices Location: Servers are best known for their storage and interchangeability, within this tower model of server there’s internal and external storage capacity. The internal storage is noted in the diagram below. Some models may also include interchangeable storage that can be accessed from the front panel.

  • Page 8: Memory

    Memory Location: Memory modules are found on the motherboard of the server, the number of memory modules may vary by unit configuration but are generally found in pairs of 2. Type and number of fastenings: Two (2) latches per memory module. Tools required: None.

  • Page 9: Processor

    4. Processor Location: The processor is found on the motherboard of the server. As shown in the photo below, the processor is located under the heat sink. The heatsink can look more like a fin type thermal transfer device, or a rotating fan with a thermal transfer plate. There can be more than one processor per motherboard, generally between 1- 4.
  • Page 10 ACE089 Page 10 of 32 Rev Date: 10.01.2021...

  • Page 11: Motherboard

    5. Motherboard Location: The motherboard is the largest PCB in the server configuration, it is generally centrally located within the unit. Standard practice would be to remove all the components, peripherals, and add-ons from the motherboard before removal of the motherboard for processing. Type and number of fastenings: 14 Phillips screws.

  • Page 12: Expansion Card/Graphics Card

    6. Expansion Card/Graphics Card Location: Certain configurations of server may include one or more graphics cards/GPUs, these are connected to the motherboard in an perpendicular orientation and are fastened to the chassis for support. Type and number of fastenings: Six (6) Phillips screws. Tools required: Screwdriver with PH2 bit.

  • Page 13: Power Supply Module

    7. Power Supply Module Location: The power supply module is located on the top left-hand corner connected directly to the chassis. Type and number of fastenings: Four Phillips screws. Tools required: Screwdriver with PH2 bit. Procedure: Unplug the power cord from the power supply. Push the release tab on the back of the power supply module to the side and pull the module straight out.

  • Page 14: Side Panel

    8. Side Panel Location: There are two side panels and depending on configuration, may be attached by interference fit, or thumb screws, or regular screws. Type and number of fastenings: May vary from none up to five in total. Tools required: None. Procedure: If there are screws, remove the screws and apply medium pressure and slide directly back to remove.

  • Page 15: Batteries

    9. Batteries Location: The battery is located on the motherboard, see illustration below. Type and number of fastenings: One (1) latch. Tools required: None. Procedure: Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.

  • Page 16: Chassis

    Chassis Front Cover Location: The Chassis front cover is located on the front of the server system. Depending on the configuration, there may be two plastic components. One large cover and one small covering expandable drive bay options. Unless the drive bay options are utilized, then there would only be one cover.
  • Page 17 ACE089 Page 17 of 32 Rev Date: 10.01.2021...

  • Page 18: Fans

    Fans Location: Most servers are equipped with a number of fans, this configuration includes no less than 2 fans. One fan is located directly below the power supply in the rear of the chassis. The second is located in a position to cool the hard drives. Additional fans may be added for different configurations.

  • Page 19: External Power Cable

    External Power Cable Location: To power the server a power cable is required. The cable may be separate or attached via a server rack mount power delivery system. The external power cable may be dual ended with an outlet and inlet of the same plug configuration type or one end may be a plug type connection.

  • Page 20: Chapter 3 - Installation, Maintenance And Replacement Instructions

    Chapter 3 – Installation, Maintenance and Replacement Instructions This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that the power first be removed from the system.

  • Page 21: Accessing The System

    Accessing the System The chassis has two removable side covers, allowing easy access to the chassis interior. Removing the Side Cover Begin by removing power from the system as described in Section 3.1. 1. Remove the two screws securing the left side cover to the chassis. 2.

  • Page 22: Motherboard Components

    Motherboard Components Processor and Heatsink Installation The processor (CPU) and heatsink should be assembled together first to form the processor heatsink module (PHM), and then install the PHM into the CPU socket. Notes:  All power should be off before installing the processors. ...
  • Page 23 Assembling the Processor Package Attach the processor to the thin processor clip to create the processor package. 1. On the top corner of the CPU, locate pin 1 (A), marked by a triangle. Also, locate notch B and notch C on the CPU as shown below. 2.
  • Page 24 Assembling the Processor Heatsink Module (PHM) After creating the processor package assembly, mount it onto the heatsink to create the processor heatsink module (PHM). 1. On the heatsink label, locate “1” and the corner next to it. Turn the heatsink upside down with the thermal grease side facing up, keeping track of the “1”...
  • Page 25 Removing the Dust Cover from the CPU Socket Remove the dust cover from the CPU socket, exposing the socket pins as shown below. Caution: Do not touch the socket pins. ACE089 Page 25 of 32 Rev Date: 10.01.2021...
  • Page 26 Installing the Processor Heatsink Module (PHM) 1. Locate the triangle (pin 1) on the CPU socket. Also locate the pin 1 corner of the PHM that is closest to “1” on the heatsink label. To confirm, look at the underside of the PHM and note the hollow triangle in the processor clip and printed triangle on the CPU located next to a screw at the corner.

  • Page 27: Memory (Replacement/Installation)

    Memory (Replacement/Installation) Type and number of fastenings: Two (2) latches per memory module. Tools required: None. Procedure: 1. Once you have followed the entire disassembly instructions under the Memory Disassembly Section (Chapter 2) above, unpack the new memory. 2. Ensure the notches on both sides line up with the release tabs, apply light pressure and push down to secure the memory notches into the release tabs (outlined below).

  • Page 28: Data Storage Devices (Replacement/Installation)

    Data Storage Devices (Replacement/Installation) Type and number of fastenings: HDD = One (1) latch and four (6) Phillips screws, SSD = (1) Phillips screw. Tools required: Screwdriver with PH2 bit. Procedure: 1. Once you have followed the entire disassembly instructions under Data Storage Devices Disassembly (Chapter 2) above, unpack the new HDD or SSD.

  • Page 29: Fans (Replacement/Installation)

    Fans (Replacement/Installation) Type and number of fastenings: One (1) fan header per fan. Tools required: None. Procedure: Rear Exhaust Fan: Insert the four rubber pins into the four mounting holes surrounding the fan grill on the rear of the chassis. Pull the rubber pins through the mounting holes of the fan to secure the fan to the chassis.

  • Page 30: Power Supply (Replacement/Installation)

    Power Supply (Replacement/Installation) Type and number of fastenings: Four Phillips screws. Tools required: Screwdriver with PH2 bit. Procedure: Replace the failed power supply with an identical power supply model. Secure the new power supply using the four Phillips screws. Plug the AC power cord back into the module and power-up the system.

  • Page 31: Expansion Card/Graphics Card (Replacement/Installation)

    Expansion Card/Graphics Card (Replacement/Installation) Type and number of fastenings: Six (6) Phillips screws. Tools required: Screwdriver with PH2 bit. Procedure: Once you have followed the entire disassembly instruction sunder the Expansion Card/Graphics Card Section (Chapter 2) above, unpack the new Expansion Card or Graphics Card. Remove the Phillips screws.

  • Page 32: Chapter 4 - Product Take-Back, End-Of-Life Processing, And E-Waste Program

    Computers Team Member will reach out to further assist with your technical questions. If it is determined that the best course of action is an inhouse repair at Ace Computers, the service technician will help facilitate the process of returning the server for repair.
