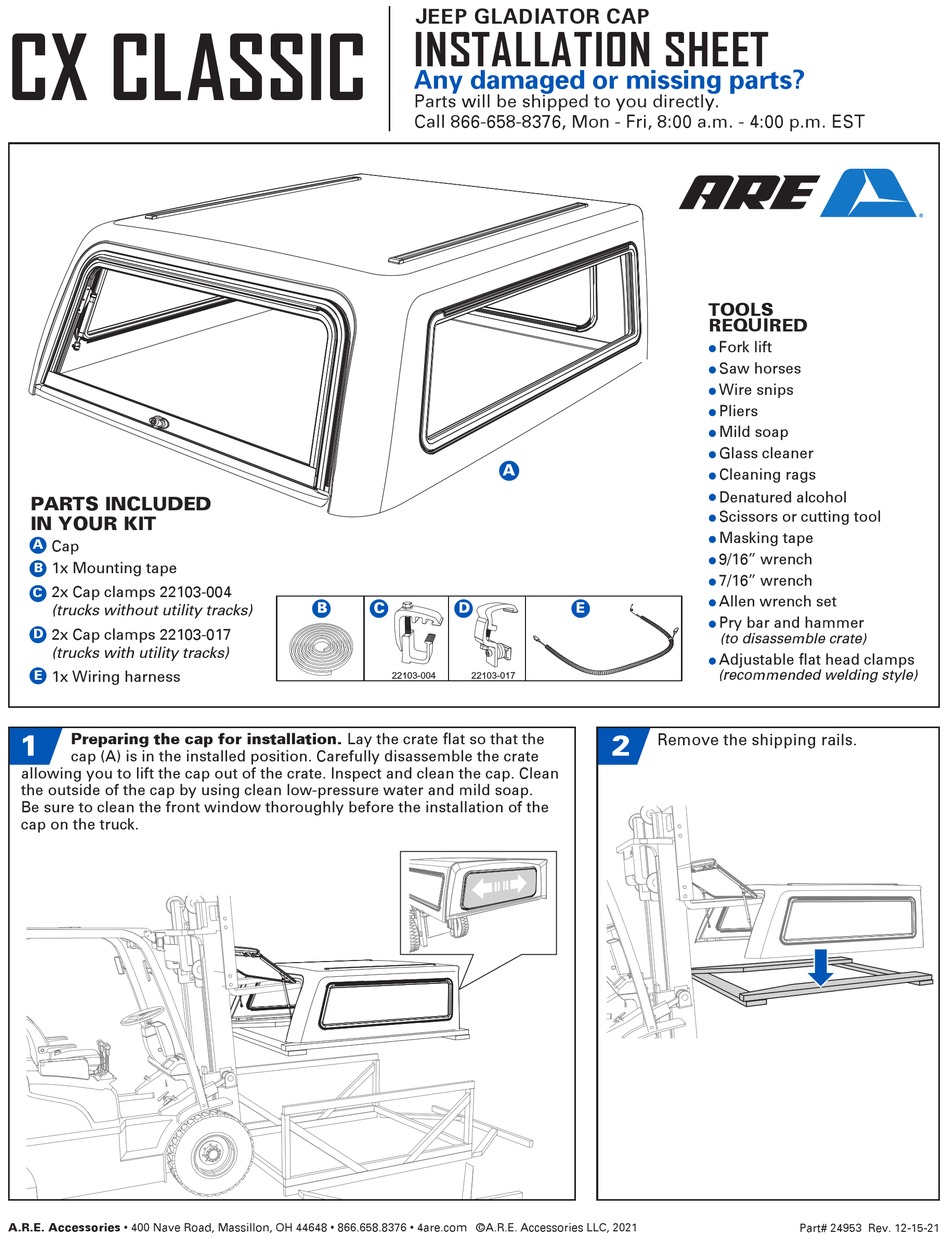

CX CLASSIC
PARTS INCLUDED
IN YOUR KIT
A
Cap
1x Mounting tape
B
2x Cap clamps 22103-004
C
(trucks without utility tracks)
2x Cap clamps 22103-017
D
(trucks with utility tracks)
E
1x Wiring harness
1
Preparing the cap for installation. Lay the crate flat so that the
cap (A) is in the installed position. Carefully disassemble the crate
allowing you to lift the cap out of the crate. Inspect and clean the cap. Clean
the outside of the cap by using clean low-pressure water and mild soap.
Be sure to clean the front window thoroughly before the installation of the
cap on the truck.
A.R.E. Accessories • 400 Nave Road, Massillon, OH 44648 • 866.658.8376 • 4are.com © A.R.E. Accessories LLC, 2021
JEEP GLADIATOR CAP
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 866-658-8376, Mon - Fri, 8:00 a.m. - 4:00 p.m. EST
B
C
D
22103-004
22103-017
A
E
2
Remove the shipping rails.
TOOLS
REQUIRED
Fork lift
l
Saw horses
l
Wire snips
l
Pliers
l
Mild soap
l
Glass cleaner
l
Cleaning rags
l
Denatured alcohol
l
Scissors or cutting tool
l
Masking tape
l
9/16" wrench
l
7/16" wrench
l
Allen wrench set
l
Pry bar and hammer
l
(to disassemble crate)
Adjustable flat head clamps
l
(recommended welding style)
Part# 24953 Rev. 12-15-21
