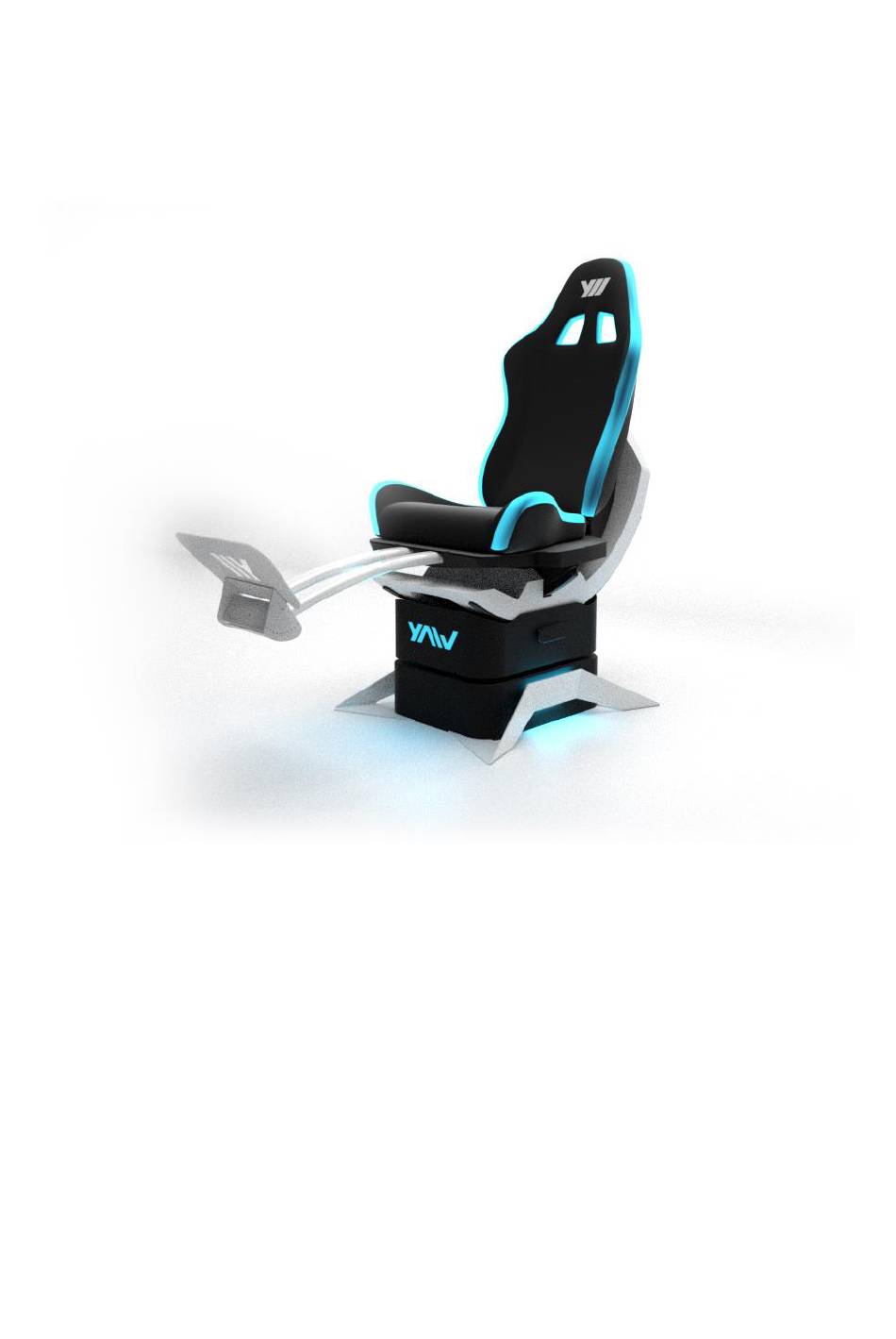

- Page 1 Yaw2 assembly guide and general help...
- Page 2 rotation platform base unit design legs pitch platform roll platform side rails seat foot holder footrest plate seat holder slider large gaming plate plate mounts plate holders metal sheet + 2 x M620 screws counter weight holder 3 x M6x10 screws 4 x M6x16 screws 12 x M6x20 screws After opening the package check all items were included.
-
Page 3: Tools Needed
Tools needed: Electric screwdriver / screwdriver + M6 screwdriver bit + screwdriver extension... - Page 4 Yaw2 assembly Written guide Design Leg Assembly If you have a 3DOF simulator, then Platform for this step, but if you have the 2DOF version, use the Base Unit instead of the Rotation Platform here. Step 1.: Mounting the design legs on the Rotation Platform Turn the Rotation Platform upside down (if you have built in be a flat bottom).
- Page 5 Rotation Platform and Base Unit assembly If you have a 2DOF version, you can skip this step. Step 3.: Place the Base Unit on the Rotation Platform On top of the Rotation Platform there are four mechanical adapters, which connect the Base Unit to the Rotation Platform. Carefully, place the Base Unit on the Rotation Platform, paying aligned before tightening the screws.
- Page 6 III. Base Unit and Pitch Platform assembly Step 5.: Fold out the Flat Cable from the Base Unit The Flat Cable is folded inside the Base Unit. It is fixed with a tape that has your local power supply written on it (either 110V or 220V). Remove the tape and fold out the Flat Cable and leave it hanging outside the Base Unit for now.
- Page 7 special attention to placing the rails in between the fixing casters. Also make sure that the Pitch Platform is not sitting on the flat cable. Step 8.: Activate the Fixing Casters of the Base Unit sticking out on the front and the back of the Base Unit after you loosened the fixing casters.
- Page 8 IV. Pitch and Roll Platform assembly Step 9.: Align the Roll Platform using the casters (pay attention to the integrity of the cables) Check where the cogwheels are on the Roll Platform and where they are inside of the Pitch Platform. Slide the Roll Platform into the Pitch Platform from the side.
- Page 9 V. Seat, Footholder and Footrest assembly Step 10.: Assemble the Footholder with the seat Turn the seat upside down. Loosen the screws of the seat where the Footholder will be slid into. Slide the Footholder into the retainer on the bottom of the seat. Push it through well over the top (this is how you can adjust the length of the Footholder).
- Page 10 VI. Seat assembly with Pitch and Roll Step 12.: Screw the Counterweight Holder in On the top of the Seat counterweight. In the middle of the -drilled hole. Screw in the counterweight holder there. Step 13.: Fit the seat to the Pitch Platform When placing the seat on top the already assembled parts, start with attaching the top of the seat to the Pitch Platform.
- Page 11 After fitting it to the Pitch Platform it should be easy to fit it in the Roll Platform. Just lower the seat and it will align perfectly. Step 15.: Fasten the seat to the Pitch Platform with screws Fasten the seat to the Pitch Platform with 3 x M6X10 cylindrical head screws around the point where you attached the two parts.
- Page 12 VII. Chair Holder Slider assembly with Chair Step 17.: Identify the front of the Chair Holder Slider If you ordered the Yaw VR chair, the screws will be already in it. package, therefore you can skip Step 18. Step 18.: Remove the screws from the bottom of the chair along the Chair Holder Slider.
- Page 13 Step 20.: Attach the chair to the seat Fit the chair with the now attached holder slider on the seat. On both sides the chair holder slider has 3 anchor points which must fit perfectly. Step 21.: Fasten the Chair Holder Slider to the seat Screw in the one corresponding screw on the front of the Chair Holder Slider.
- Page 14 Step 28.: Place the metal sheet that clamps the flat cable Step 29.: Tighten the screws firmly on the metal sheet Step 30.: Close the panel and fasten with screws , now you can try your new Yaw2! Have fun! :)
