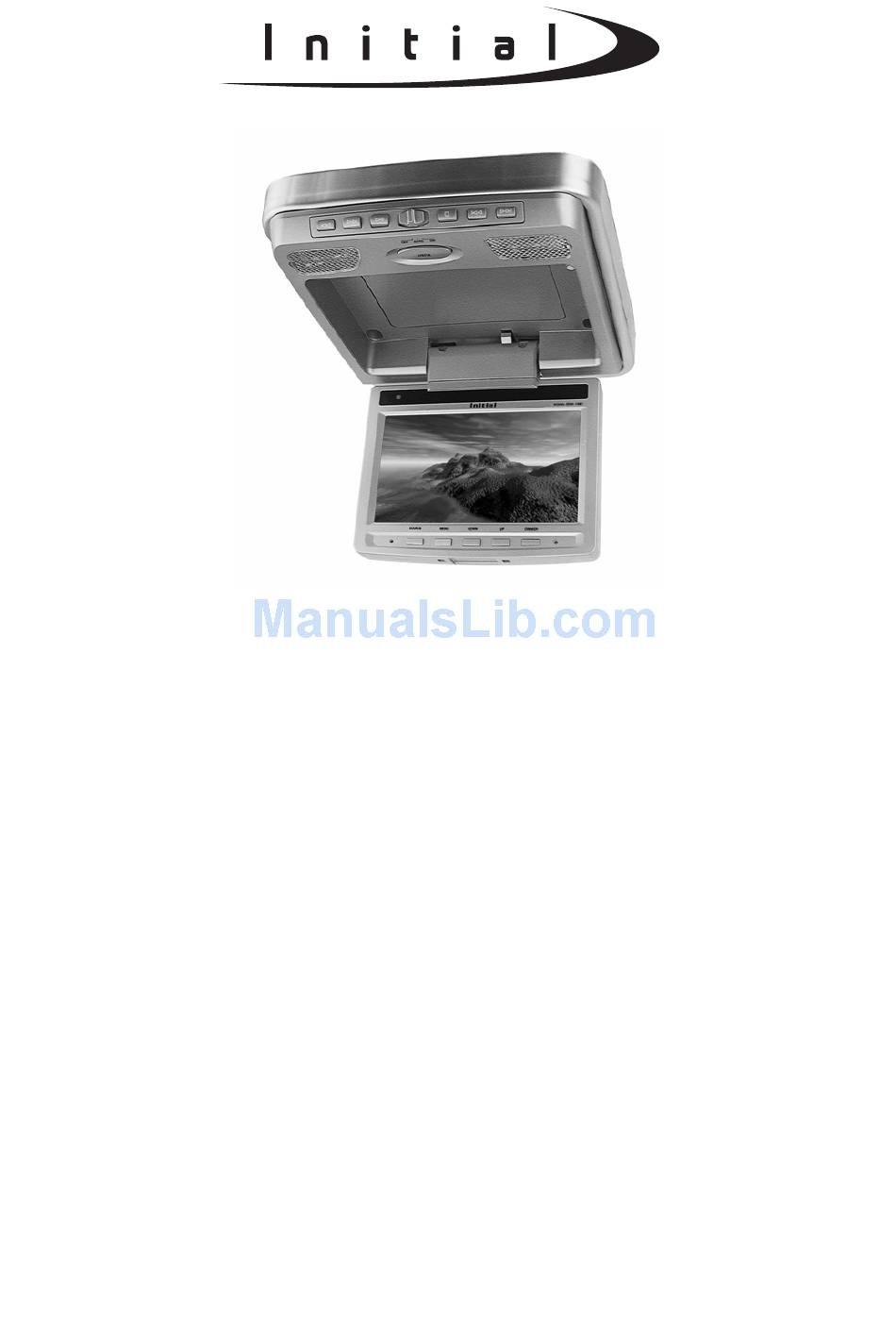

- Page 1 USER’S GUIDE IDM-1081 8 Inch Flipdown Wide Digital LCD Monitor...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction... 3 Installation ... 4 Operation ... 7 Troubleshooting ... 10 Specifications ... 11... -
Page 3: Introduction
Remote control AAA batteries VEHICLE INSTALLATION Warning! The product must be installed by a certified Initial dealer for the warranty coverage to be valid. The user waives warranty coverage if the product is moved to another vehicle. Where to install Before installing the monitor, please check your local traffic rules and regulations. - Page 4 Do not install the monitor where: • It will obstruct the driver’s view when the monitor is in either the open or closed position. • It will obstruct the operation of the airbag system. • It will obstruct the operation of the vehicle, especially the steering wheel, shift lever, or brake pedal.
- Page 5 • Use of control adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure in models with built in DVD players Monitor Power connections 1. First connect the black (GROUND) lead to a metal surface on the car.
- Page 6 Wire color chart Black- Ground Red- Ignition Yellow- Constant + 12 volts Blue-Positive door dome light trigger White- Negative door dome light trigger Audio and Video Input connections 1. Connect the monitor’s power supply cords correctly, according to the connections diagram above. 2.
-
Page 7: Operation
OPERATION Precautions • Installion of this monitor requires technical expertise. A qualified technician or car audio installation specialist should install the monitor. • Before installation, be sure to turn the ignition key switch to the OFF position or take the key out. Whenever possible it is suggested the battery negative terminal be disconnected. - Page 8 Remote control NOTE: Please make sure the slide switch is set to LCD position. OPERATION GUIDE TFT Adjustment Color • Press the SETUP or MENU button to select Color adjustment and press UP/DOWN or –ADJUST+ button until moderate color is available.
- Page 9 Wireless headphone Channel selection • Press the SETUP or MENU button to select FM FREQ adjustment and press UP/DOWN or –ADJUST+ button to select an FM Frequency you want. Monitor Aspect ratio • Press the SETUP or MENU button to select D.MODE adjustment and press UP/DOWN or –ADJUST+ button to select a Display Mode you want.
-
Page 10: Troubleshooting
TROUBLESHOOTING If you experience the following problems while using the unit, this troubleshooting guide can help you. PROBLEM POSSIBLE CAUSE The Unit will not turn on Ignition key is off No video signal The fuse has blown. Installer The power input leads have not been connected properly. -
Page 11: Specifications
FEATURES & SPECIFICATIONS Specifications are subject to change without notice. Monitor picture size…………………………………..……………… 8 inches wide Monitor Aspect Ratio ……………………………………………………………9/16 Monitor Resolution ………………………………………………………..480 X 234 Color system……………………………………………..………………….… NTSC External video input level……………………….…………………………..…1Vp-p External audio input level……………………….………….…………………..…2V Transmission Frequencies …...87.7, 87.9, 88.1, 88.3, 88.5, 88.7, & 88.9 MHz Operating voltage……………………………………………………….…...
