- Page 1 B A T H O L O G Y r e d i s c o v e r b a t h i n g A t m o s p h e r i c 330 I n - S h o w e r V e n t i l a t i o n I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l...
- Page 2 A t m o s p h e r i c 330 B A T H O L O G Y Components Spec Install Page Page Fan Kit 190 CFM 6 - 8 1” Screws Exhaust Fan, 6” Mounting Bracket 7/16”...
-
Page 3: Vent Options
A t m o s p h e r i c 330 B A T H O L O G Y Components Continued Optional Slide Speed Control Mounting Screws Slide Speed 11 - 13 Control Wire Nuts Vent Options Roof Cap Roof Cap, 6”... - Page 4 A t m o s p h e r i c 330 B A T H O L O G Y Typical Installation - Exterior Roof Important: It is recommended that all electrical equipment be tested prior to installation. Page ID Product Exterior Roof 6 - 8...
- Page 5 A t m o s p h e r i c 330 B A T H O L O G Y Typical Installation - Exterior Wall Important: It is recommended that all electrical equipment be tested prior to installation. Page ID Product Exterior Wall 6 - 8...
-
Page 6: Installation

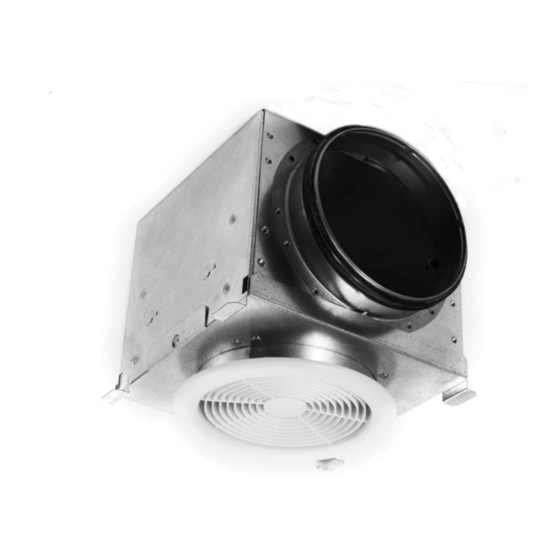

A t m o s p h e r i c 330 B A T H O L O G Y Fan Specifications and Installation Specifications Installation Stud / Ceiling Joist 190 CFM Fan 1” Screw Operating Voltage: 120VAC Power Consumption: 60W Nominal Amperage: 0.52 Amps CFM: @ .20”... - Page 7 A t m o s p h e r i c 330 B A T H O L O G Y Fan Installation Installation Considerations Warning: For your safety, read and understand Warning: Check voltage at the fan to see if it instructions completely before starting.
-
Page 8: Fan Installation
A t m o s p h e r i c 330 B A T H O L O G Y Fan Installation Using the 1” wood screws (3) provided, attach Secure the romex connector. Secure the the fan mounting bracket (2) to a support beam incoming supply with the romex connector. -
Page 9: Installation Considerations
A t m o s p h e r i c 330 B A T H O L O G Y Housing Specifications and Installation Specifications Installation Mounting Directly to Joist Expansion Vent Expansion Vent Housing Hanger Bars Duct Connection: 6” Expansion Vent Housing Position Locator Tabs... - Page 10 A t m o s p h e r i c 330 B A T H O L O G Y Expansion Ventilation Installation Installation Based on the bathroom layout and fixtures, plan the location of the expansion vent grilles (2) for the most effective ventilation.
- Page 11 A t m o s p h e r i c 330 B A T H O L O G Y Control Specifications and Installation Specifications Installation Considerations Warning: For your safety, read and understand Electronic Time Control instructions completely before starting. Before wiring to power supply, turn off electricity at the fuse or circuit Operating Voltage: 120VAC, 60Hz breaker box.
-
Page 12: Control Installation
A t m o s p h e r i c 330 B A T H O L O G Y Control Installation Timer / Fan Wiring Hot (Black) Black White Green Line 120VAC Ground Black 60Hz Neutral (White) White Timer / Light / Fan Wiring Black Hot (Black) -
Page 13: Operation
A t m o s p h e r i c 330 B A T H O L O G Y Control Installation Important: It is recommended that all electrical equipment be tested prior to installation. Installation To change faceplate of electronic time control (1), push in the side of the faceplate at the tabs to release. - Page 14 A t m o s p h e r i c 330 B A T H O L O G Y Damper Specifications / Installation Specifications Installation Damper Expansion Vent Damper Dimensions: 6” Diameter x 6” Length Screw Damper Input to Label must Body Composition: 28 guage galvanized steel Expansion Vent Housing...
- Page 15 A t m o s p h e r i c 330 B A T H O L O G Y Roof Cap / Wall Vent Specifications and Installation Specifications Installation Roof Cap, 6” Roof Cap Composition: Galvanized Steel Rough-in Cutout: 6-1/8” Duct Connection: 6”...
- Page 16 A t m o s p h e r i c 330 B A T H O L O G Y Duct Specifications and Installation Specifications Installation Flex Duct, 6” Exhaust to Roof Cap or Wall Vent Dimensions: 6” Diameter x 25’ Length Insulation: Fiberglass 100 CFM Fan Outer Cover: Tri-directional, scrim reinforced grey polyester...
- Page 17 B A T H O L O G Y r e d i s c o v e r b a t h i n g Note: Wash with soap and warm water after www.Bathology.com 847-465-1070 handling. A division of Bathing Brands, Inc.
