  • Page 1 2021/3 SPC100 Speedometer Ver1.07...

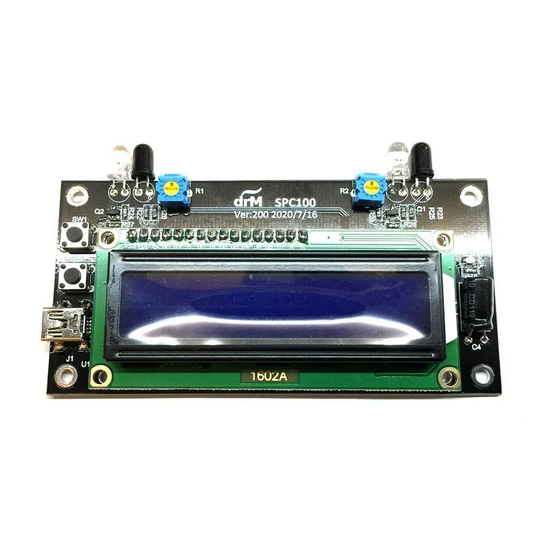

  • Page 2 2021/3 SPC100 Features 1. For N/HO/OO/O gauge 2. Power by Mini USB 5V 3. Large LCD display 4. Freely switch N/HO/OO/O gauge 5. Two detection modes, reflective and blocking. 6. Size 100mm x 50mm x 14mm Panel description SENSOR2 SENSOR1...
  • Page 3 2. The power 5V is plugged in by mini USB. 3. After turning on the power, the LED lights up and the LCD display “drM SPC100”. 4. After displaying for 3 seconds, the LCD will display the gauge menu N/O and HO/OO.
  • Page 4 1. The LCD displaying detect speed to press the Key1 button enter select gauge. Switch mode  1. The SPC100 has two detection modes (Reflection and Block). 2. The train body color is a bright color system using reflection mode. 3. The train body color is a dark color system using block mode.
  • Page 5 2021/3 Place the vehicle in front to measure the distance. Clockwise rotation detection is weak. Counterclockwise rotation detection is strong. Adjust VR until the LCD shows OK!!
  • Page 6 2021/3 Precautions Do not place any conductive materials (liquid, metal...) on the SPC100.  Do not remove or replace any components under the speedometer.  Keep out of the reach of children under 14 years of age.  The occurrence of the above situation will cause the speedometer to be damaged.
