skoopia 85Z18H Technical Manual

4k 18x optical zoom block camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

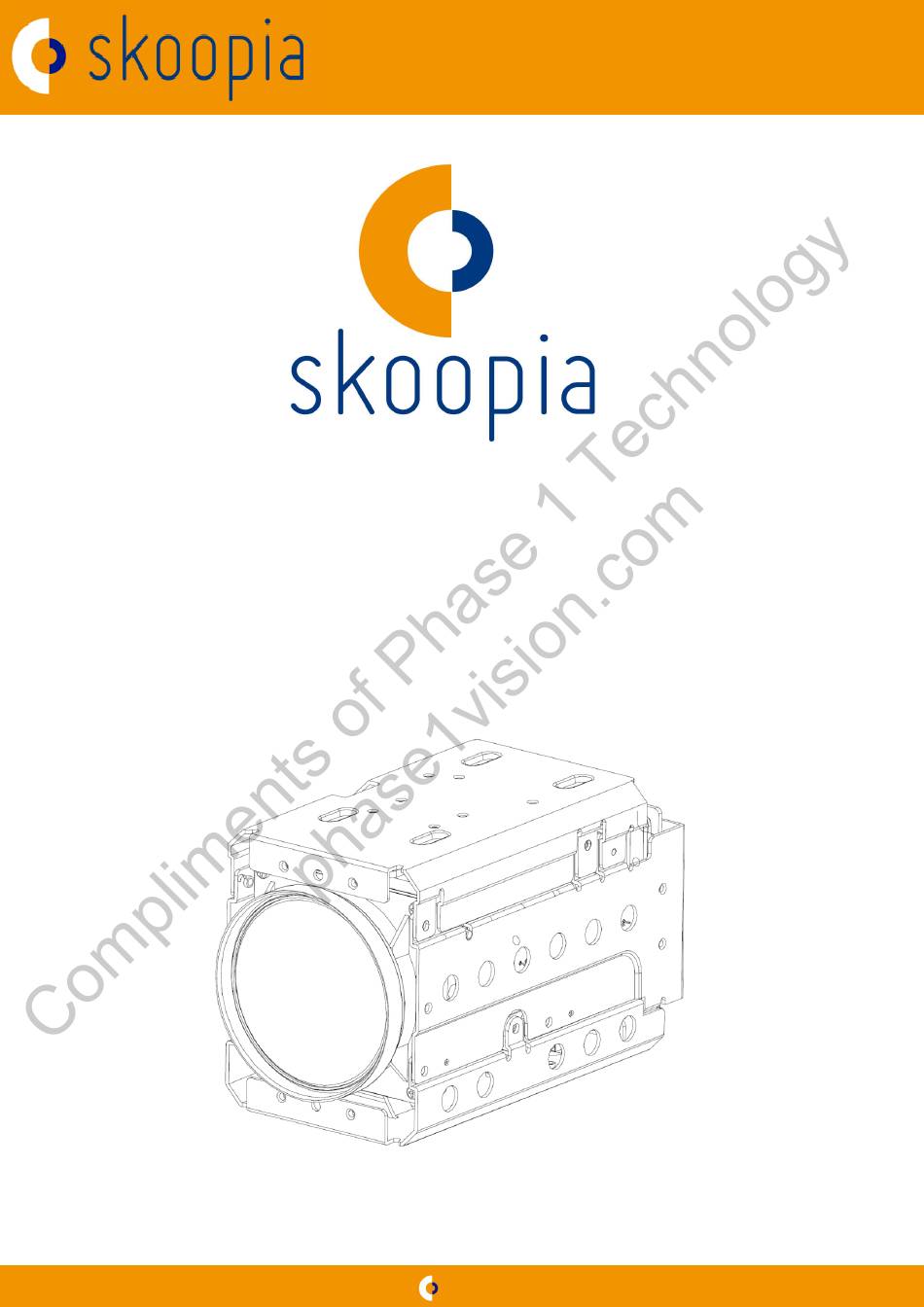

85Z18H
skoopia 85Z18H
4K 18x Optical Zoom Block Camera
Technical Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 85Z18H and is the answer not in the manual?

Questions and answers

Related Manuals for skoopia 85Z18H

Summary of Contents for skoopia 85Z18H

  • Page 1 85Z18H skoopia 85Z18H 4K 18x Optical Zoom Block Camera Technical Manual...
  • Page 2 85Z18H 4K 18x Zoom Block Camera Technical Manual Revision History Version Date Description Remarks 1.00 First Release CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. ACCESSORIES SOLD DEPARATELY. CONTACT QUALIFIED SERVICE PERSONNEL FOR INFORMATION ACCESSIBLE ACCESSORIES.

  • Page 3: Safety Instructions

    85Z18H 4K 18x Zoom Block Camera Technical Manual 1. SAFETY INSTRUCTIONS Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save this instructions for later use. Cleaning Unplug this appliance form wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

  • Page 4: Table Of Contents

    85Z18H 4K 18x Zoom Block Camera Technical Manual INDEX 1. SAFETY INSTRUCTIONS ........................3 2. PRECAUTIONS ............................ 3 3. FEATURES ............................5 4. SPECIFICATION ..........................6 5. OPERATING CAMERA .......................... 7 5.1. Camera OSD menu ........................7 5.2. WHITE BALANCE .........................

  • Page 5: Features

    85Z18H 4K 18x Zoom Block Camera Technical Manual 3. FEATURES  1/1.8 inch 4K CMOS image sensor (8.41 million effective pixels) Progressive scan  Video signals output HDMI : Digital YCbCr 4:2:2 8bits, RGB4:4:4 8bits QFHD : 3840x2160p@24/ 23.98/ 25/ 29.97/ 30 FHD : 1920x1080p@50/ 59.94/ 60...

  • Page 6: Specification

    85Z18H 4K 18x Zoom Block Camera Technical Manual 4. SPECIFICATION SPECIFICATIONS Image Sensor 1/1.8” 4K Progressive CMOS (8.41 mega) Scanning System 16:9 Progressive Sync. System Internal Sensor Effective Pixel 3840(H) x 2160(V) Min. Illumination T.B.D Horizontal Resolution T.B.D Lens 18x optical Zoom, F=6.8~120 mm, F1.61(Wide) ~ F4.13(Tele)

  • Page 7: Operating Camera

    85Z18H 4K 18x Zoom Block Camera Technical Manual 5. OPERATING CAMERA 5.1. Camera OSD menu WB CONTROL MODE AWB / ATW / PUSH / INDOOR / OUTDOOR / MANUAL PUSH 0 ~ 100 0 ~ 100 BLUE AE CONTROL MODE...
  • Page 8 85Z18H 4K 18x Zoom Block Camera Technical Manual LOCAL RATIO 0 ~ 16 SAT. SYNC OFF/ ON AUTO LEVEL LOW/ MID/ HIGH 0 ~ 16 DEFOG STRENGTH 0 ~ 3 THRESHOLD LOW/ MID/ HIGH AUTO LEVEL 0 ~ 20 IMAGE CONTROL...

  • Page 9: White Balance

    85Z18H 4K 18x Zoom Block Camera Technical Manual DEFECT PIXEL OFF/ON/STATI C/FIXED IMAGE STABILIZER OFF/ ON 1~255 SYSTEM SETUP RS232C CAM ID OFF/ON ID DISPLAY 2400/4800/9600/19200/38400/115200 BAUDRATE SAVE OUTPUT FORMAT 1080P60/50/30/25/ 1080I60/50 720P/60/50/30/25 VER. FACTORY / USER RESET MODE EXIT 5.2.

  • Page 10: Focus

    85Z18H 4K 18x Zoom Block Camera Technical Manual Auto – Shutter controls exposure automatically when iris is manual. Manual - Shutter is fixed, and gives the exposure control priority to other resources. IRIS : Auto - Iris controls exposure automatically, and shutter is fixed.

  • Page 11: Back Light

    85Z18H 4K 18x Zoom Block Camera Technical Manual 5.5. BACK LIGHT BACKLIGHT : When background is too bright behind the object, the BLC make clearer object. HLM - Highlight suppression reduce too bright light by masking it with specific color.

  • Page 12: System Setup

    85Z18H 4K 18x Zoom Block Camera Technical Manual Color Burst – Color burst off makes that the color burst is removed when ICR switches to black/white. DAY : The camera keeps color mode constantly. NIGHT : The camera keeps black/white mode constantly.

  • Page 13: Video Output

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6. Video Output 6.1. Video Mode Video output : 2160p - 4400x2250@30/29.97 fps, 5280x2250@25 fps 1080p - 2200x1125@30/60/29.97/59.94 fps, 2640x1125@25/50 fps 1080i - 2200x562(563)@60/59.94 fps, 2640x562(563)@50 fps 720p - 1650x750@60/59.94 fps, 1980x750@50 fps, 3300x750@30/29.97 fps, 3960x750@25 fps...

  • Page 14: Output Timing Chart(3840X2160P@30/29.97)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.2. Output Timing Chart(3840x2160p@30/29.97)

  • Page 15: Output Timing Chart(3840X2160P@25)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.3. Output Timing Chart(3840x2160p@25)

  • Page 16: Output Timing Chart(3840X2160P@24/ 23.98)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.4. Output Timing Chart(3840x2160p@24/ 23.98)

  • Page 17: Output Timing Chart(1920X1080P@30/60/29.97/59.94)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.5. Output Timing Chart(1920x1080p@30/60/29.97/59.94)

  • Page 18: Output Timing Chart(1920X1080P@25/50)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.6. Output Timing Chart(1920x1080p@25/50)

  • Page 19: Output Timing Chart(1920X1080P@24/23.98)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.7. Output Timing Chart(1920x1080p@24/23.98)

  • Page 20: Output Timing Chart(1920X1080I@60/59.94)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.8. Output Timing Chart(1920x1080i@60/59.94)

  • Page 21: Output Timing Chart(1920X1080I@50)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.9. Output Timing Chart(1920x1080i@50)

  • Page 22: Output Timing Chart(1280X720P@60/59.94)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.10. Output Timing Chart(1280x720p@60/59.94)

  • Page 23: Output Timing Chart(1280X720P@50)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.11. Output Timing Chart(1280x720p@50)

  • Page 24: Output Timing Chart(1280X720P@30/29.97/24)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.12. Output Timing Chart(1280x720p@30/29.97/24)

  • Page 25: Output Timing Chart(1280X720P@25)

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.13. Output Timing Chart(1280x720p@25)

  • Page 26: Video Data Start/Stop Format

    85Z18H 4K 18x Zoom Block Camera Technical Manual 6.14. Video Data Start/Stop Format EAV and SAV CODE (MSB) (LSB) Preamble Status word EAV and SAV Sequence The EAV and SAV sequences are shown in Table A. The status word is defined as: F = “0”...

  • Page 27: Camera Interface

    85Z18H 4K 18x Zoom Block Camera Technical Manual 7. Camera Interface 7.1. Camera Interface A connector : USL00-30L-C(KEL) Recommended cable ASSY : Cables - micro coaxial cable #42AWG Connectors - USL20-30S (KEL) camera A connector pin assignment (KEL USL00-30L) 16 N.C...

  • Page 28: Key Application Recommended Circuit

    85Z18H 4K 18x Zoom Block Camera Technical Manual 7.2. Key Application recommended circuit...

  • Page 29: Dimensions

    85Z18H 4K 18x Zoom Block Camera Technical Manual 8. Dimensions...
  • Page 30 85Z18H 4K 18x Zoom Block Camera Technical Manual 9. APPENDIX A VISCA Protocol 9600, 19200, 38400, 115200bps 8bit data 1stop bit none parity Command Packet (3~ 16bytes) Comments 8X: 0x80+Sender addr(H nibble)+Recv addr(L nibble) addr(1~7) Inquiry 8X QQ RR ... FF...
  • Page 31 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Packet Reply Packet IF_Clear 8X 01 00 01FF X0 50 FF IF_Clear 88 01 00 01 FF 88 01 00 01 FF (broadcast) Inquiry Packet Reply Packet CAM_VersionInq 8X 09 00 02 FF...
  • Page 32 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear 8x 2p FF p: Socket No. (=1 or 2)
  • Page 33 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_Focus Stop 8x 01 04 08 00 FF Far (Standard) 8x 01 04 08 02 FF Near (Standard) 8x 01 04 08 03 FF Far (Variable)
  • Page 34 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_WB Auto 8x 01 04 35 00 FF Normal Auto Indoor 8x 01 04 35 01 FF Indoor mode Outdoor 8x 01 04 35 02 FF...
  • Page 35 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_Gain Reset 8x 01 04 0C 00 FF Gain Setting 8x 01 04 0C 02 FF Down 8x 01 04 0C 03 FF Direct 8x 01 04 4C 00 00 0p 0q FF...
  • Page 36 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_HR 8x 01 04 52 02 FF High-Resolution Mode ON/OFF 8x 01 04 52 03 FF CAM_NR 8x 01 04 53 0p FF p: NR Setting (0:OFF 1:Low 2:Mid 3:High 4:Auto)
  • Page 37 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_Stabilizer 8x 01 04 34 02 FF Stabilizer ON/OFF/HOLD 8x 01 04 34 03 FF Hold 8x 01 04 34 00 FF CAM_Memory Reset 8x 01 04 3F 00 0p FF...
  • Page 38 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments 8x 01 04 75 02 FF Muting ON/OFF CAM_Mute 8x 01 04 75 03 FF On/Off 8x 01 04 75 10 FF mm: Mask Settings...
  • Page 39 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments CAM_MD 8x 01 04 1B 02 FF Motion Detection On/Off 8x 01 04 1B 03 FF Function Set 8x 01 04 1C 0m 0n 0p 0q 0r 0s...
  • Page 40 85Z18H 4K 18x Zoom Block Camera Technical Manual Command Set Command Set Command Packet Comments mm: First byte from the top threshold value nn: Second byte from the top threshold value pp: Third byte from the top threshold value qq: Color specification for high-intensity...
  • Page 41 85Z18H 4K 18x Zoom Block Camera Technical Manual Register Set Command Set Command Packet Comments 8x 01 04 24 00 00 0p FF p: 0-9600 1-19200 BaudRate 2-38400 3-115200 pp: 1-1080i@59.94 2-1080i@60 4-1080i@50 6-1080p@29.97 7-1080p@30 8-1080p@25 9-720p@59.94 A-720p@60 C-720p@50 E-720p@29.97...
  • Page 42 85Z18H 4K 18x Zoom Block Camera Technical Manual Register Set Command Set Command Packet Comments Key Input enable 8x 01 04 24 70 00 0p FF p: 0-Key input disable 1-enable Digital Output 8x 01 04 24 60 00 0p FF...
  • Page 43 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF...
  • Page 44 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto y0 50 03 FF Manual y0 50 0A FF Shutter Priority...
  • Page 45 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments CAM_DefogInq 8x 09 04 37 FF y0 50 02 0p FF On p: Defog level (0: auto, 1: low, 2: mid, 3: high)
  • Page 46 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments StabilizerModeInq 8x 09 04 34 FF y0 50 02 FF y0 50 03 FF y0 50 00 FF Hold TitleDisplayModeInq 8x 09 04 74 FF...
  • Page 47 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments MDFunctionInq 8x 09 04 1C FF y0 50 0m 0n 0p 0q 0r 0s FF m: Display mode 0-Off 1-On n: Detection Frame Set bit0-Frame0 bit1-Frame1...
  • Page 48 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command : Register Inquiry Command Command Packet Inquiry Packet Comments 8x 09 04 24 00 FF y0 50 00 0p FF p: 0-9600 1-19200 BaudRate 2-38400 3-115200 pp: 1-1080i@59.94 2-1080i@60 4-1080i@50 6-1080p@29.97...
  • Page 49 85Z18H 4K 18x Zoom Block Camera Technical Manual Inquiry Command : Register Inquiry Command Command Packet Inquiry Packet Comments Digital Output 8x 09 04 24 60 FF y0 50 00 0p FF p: 0-YUV 1-RGB Key Input enable 8x 09 04 24 70 FF...
  • Page 50 85Z18H 4K 18x Zoom Block Camera Technical Manual Block Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments pppp: Zoom position qq: Near limit 0-30Cm, 1-1M, 2-1.5M, 3-2M, 4-3M, 5-5M, 6- rrrr: Focus position hh: [5]DzoomMode 0-combine 1-seperate [4:3] 0-Nor 1-Interval 2-ztrg...
  • Page 51 85Z18H 4K 18x Zoom Block Camera Technical Manual Block Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments p: [3]Auto ICR alarm 0-off 1-on [2]Auto ICR 0-off 1-on [1]0 [0]power 0-off 1-on qq: [6]Stabilizer 0-off 1-on [5]Stabilizer Hold 0-off 1-Hold...
  • Page 52 85Z18H 4K 18x Zoom Block Camera Technical Manual Block Inquiry Command Inquiry Command Command Packet Inquiry Packet Comments pp: Dzoom position qq: AF activation time rr: AF Interval time s: SpotAE position X t: SpotAE position Y u: [2]MD 0-off 1-on...
  • Page 53 85Z18H 4K 18x Zoom Block Camera Technical Manual TABLE. Shutter Speed IRIS Value NTSC Value F no. 1/10000 (1/20000) 1/10000 (1/20000) F1.5 1/6000 (1/12000) 1/6000 (1/12000) 1/4000 (1/8000) 1/3500 (1/7000) F2.4 1/3000 (1/6000) 1/2500 (1/5000) F2.8 1/2000 (1/4000) 1/1750 (1/3500) F3.4...
  • Page 54 4K 18x Zoom Block Camera Technical Manual Gain Brightness Value Value IRIS GAIN +50 dB F1.6 +50 dB +47 dB F1.6 +47 dB +43 dB F1.6 +43 dB +40 dB F1.6 +40 dB +37 dB F1.6 +37 dB +33 dB F1.6 +33 dB +30 dB...
  • Page 55 4K 18x Zoom Block Camera Technical Manual Position Position Zoom Ratio Zoom Ratio Zoom Ratio Data Data Optical Zoom ×1 0000 ×11 38C8 ×2 1331 ×12 3A1F ×3 1E2D ×13 3B4E ×4 2508 ×14 3C56 ×5 29FC ×15 3D37 ×6 2D9F ×16 3DFD...
  • Page 56 4K 18x Zoom Block Camera Technical Manual Limit Setting Wide Limit Tele Limit Value x1.0...
  • Page 57 4K 18x Zoom Block Camera Technical Manual 10. APPENDIX B PELCO Protocol PELCO “D” Byte Format Command Message Command Data BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5 BYTE 6 BYTE 7 Zoom Tele 0xFF CamID 0x00 0x20 0x00 0x00 Checksum...
