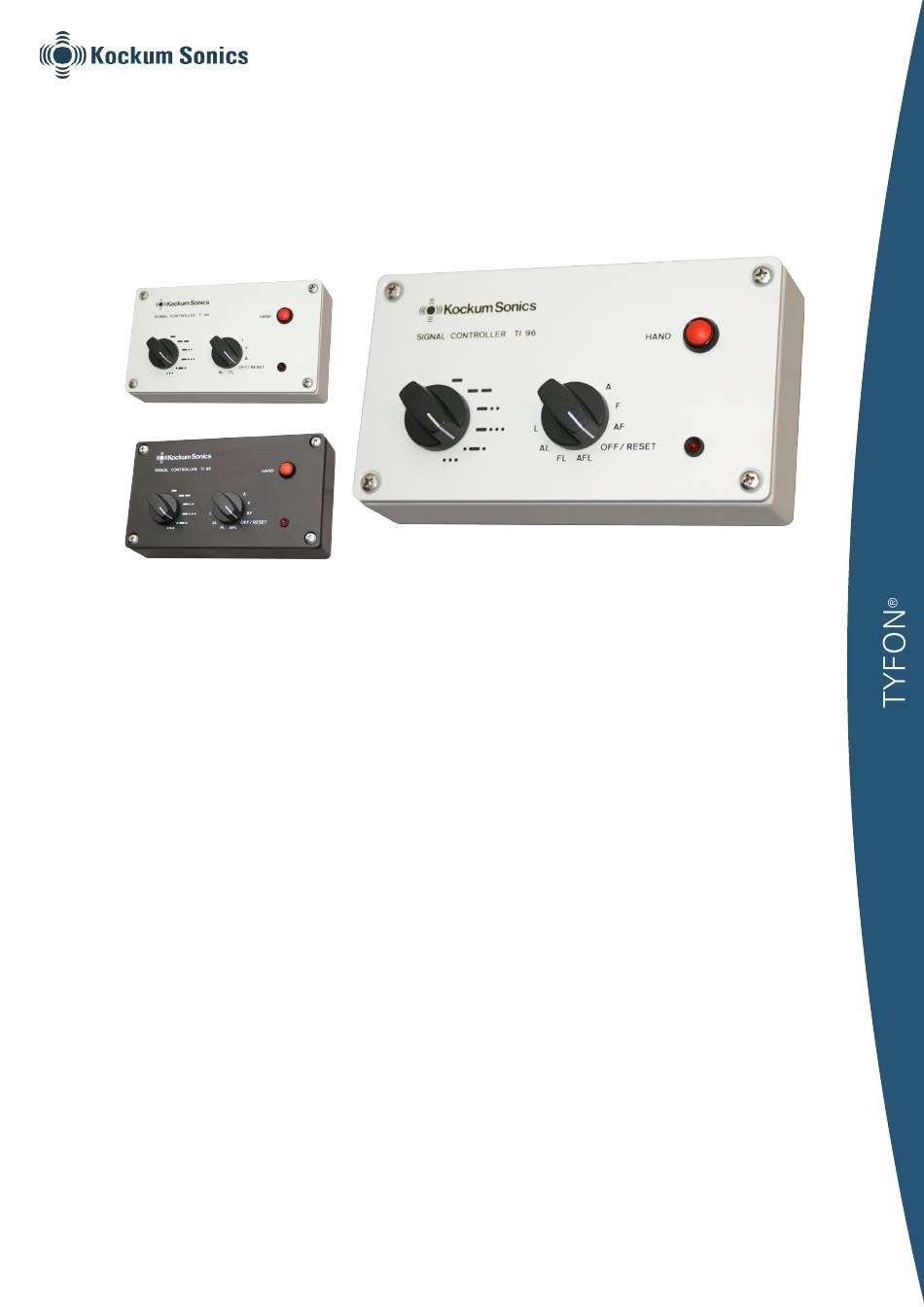

Kockum Sonics TI 96 Manual

Signal Controller TI 96
Automatic Signal Controller for whistle and lamp
Ref.nos. 24510106 / 07
(depending on period time)
Ref.no. 24510104
Signal Controller TI 96
Please use the following Ref. No. when ordering:
Ref.no. 24510102 90 sec./period time
Ref.no. 24510104 90 sec./period time
Ref.no. 24510106 90 sec./period time
Ref.no. 24510107 60 sec./period time

General Information

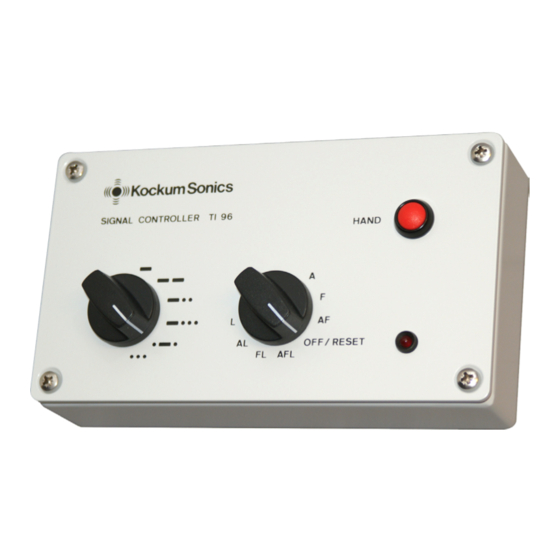

Signal Controller TI 96 is a robust, simple, inexpensive unit
which can be installed in all types of vessels. Two types are
available. One type for vessels with more than 100m between
whistles and one type for vessels with less than 100m between
whistles.
TI 96 can be controlled by external push–buttons (see wiring
diagram overleaf).
It must be noted that when the whistle is activated by the
external push–button, the automatics will stop. The external
push–button does not control the lamp output.

Automatic Signalling

The automatics have six signal characters.
All characters can be used for the whistles or the lamp or both
simultaneously.
The period time is always 90 seconds (optional 60 seconds).
The automatics start when the symbol switch is turned to the
required position even if the switch before starting is in the
OFF/RESET position or at another symbol.
The red LED lights steady, when unit in automatic operation.
When a push-button is activated the red LED on the front
starts to flicker, to give the operator the information that the
automatic is stopped.
Kockum Sonics AB
Fax: +46 (0) 40 21 65 13, e-mail: info@kockumsonics.com, www.kockumsonics.com
For installation on ships with less than 100m between the whistles (grey)
For installation on ships with less than 100m between the whistles (black)
For installation on ships with more than 100m between the whistles (grey)
For installation on ships with more than 100m between the whistles (grey)
The automatics switch off in OFF/RESET position.
It can also be switched off by pressing the push–button
HAND. The symbol switch should then be turned to the
OFF/RESET position.
The indicating LED extinguishes when the symbol switch
is in OFF/RESET position only indicating that the Signal
Controller is shut off.
It is also possible to change the symbol (whistle, lamp or
whistle plus lamp) during signalling by turning the symbol
switch direct to the required position. If the automatics have
been shut off via the hand push–button and the symbol
switch still being in the previous position, the automatics
can be re–started with the same symbol by turning the
switch to the nearest position and then quickly back to the
previous position.

Manual Signalling

The push–button HAND is for manual signalling. It shuts off
an "automatic" signal even during signalling. A mains failure
also shuts off the automatics.
The internal push-button control output as per symbol switch.
If the switch is in the position "OFF/RESET" then the HAND
push-button will activate the sound .
