Kockum Sonics TLG2000 Instruction Manual

Signal controller
Hide thumbs

Advertisement

Quick Links

Download this manual

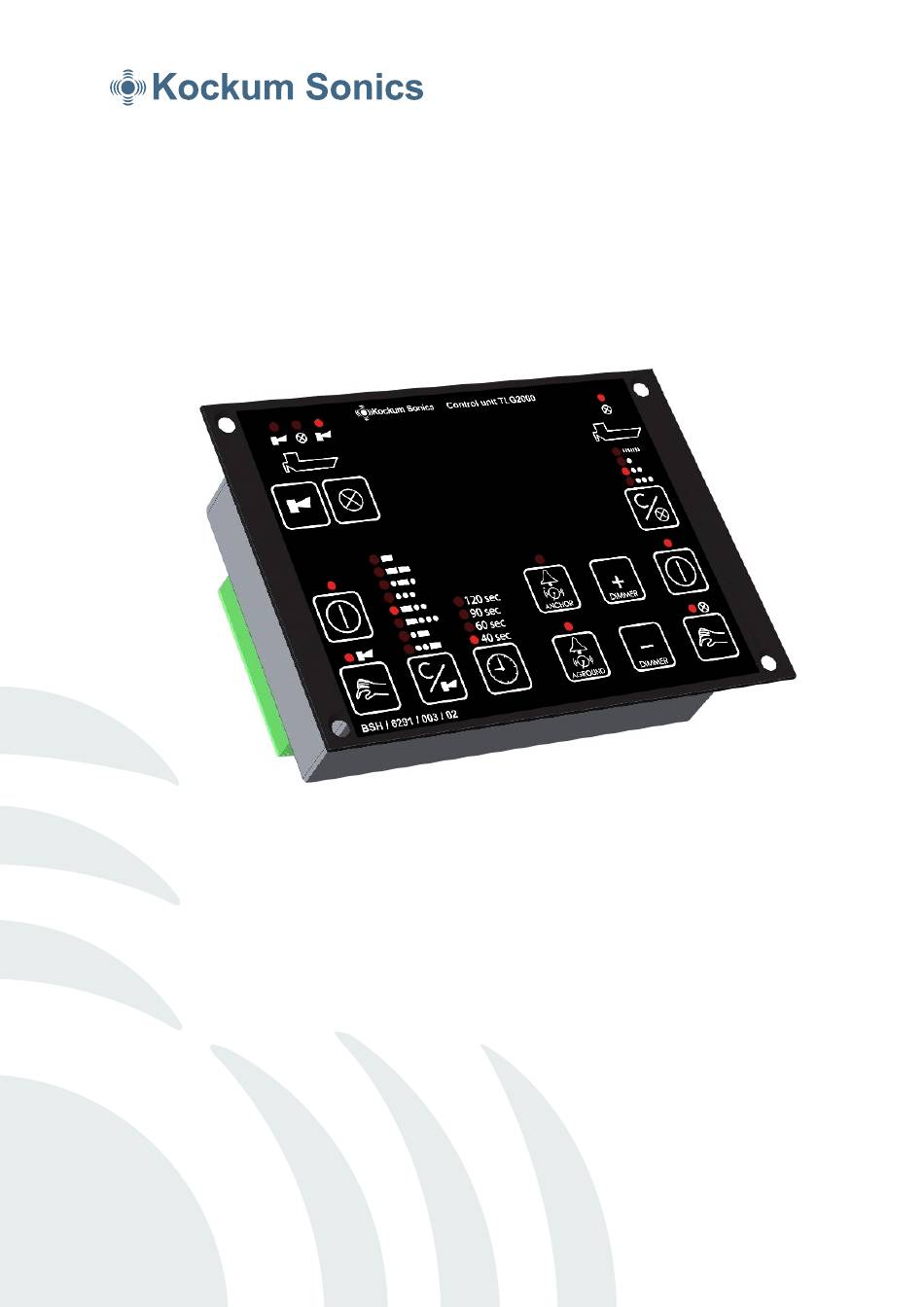

TLG2000
Signal Controller
Ref. no. 245.80.309
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLG2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Kockum Sonics TLG2000

Summary of Contents for Kockum Sonics TLG2000

  • Page 1 TLG2000 Signal Controller Ref. no. 245.80.309 Instruction Manual...
  • Page 2 TLG2000 Signal Controller Instruction Manual Table Of Contents General................................1 Technical.data..............................1 Dimensions ..............................1 Weight ................................1 Power source ..............................1 Power consumption ............................1 Operating ambient temperature range ......................1 Power source for valves, contactors and MORSE LIGHT ................1 Front panel protection class .......................... 1 Front panel colour ............................1 Hole cut in console ............................1 TYFON.signalling............................... 1 MORSE.LIGHT.signalling..........................1 BELL.and.GONG.signalling.
  • Page 3 TLG2000 Signal Controller Instruction Manual General TYFON signalling ® TLG 2000 is a multipurpose sound and MORSE Eight different signal characters can be given with LIGHT signal controller with a number of important variable interval. The signals are given as sound features: signals only or as combined sound and MORSE LIGHT signals. The eight standard characters are the • Possibility to configure for different vessel following according to Rule 35: needs.
  • Page 4 TLG2000 Signal Controller Instruction Manual Overview of the panel functions. Push button for manual TYFON MORSE LIGHT auto indicator. activation. This LED will lit when automatic Activates the selected TYFON. MORSE LIGHT activation is chosen. Push button for automatic MORSE TYFON active indicator. This LED will lit when the selected LIGHT activation. TYFON is activated. Push button for automatic MORSE LIGHT active indicator.
  • Page 5 TLG2000 Signal Controller Instruction Manual TYFON control section Selection of TYFON This section controls and generates eight With this push button selection of the desired predefined sound characters. TYFON can be done. Selectable functions within TYFON section: It will toggle between the three different modes • Manual TYFON activation (hand manoeuvre) available. • Start / Stop automatic TYFON activation • AFT TYFON • Selection of which TYFON to be used • FORE TYFON • Connect / Disconnect Lantern to TYFON • AFT & FORE TYFON signalling Indication of actual mode can be seen on the • Selection of four different auto repeat times TYFON indicators above the left ship symbol.
  • Page 6 TLG2000 Signal Controller Instruction Manual Example. Selections of auto repeat time. With this push button selection of auto repeat interval can be done. How do I change the auto repeat time? It will toggle between the four repeat intervals available. 1. Be sure to turn off the automatic TYFON • 120 seconds between characters activation by pressing the button. • 90 seconds between characters Wait until the automatic TYFON activation has • 60 seconds between characters finished. • 40 seconds between characters (use only for 2. Press the button until the desired repeat air driven whistle) time is chosen.
  • Page 7 TLG2000 Signal Controller Instruction Manual MORSE LIGHT control section. Selection of MORSE LIGHT character This section controls and generates four With this push button selection of MORSE LIGHT predefined MORSE LIGHT characters. character can be done. It will toggle between the four characters available. Selectable functions within MORSE LIGHT section: Attention Altering my course to starboard • Hand manoeuvre • Start/Stop automatic signalling Altering my course to port Operating astern propulsion • Four selectable MORSE LIGHT characters Selected character is displayed on the LED bar indi- Indicators: cator for MORSE LIGHT character. • Output to MORSE LIGHT • Automatic mode start/stop...
  • Page 8 TLG2000 Signal Controller Instruction Manual BELL and GONG control General Alarm (GEA) control This section controls and generates BELL This function has the highest priority of the con- and GONG signalling characters; Anchor and troller and all other functions will be disabled Aground. when “General Alarm” is activated. With this controller it is possible to generate two alarm characters: Selectable functions within section: •...
  • Page 9 TLG2000 Signal Controller Instruction Manual Configuration for different applications. In most cases the TLG2000 does not need to be configured and factory settings can be used. However, on some installations it is necessary to change the TLG2000 functionality. When powering up TLG2000 it is possible to enter a configurations mode. Four functions can be adjusted to suit the actual needs. A. Enable / disable the Fore TYFON indicator on the panel. If two whistles (fore and aft) are connected and the distance between them is more than 100 m it is not allowed to sound them simultaneously. See the manual for correct electrical connections. B. Enable / disable the BELL and GONG function or change the mode of operation. BELL and GONG function is enabled by default and is configured to operate an electro-mechanical B&G type KB30 and KG50. If B&G is not connected to the TLG2000, this function can be disabled and when pushing the button for B&G, respective LED will rapidly flash for 2 seconds to indicate that this function is not installed. C. Change the activation mode of the GEA & Abandon ship function. There are three methods of activating the GEA or Abandon ship signal by an external dry contact (closed when active) connected to the TLG2000. 8 - When active, the pre-programmed signal sequence is started. When not active, the sequence is stopped. 9 - Temporary (pulsed) action will start the pre-programmed signal sequence. One more pulse will stop the sequence. 10 - If an external signal pattern generator is connected, this mode should be used. D. Change respons time for external activation of morse light. Press B and C buttons simultaneously when powering up the unit. All LED’s will flash for 3 seconds. The actual configuration will be shown on the G group of LED’s (marked 1 to 12). Press E button (+ moves LED’s up, - moves down) to actual position of the G groups of LED’s. Check function value for chosen position on LED A LED off = function disabled LED on = function enabled Move the position of the lit LED to the corresponding function in the group with use of buttons E.
  • Page 10 Max 2.5mm Note! If special mechanical protection is needed or the possibility to mount the unit on the wall, an extra cover is available, ref. no. 21775055. This is mounted behind the console to protect the rear side of the TLG2000. See page 16 for details. Page 8 of 20...
  • Page 11 TLG2000 Signal Controller Instruction Manual Fault finding scheme Diagnos Possible cause Solution The unit is not working Fuse blown Check fuse F4 MORSE LIGHT section does not work Fuse blown Check fuse F3 - “ - Relay RE4 faulty Check relay RE4 TYFON section does not work Fuse blown Check fuse F1 - “ - Relay RE1, RE2 or RE3 faulty Check relay RE1, RE2 or RE3 BELL or GONG does not work Fuse blown Check fuse F2 - “ - Relay RE5 or RE6 faulty Check relay RE5 or RE6 External push button does not work Fault on external push button Check the external push button - “ - Fault on cable to external push button Check the cable to external push button Component...
  • Page 12 TLG2000 Signal Controller Instruction Manual Description of I/O Serial no. Software version. PE, ships GND Power supplyfor TLG2000 24V DC not used not used GEA active Tyfon Active, Yes Tyfon Active, No Output Gong Tyfon Active, Com Output Output Bell Fore Tyfon >100m...
  • Page 13 TLG2000 Signal Controller Instruction Manual General external wiring diagram for Signal Controller TLG 2000 Shows all possible electrical connections. For example of more specific applications, see page 12 to 15. Signal Controller TLG2000 Control Unit 24V DC power supply for...
  • Page 14 TLG2000 Signal Controller Instruction Manual Typical external wiring diagram for Signal Controller with connected units for (230V AC) For two TYFON whistles and MORSE LIGHT. > 100 m distance between whistles Signal Controller TLG2000 Control Unit AC/DC converter ref no. 20142028 see page 16 for details 230V AC for TLG2000 500mA...
  • Page 15 TLG2000 Signal Controller Instruction Manual Typical external wiring diagram for Signal Controller (115V AC system) For two TYFON whistles, MORSE LIGHT and BELL and GONG =< 100 m distance between whistles Signal Controller TLG2000 Control Unit AC/DC converter ref no. 20142028 see page 16 for details 115V AC for TLG2000 500mA electronics 500mA Output to GONG...
  • Page 16 Instruction Manual Typical external wiring diagram for Signal Controller (24V DC system) For one TYFON whistle, MORSE LIGHT, GEA function and electrical Bell&Gong BG 310 Signal Controller TLG2000 Control Unit 24V DC power supply for TLG2000, 500mA MORSE LIGHT and TYFON IMPORTANT! See page 8 for 500mA correct supply connection. GEA active*...
  • Page 17 For one ETD 100/350 electronic TYFON whistle with MTK 250 amplifier and a MORSE LIGHT Signal Controller TLG2000 Control Unit 24V DC power supply for 500mA TLG2000 and MORSE LIGHT IMPORTANT! See page 8 for 500mA correct supply connection. Note! The amplifier MTK 250 could also be connected as an Aft TYFON whistle and should in that case be connected to terminal 7 and 8.
  • Page 18 TLG2000 Signal Controller Instruction Manual Other related products from Kockum Sonics. MORSE LIGHT Key Push-button “Abandon Ship” “GEA” Switch Switch Switch TL - 70 for panel or box TL - 80GEA or T L - 85GEA (with m o u n t i n g . Box m o u n t -...
  • Page 19 TLG2000 Signal Controller Instruction Manual Page 17 of 20...
  • Page 20 TLG2000 Signal Controller Instruction Manual Page 18 of 20...
  • Page 21 TLG2000 Signal Controller Instruction Manual Page 19 of 20...
  • Page 22 TLG2000 Signal Controller Instruction Manual Page 20 of 20...
  • Page 23 TLG2000 Signal Controller Instruction Manual Notes.
  • Page 24 ® ® HEAD OFFICE Kockum Sonics AB Industrigatan 39, P .O. Box 1035, SE-212 10 Malmö, Sweden Tel: +46(0)40-671 88 00 Fax: +46(0)40-21 65 13 E-mail: info@kockumsonics.com Internet: www.kockumation.com with affiliated companies in . . . CHINA Kockum Sonics Room 1912, No. 15 Lane 201 JinXiang Road Pudong New District Shanghai 201206, CHINA Tel: +86 (21) 5885 2729, 5860 3661 Fax: +86 (21) 6853 84 00 RUSSIA Kockum Sonics 14, Obvodny Kanal, RU-192019, St. Petersburg, Russia Tel: +7 (8) 812 567 70 04 Fax: +7 (8) 812 567 70 04 UNITED KINGDOM Kockum Sonics (UK) Ltd. Unit 7 , Leighton Industrial Park, Billington Road Leighton Buzzard BEDS LU7 8YL, United Kingdom Tel: +44(0)1525 85 23 23 Fax: +44(0)1525 85 35 05 Kockum Sonics, a company...
