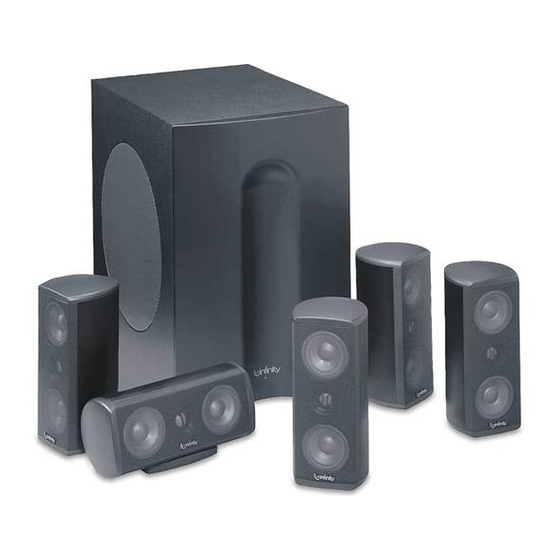

- Page 1 OTAL PEAKER OLUTIONS TSS-1100 Owner’s Guide (120V)
-
Page 2: Safety Precautions
MPORTANT AFETY RECAUTIONS Read First! CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. CAUTION: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to... - Page 3 TSS-1100 O WNER ’ S UIDE Table of Contents Important Safety Precautions Introduction Planning Your System Placement Wall-Mounting the Satellites Center and Satellite Speaker Connections Subwoofer Controls Subwoofer Connections Operation Maintenance and Service Specifications TSS-1100...
-
Page 4: Planning Your System
NTRODUCTION Infinity Total Solutions ™ Infinity Total Solutions continues Infinity’s longstanding commitment to accurate sound reproduction. Our proprietary Metal Matrix Diaphragm (MMD ™ ) drivers, precision dividing networks and rigid, well-braced enclosures combine to deliver uncompromised performance in any stereo or multichannel home theater system. In addition, these speakers, except for the powered subwoofer, are magnetically shielded for safe placement adjacent to a television. -
Page 5: Wall -Mounting The Satellites
Should you have questions relating to installation, it is advisable to call either your dealer or Infinity’s Customer Service Department for advice. The performance of the subwoofer is directly related to its placement in the listening room and how you align the subwoofer with the satellite speakers. -
Page 6: Satellite Speaker Connections
ENTER AND ATELLITE Turn Off All Power After placing the speakers, you are ready to connect your system. First, turn off all audio-system power. Use high-quality speaker wire to make your connections. #18-Gauge speaker wire with polarity coding is included. For longer distances, #16-gauge or heavier wire is recommended.The side of the wire with a ridge or other coding is usually considered positive polarity (i.e., +). - Page 7 UBWOOFER ONTROLS Rear Panel ¡ LEVEL NORMAL ™ £ PHASE 0˚ 180˚ CROSSOVER FREQUENCY ¢ 50Hz 150Hz ∞ LINE LEVEL IN For LFE use L or R § POWER ® SUB1100 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN NRTL/C WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CSA22.2 DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 8 UBWOOFER ONNECTIONS If you have a Dolby* Digital or DTS processor with a low-frequency-effects (LFE) or subwoofer output: SUBWOOFER OR LFE OUTPUT LEVEL subwoofer cable PHASE 0º included 80Hz CROSSOVER FREQUENCY 50Hz LINE LEVEL IN For LFE use L or R Set line-level/LFE switch to “LFE.”...
-
Page 9: Operation
If the problem appears in the opposite speaker, the cause is in another component or cable. In the event that your TSS-1100 ever needs service, contact your local Infinity dealer or Infinity directly at 516.674.4INF (USA only) or www.infinitysystems.com for a service center near you. -
Page 10: Specifications
Dimensions (H x W x D): Weight: Infinity continually strives to update and improve existing products, as well as create new ones.The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. TSS-1100... - Page 11 OTES TSS-1100...
- Page 12 Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4INF www.infinitysystems.com * Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc. Infinity is a registered trademark, and Metal Matrix Diaphragm and MMD are trademarks, of Harman International Industries, Incorporated.
