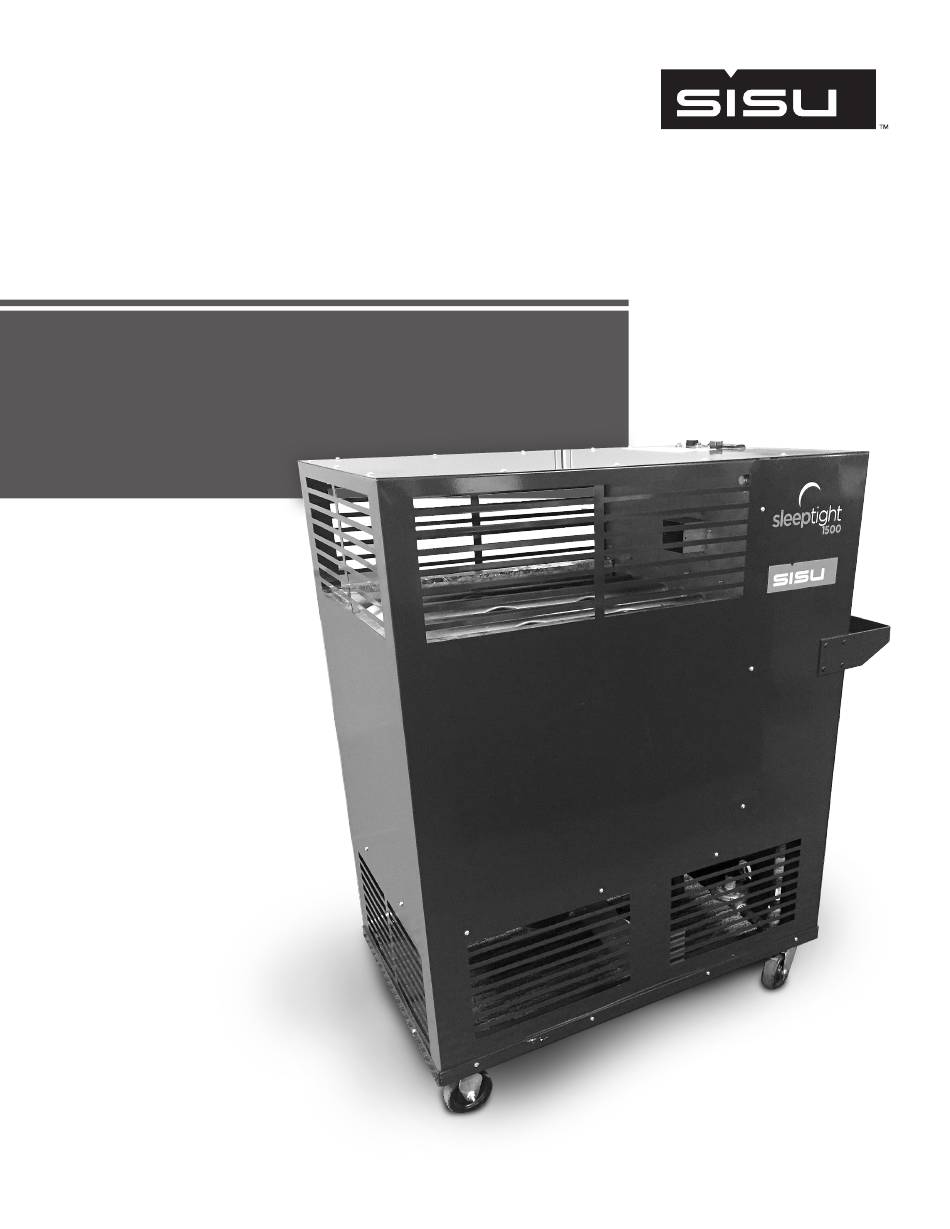

- Page 1 Commercial Products, LLC Sleeptight 1500 OWNER’S MANUAL AND INSTRUCTIONS Sisu Commercial Products, LLC Rev A – Jan 18, 2017...
- Page 2 Sisu Commercial Products, LLC has a continuous product improvement program; it reserves the right to change design and specifications without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Hazard Summary ................4 System Description ................5 Specifications ..................5 System Components ..............7 Fresh Air Fan Module and Clamps ..........7 LP Gas Hose Assembly ..............7 3-way LP Tank Manifold ...............6 Usage Instructions ..............7-11 Wiring Diagram ................12 Gas Train and Electrical Components ........ - Page 4 GENERAL HAZARD WARNING: WARNING: Failure to comply with the precautions and Fire, burn, inhalation, and explosion instructions provided with this heater can hazard. Keep solid combustibles, such as result in death, serious bodily injury and building materials, paper, or cardboard, property loss or damage from hazards of a safe distance away from the heater as fire, explosion, burn, asphyxiation, carbon...
-
Page 5: Hazard Summary
HAZARD SUMMARY Hazard Identification – Warnings, Cautions and Notices appear in appropriate sections throughout this Owner’s Manual. Read these carefully! WARNING - Indicates a potentially hazardous situation which could result in death or serious injury. CAUTION - Indicates a potentially hazardous situation which may result in minor or moderate injury. -
Page 6: System Description
SYSTEM DESCRIPTION The Sleeptight 1500, patent pending, is designed for indoor use only. It is intended for use in providing portable, temporary heat to buildings under construction, alteration or repair. Adequate ventilation must be provided while heater is operating. Combustible solids, such as building materials, paper or cardboard must be kept a minimum of 24 inches from the front, sides and top of the heater, 6 inches from the back, and 0 inches from the bottom. -
Page 7: System Components
SYSTEM COMPONENTS Heater unit Fresh Air Fan Module and Clamps 50’ LP Gas Hose Assembly 3-way LP Tank Manifold... -
Page 8: Usage Instructions
USAGE INSTRUCTIONS Visual Inspection and Placement a. Check for any physical damage from shipping, storage, or installation that could render heater unsafe or inoperable. b. Locate heater on level ground near the target area and observe and obey all minimum safe distances of the heater to the nearest combustible materials. - Page 9 USAGE INSTRUCTIONS WARNING: Fresh air fan module must be installed to supply a continuous stream of fresh ventilation air into the area being heated at all times during heater operation. Failure to comply can result in death or serious bodily injury from hazards of asphyxiation or carbon monoxide poisoning.
- Page 10 USAGE INSTRUCTIONS WARNING: The tank manifold/regulator assembly and gas hose assembly must be visually inspected prior to each use of the heater. If there is evidence of excessive abrasion or wear, or any hose is cut, it must be replaced prior to the heater being put into operation. WARNING: The heater must be located at least 10 feet from any propane gas container.
- Page 11 USAGE INSTRUCTIONS Heater Start-Up a. Turn the fresh air fan module’s POWER switch to the “ON” position. The fresh air fans will begin to run. b. Turn the heater POWER switch to the “ON” position and the circulating fan will begin to run. The CO monitor will begin its initialization cycle and the alarm will sound for several minutes until the system is operational.
- Page 12 USAGE INSTRUCTIONS Heater Shut-Down a. Close the LP cylinder valve(s) and allow the heater to burn off any fuel gas remaining in the gas supply hose. b. Turn the BURNER ENABLE switch to the “OFF” position. c. Allow the heater circulating fan to continue to run for several minutes to cool the heater. d.
-
Page 13: Wiring Diagram
WIRING DIAGRAM... - Page 14 GAS TRAIN COMPONENTS (Number reference for replacement part section)
- Page 15 CONTROLS COMPONENTS (Number reference for replacement part section) Operator Interface (Top of Heater) Control Panel EQUIPMENT LOCATION DIAGRAM COMMERCIAL PRODUCTS EQUIPMENT LOCATION DIAGRAM COMMERCIAL PRODUCTS...
- Page 16 REPLACEMENT PARTS Item Location Description Part Number Gas Train Gas Shut Off Valve 19-001 Gas Train Appliance Regulator 19-002 Gas Train Male Quick Connect - 1/2” NPT 19-005 Operator Interface CO Alarm Buzzer/Lamp 21-001 Operator Interface Digital Thermostat 21-002 Operator Interface Power Switch 21-003 Operator Interface...
-
Page 17: Maintenance Instructions
MAINTENANCE INSTRUCTIONS An annual inspection of the heater by qualified service personnel is recommended to check for proper operation and to look for damage or degradation of any component. Any damaged or deteriorated parts should be replaced before the unit is put back into service. 1. - Page 18 TROUBLESHOOTING Sequence of Operation 1. Power on the Fresh Air Fan Module. Fresh air fans run. 2. Power on the heater unit. Circulating fan runs. 3. Press the RESET button and turn on BURNER ENABLE switch on the heater unit. 4.
- Page 19 ...
- Page 20 Commercial Products, LLC 5801 E. 41st St., Ste. 1005 Tulsa, OK 74135 www.sisu-ee.com...
