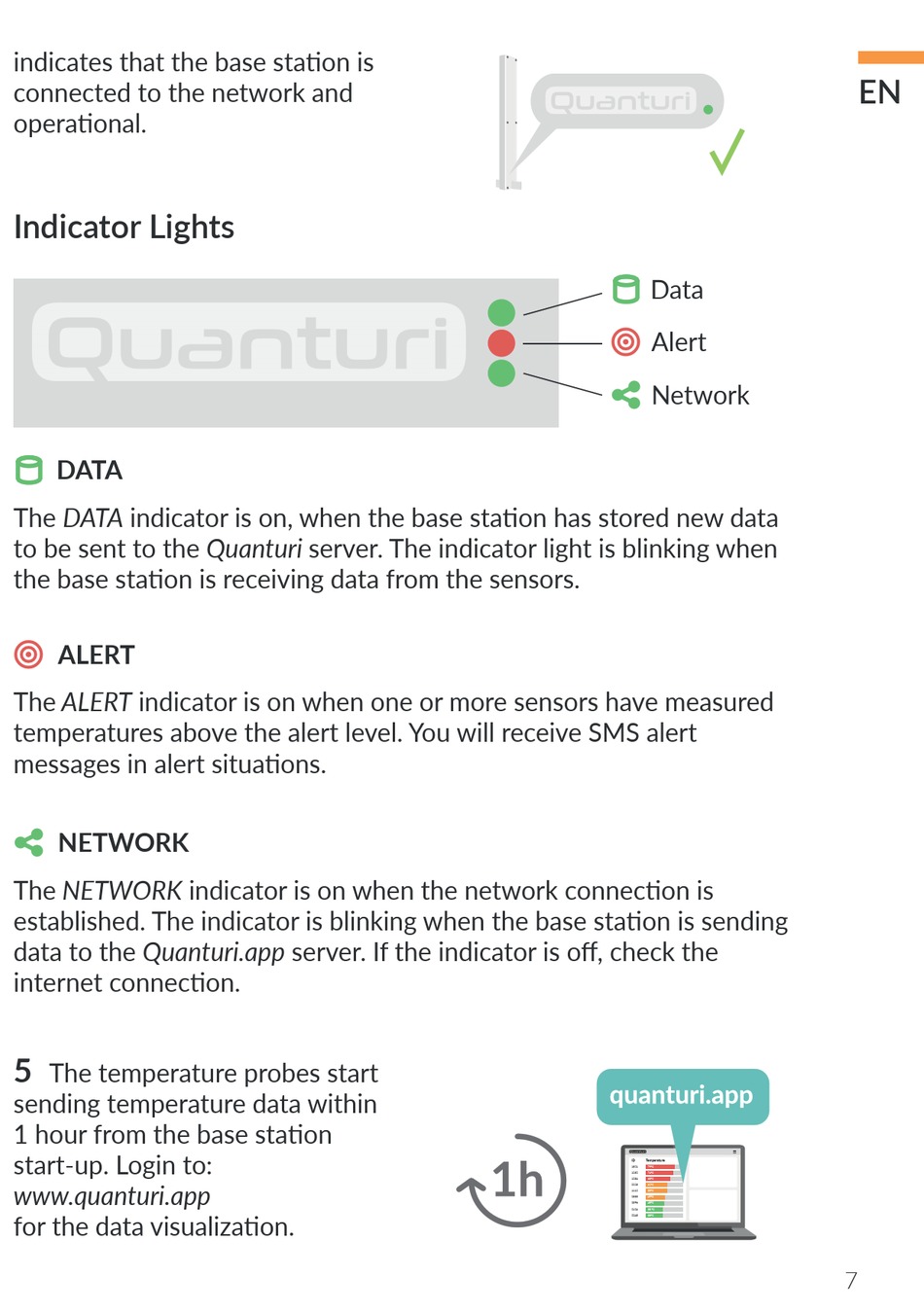

Quanturi HAYTECH User Manual page 7

indicates that the base station is
connected to the network and
operational.
Indicator Lights
AC
APTER
5V
DATA
The DATA indicator is on, when the base station has stored new data
to be sent to the Quanturi server. The indicator light is blinking when
the base station is receiving data from the sensors.
ALERT
The ALERT indicator is on when one or more sensors have measured
temperatures above the alert level. You will receive SMS alert
NETWORK
messages in alert situations.
AC
220V
ADAPTER
5V
NETWORK
The NETWORK indicator is on when the network connection is
established. The indicator is blinking when the base station is sending
data to the Quanturi.app server. If the indicator is off, check the
internet connection.
2 m
5
The temperature probes start
sending temperature data within
1 hour from the base station
start-up. Login to:
www.quanturi.app
for the data visualization.
